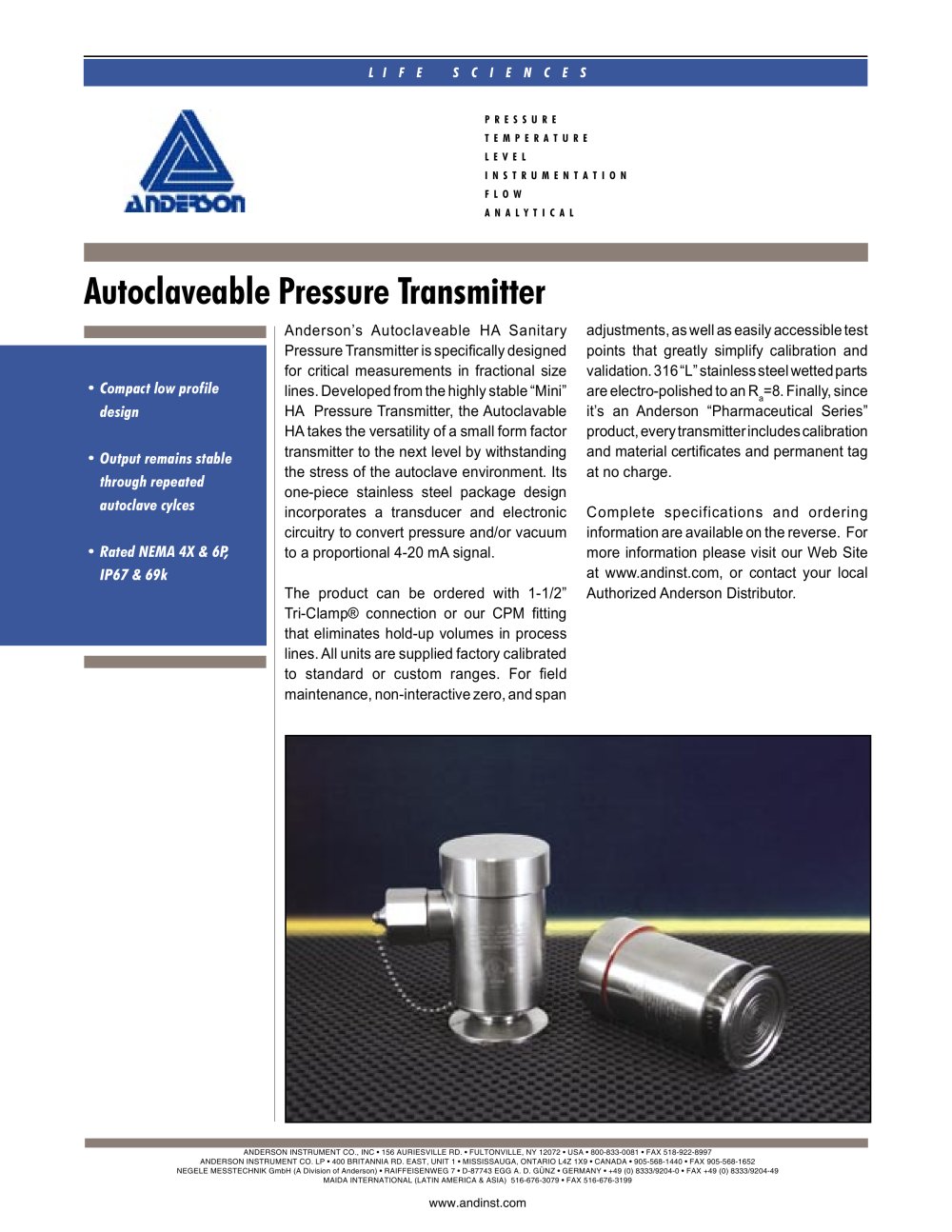

Overview: The Anderson Autoclaveable HA Sanitary Pressure Transmitter is engineered for precise measurements in fractional size lines, particularly in environments requiring autoclave compatibility. It is derived from the stable 'Mini' HA Pressure Transmitter and is designed to withstand autoclave conditions while maintaining a compact form factor.

Design and Features: The transmitter features a one-piece stainless steel design that integrates a transducer and electronic circuitry to convert pressure or vacuum into a 4-20 mA signal. It is available with a 1-1/2” Tri-Clamp® connection or a CPM fitting to minimize hold-up volumes. The device is factory calibrated and includes non-interactive zero and span adjustments for field maintenance. Wetted parts are made from 316L stainless steel, electro-polished to an Ra=8 finish.

Specifications:

• Housing: 304 stainless steel
• Output: 4-20 mA DC, 2-wire
• Accuracy: ±0.4% of full scale
• Repeatability: ±0.2% of full scale
• Hysteresis: ±0.10% of full scale
• Linearity: ±0.10% of full scale
• Stability: ±0.15% of calibrated range for 6 months or 30 autoclave cycles
• Temperature Limits: Process (-1°C to 149°C), Ambient (-18°C to 49°C), Storage (-40°C to 65°C)
• Max. Autoclave Temperature: 124°C for 1 hour
• Electrical Ratings: Intrinsically safe for Class 1, Div. 1, Groups A-D; CE Compliant
• Standards: NEMA 4X & 6P, IP67 & 69k, CSA B51-03

Ordering Information: The product can be customized with various ranges, fittings, cable lengths, and finishes. It supports multiple engineering units such as PSIG, BAR, and Vacuum/Pressure.

Applications: This transmitter is suitable for pharmaceutical and other sanitary applications where autoclave sterilization is required.
