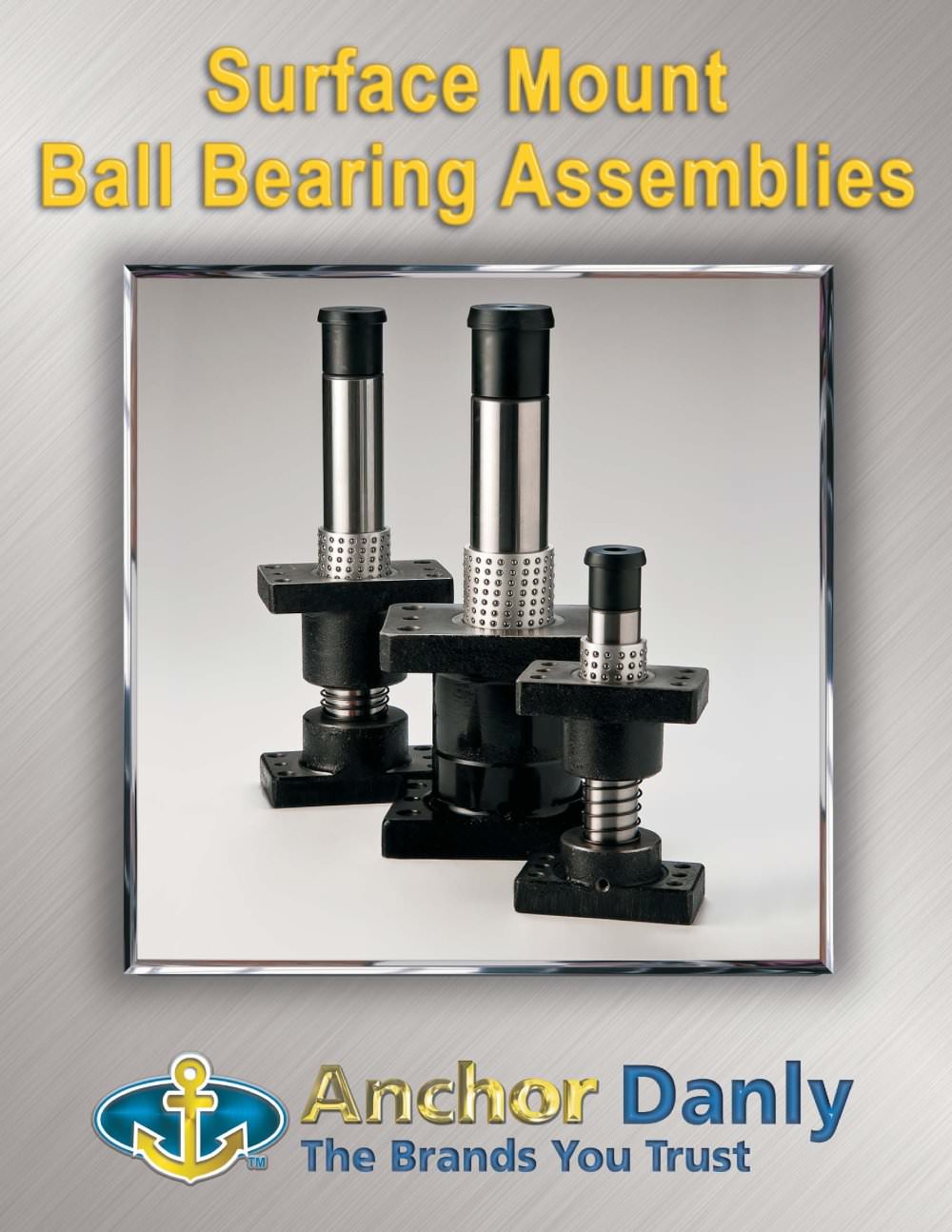

Surface Mount Ball Bearing Assemblies

Product catalog summary

Overview: This document provides technical specifications and guidelines for the assembly and selection of Surface Mount Ball Bearing Guide Post Assemblies by Anchor Danly. It includes details on part numbers, dimensions, and installation instructions.

Specifications:

Assemblies come with mounting bolts and dowel pins.
Optional mounting holes for stroke end blocks can be designated by adding 'M' to the part number.
Dimensions for tapping for fixing stroke end blocks are provided in a table format.

Selection Guide:

Ensure the preloaded ball bearing engagement length at the bottom of the press stroke is equal to or greater than the guide post diameter for stability.
Formula for calculating h2: h2 = L + C + E + 10mm, where 10mm accounts for regrinding and safety.
Minimum punch holder thickness (K) is determined by subtracting the die height (h) from h2.
Guidance on selecting guide post length to maximize contact length (PL).

Effective Fitting Range:

Tables provide post size, die height, and corresponding h2 values for different configurations.
Figures illustrate upper and lower contact limits and ideal preload conditions.

Stroke End Blocks:

Details on flat type and nesting step type stroke end blocks, including dimensions and part numbers.
Specifications for bolt sizes and allowances for grinding and safety considerations.

Contact Information:

Contact details for Anchor Danly and associated companies in various locations across North America.

Catalog excerpts

3 Selection Guide for Anchor Danly Surface Mount Guide Post System The following points should be considered when selecting Surface Mounted Ball Bearing Assemblies: At the bottom of the press stroke (BDC), the length of the preloaded ball bearing engagement should be equal to or greater than the guide post diameter (D) for proper guidance and stability (Fig. 6). h2 = L + C + E + 10mm (Fig 1) – 10mm is to allow for regrinding and safety considerations. For C + E, see Page 2. How to determine K (minimum Punch Holder thickness): Reference (Fig. 1) and the blue chart (Page 4). Example: If h = 190mm...
