Round Mold Products

Product catalog summary

Introduction
Lamina, founded in 1938, has evolved from a lamination die manufacturer to a supplier of die and mold components, focusing on delivering quality products quickly and at competitive prices to minimize customer downtime.

Product Overview
The catalog includes a variety of mold bushings and steel pins, such as bronze-plated, hardened steel, and self-lubricating bronze options, designed to boost productivity by reducing downtime.

Bore Sizes
Detailed specifications for bore sizes in both inch and metric bushings are provided to ensure precise fitting for different applications.

Product Categories

Shoulder Bushings: Available in bronze-plated (inch and metric), hardened steel, self-lubricating, and solid bronze.
Straight Bushings: Offered in bronze-plated, hardened steel, self-lubricating, and solid bronze.
Ejector Bushings: Includes bronze-plated (inch and metric) and self-lubricating options.
Leader Pins: Available in both inch and metric sizes.

Technical Specifications
Each product category includes detailed specifications such as nominal inside diameter, bore limits, and general dimensions. The catalog highlights the benefits of different materials, like the lubricity of bronze and the strength of steel.

Key Features
Products such as Lamina-Bronze bushings feature oil grooves for enhanced lubrication, while self-lubricating bushings use oil-impregnated graphite plugs to reduce wear and maintenance.

Conclusion
Lamina aims to be a comprehensive supplier for mold components, offering a wide range of products with detailed specifications to meet the diverse needs of die and mold makers.

Ejector Bushings – Self Lubricating – Metric
These bushings feature oil-impregnated graphite plugs covering 20-30% of the wear surface, providing a self-lubricating film. They offer consistent quality control, resist abrasion, and have excellent wear characteristics. Key dimensions include nominal inner diameter (I.D.), outer diameters (D1, D2, D3, D4), and lengths (L1, L2, L3).

Ejector Bushings – Solid Bronze – Inch
These bushings have a lubrication ring with a lubrication hole and are designed for press-fit diameter ground to size. They are suitable for ejector plate removal and accommodate expansion with oversized I.D. Key dimensions include nominal I.D., outer diameters (D1, D2, D3, D4), and lengths (L1, L3, L5).

Leader Pins – Inch and Metric
Leader pins are precision-ground steel components available in both inch and metric sizes. They are not all ground on centers, ensuring high precision and quality. Dimensions include nominal pin diameter, outer diameters (D1, D2, D3), and lengths (L1, L2, L3).

Conversion Tables
Conversion tables are provided for converting inches to millimeters and vice versa, with specific values for fractional and decimal inch measurements.

Product and Service Offerings
The document lists various products and services offered by Anchor Lamina, including die sets, guide elements, wear products, springs, cams, mold components, and custom fabrications. The company emphasizes its commitment to quality and customer satisfaction, aiming to be a world-class supplier in the metal-working and plastics forming industry.

Contact Information
Contact details for Anchor Lamina and its various locations in North America and Germany are provided, along with a commitment to quality and customer satisfaction.

Catalog excerpts

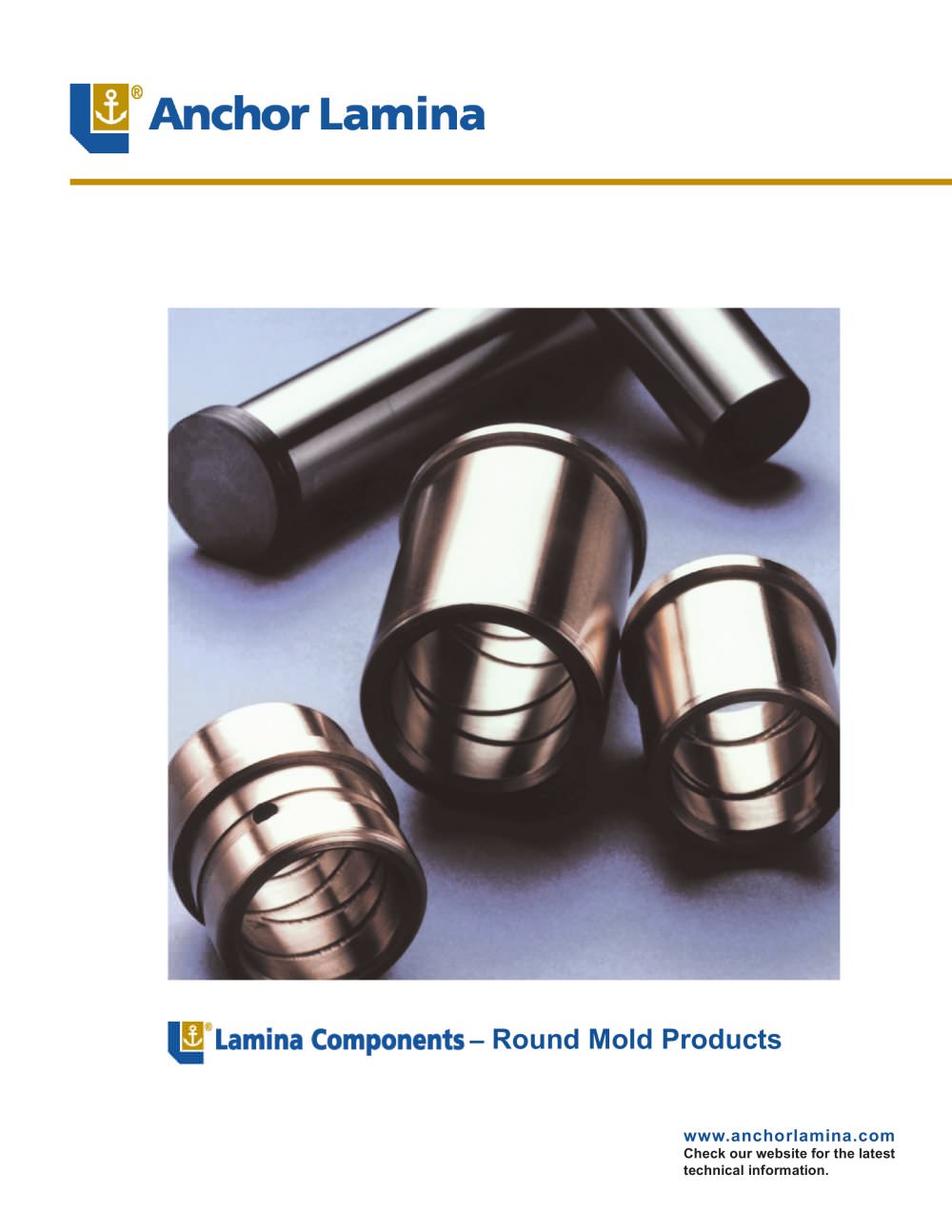

– Round Mold Products www.anchorlamina.com Check our website for the latest technical information.

Open the catalog to page 1

15 PLAIN BEARING DIE SETS BALL-BEARING DIE SETS CAST DIE SETS EJECTOR BOXES PLATES 1020, 1045 & 4140 Adaptor Plates Bolster Plates Steel cut & ground SERVICES CNC Machining Blanchard Grinding Stress Relieving Die Set Repair KALLER® GAS SPRINGS ACCU-BEND™ IN-DIE TAPPING Mechanical Hydraulic GUIDE ELEMENTS BUSHINGS Ball-Bearing Stripper Bronze Plated Self-Lubricating GUIDE POSTS Plain Bearing Ball-Bearing Stripper WEAR PRODUCTS Center Keys & Guides Gibs Guide & Keeper Blocks U & V Blocks Wear Plates & Strips SPOOL-TYPE PAD RETAINERS ROUND & FLAT SPECIALS SPRINGS DIEMAX™ L INCH SERIES UTILITY MARSH...

Open the catalog to page 15

Committed to Quality & Customer Satisfaction Anchor Lamina is committed to be the “customer focused” world-class supplier of choice to the metal-working and plastics forming industry. We will help our customers to compete globally by providing innovative and value added products and services. Distributed by: Lamina Components 38505 Country Club Drive, Suite 100 Farmington Hills, MI USA 48331 Tel: 248-489-9122, 800-652-6462 Fax: 248-553-6842, 800-406-4410 E-Mail: [email protected] www.anchorlamina.com 012-1 12/08
