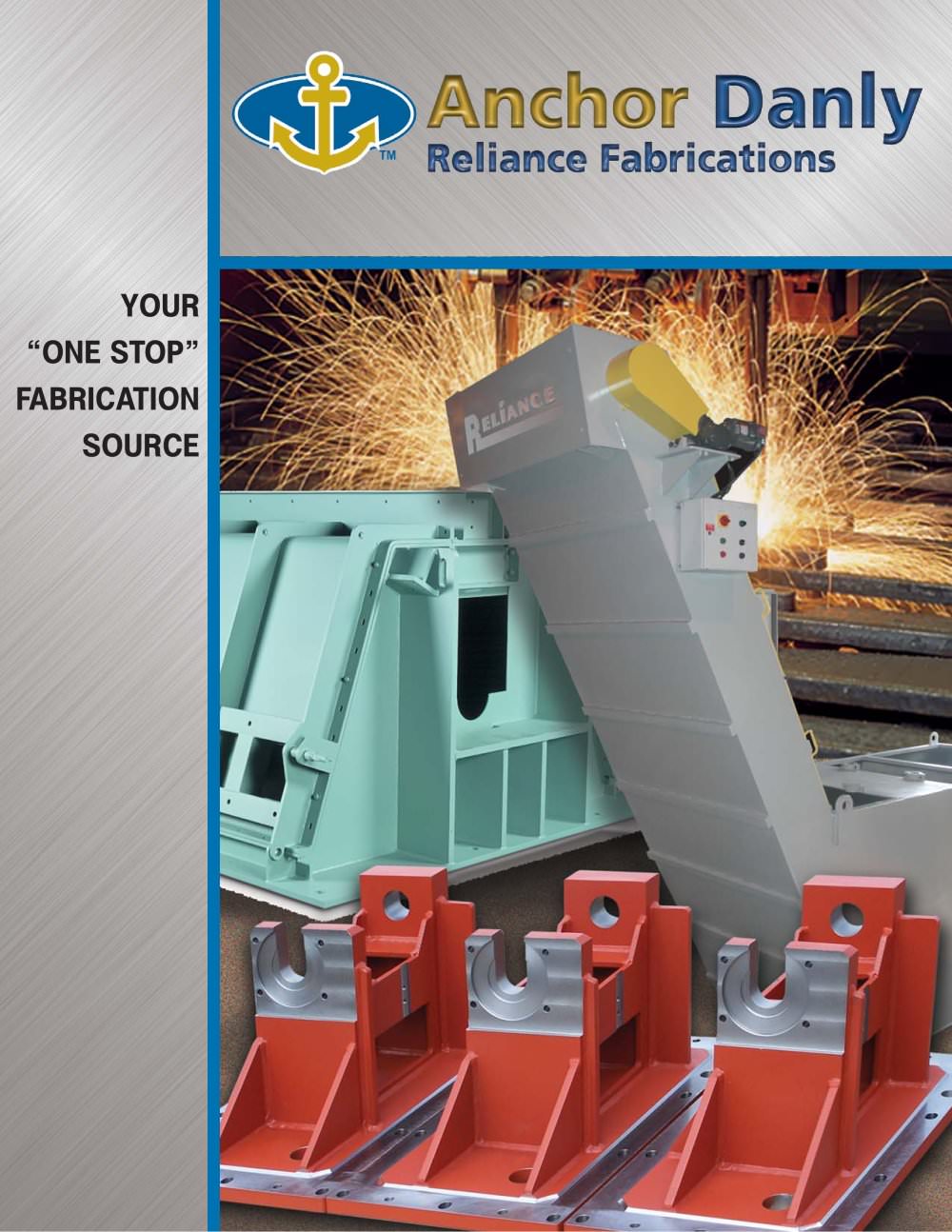

YOUR “ONE STOP” FABRICATION SOURCE
Open the catalog to page 1YOUR RELIABLE “ONE STOP” FABRICATION SOURCE! Our main fabrications facility is a modern full service metal fabrication shop committed to quality and customer service. We specialize in the manufacturing of large custom steel plate and structural steel fabrications. Established in 1956, Reliance Fabrications is located in Tilbury, Ontario, occupies 38,000 sq. ft. of manufacturing space and is ISO 9001, ISO 14001 and CWB certifi ed. Additional welding and fabricating capacity has been added at two of our other locations for your convenience and continued growth: Windsor, Ontario, Canada Grand...
Open the catalog to page 2ANCHOR DANLY’S ABILITY TO MANUFACTURE ANYTHING FROM SINGLE COMPLEX CUSTOM FABRICATIONS TO MULTIPLE PART PROJECTS, HAS ALLOWED US TO SUCCESSFULLY PARTNER WITH CUSTOMERS IN THE FOLLOWING INDUSTRIES: RELIANCE FABRICATIONS IS COMMITTED TO MEET YOUR NEEDS BY PROVIDING EXTENSIVE CAPABILITIES WHICH INCLUDE: • Robotic welding • Large inventory of plate and structural steel • CNC fl ame and plasma cutting • Metal Forming • Stress relieving, thermal and vibratory • Shot or sand blasting, priming and painting • Machining and Blanchard Grinding • Delivery We continue to train and support our staff in...
Open the catalog to page 3STOCK ASSORTMENT FOR FABRICATION AND BURN-OUT REQUIREMENTS STEEL INVENTORY • Carbon steel plate in thicknesses between 0.25 & 15 (6.35mm and 381mm) in stock • Stocking program of high quality steel material – 1020 – 10 gauge thru 15 thick .. Grades 44W, 50W and A36 – 1045 – ½ thru 5 thick – 4140 – ½ thru 6 thick (shape cutting available) • Variety of structural steel profi les (L- and I-beam), channel and tubing CNC FLAME CUTTING • Single and multi-head fl ame cutting units with maximum table size of 150 x 270 (3,800mm and 6,860mm) • Plasma cutting up to a maximum of 1 (25.4mm) thickness of...
Open the catalog to page 4KEY FABRICATION METHODS METAL FORMING • Hydraulic shear with ½ (12.7mm) x 12Œ (3,650mm) capacity • Hydraulic press brake with 600 U.S. ton (545 metric ton) by 14Œ (4,250mm) capacity WELDING • Materials are shot-blasted to remove mill scale and rust, and contribute to a cleaner, high quality weld • CWB (Canadian Welding Bureau) certifi ed for carbon steel and stainless steel Our technical resources and manufacturing capabilities ensure robust quality standards and controls for customers. Anchor Danly Reliance Fabrications 5
Open the catalog to page 5ROBOTIC WELDING AUTOMATED WELDING CELL • Equipped to handle weights up to 14,550 lbs. (6600 kg) • Two work stations can accommodate fabrications as large as 11Œ long x 8Œ wide x 5Œ high (3.3m x 2.4 m x1.5m) as standard • Full 360° part rotation allows for coordinated motion while welding – ensuring consistent, high-quality welds • Cycle time dramatically reduced for repetitive volume fabrications • Larger weights & sizes can be accomodated ROBOTIC WELDING CELL: • Provides effi cient production of unique, customized parts • Robust fi xtures & positioner designed for heavy load, multi-pass...
Open the catalog to page 6DEPENDABLE PERFORMANCE AND LONG LASTING METAL FABRICATIONS STRESS RELIEVING • Both thermal and vibratory methods are applied in-house • Annealing oven with maximum load dimensions of 8Œ x10Œ x 30Œ in length (2,000mm x 2,500mm x 7,600mm) FINISHING • All material is either shotblasted in a continuous feed blast unit with 16 x 70 (405mm x 1780mm) entry gate or sand-blasted after fl ame cutting before assembly and welding • Shot-blasting and sandblasting both remove all mill scale and rust and gives an ideal surface fi nish for paint adhesion • Final painting is available in-house upon request...
Open the catalog to page 7MACHINING BLANCHARD GRINDING • Rotating grinders with table diameters up to 144 (3,660mm) with 60 vertical head clearance • Horizontal and vertical CNC boring mills up to a maximum of 138 x 320 (3,500mm x 8,130mm) plate size • High precision machining jobs HIGHER LEVEL OF PRECISION & PRODUCTIVITY SPECIALS • Anchor Danly can also manufacture special components to your specifi c needs. 8 Anchor Danly Reliance Fabrications
Open the catalog to page 8COMMITMENT TO CUSTOMER SATISFACTION PROJECT UPDATES • Digital images emailed at customer’s request to follow progress during fabrication • Solidworks, STEP, AutoCAD, IGES and additional model applications • Knowledgeable Customer Service and Engineering experts to assist all your fabrication needs DELIVERY • A fl eet of trucks for deliveries • Carriers for heavier loads Anchor Danly Reliance Fabrications 9
Open the catalog to page 9OFFERING MECHANICAL ASSEMBLY SERVICES ASSEMBLY OF CUSTOMER SPECIFIED OR CUSTOMER PROVIDED PARTS INCLUDING: • Gibbs • Ball Screws • Linear Bearings • Roller Blocks • Conveyors • Motors • Drive Belts • Bearings • Clutches • Wiring & Control Requirements (Call for availability) ANCHOR DANLY’s staff will team with your engineers to see your project through to completion. Sediment Removal Systems Fabrications are stress relieved, blasted and painted to customer specifi cations. 10 Anchor Danly Reliance Fabrications
Open the catalog to page 10STEEL FIXTURE BASES ALUMINUM & STEEL FIXTURE BASES AVAILABLE IN STANDARD AND CUSTOM CONFIGURATIONS ALL FIXTURE BASES • Blanchard Ground • Flatness & Parallelism is .001/ft. – not exceeding .007 overall • Edges machined .001/ft. – not exceeding .004 overall • Blasted and painted medium blue or customer’s specifi ed color • Custom sizes & shapes designed on CAD to meet customer requirements • Thorough inspection is completed at all stages of manufacturing (inspection reports supplied) ALUMINUM FIXTURE BASES • 6061 stress relieved aluminum plate and bar stock • GMAW highest quality aluminum...
Open the catalog to page 11RELIANCE FABRICATIONS 95 Lyon Avenue North Tilbury, ON Canada N0P 2L0 email: releng@anchordanly.com PHONE: 800-265-5295 519-682-0470 FAX: 519-682-3616 SALES FAX: 519-682-9870 © 2010 Anchor Danly. All rights reserved. AD011-1 01/10 www.anchordanly.com ANCHOR DANLY 2590 Ouellette Avenue Windsor, ON Canada N8X 1L7 email: wineng@anchordanly.com PHONE: 800-265-5007 519-966-4431 FAX: 519-966-3594 PHONE: 888-526-2467 616-949-8700 FAX: 616-949-9580 ANCHOR DANLY 4300 40th Street SE Grand Rapids, MI USA 49512 email: graeng@anchordanly.com Anchor Danly Reliance Fabrications
