LamGlide Bushings

Product catalog summary

Overview: LamGlide™ bushings offer solutions to various engineering challenges, particularly in high load, low speed applications. They are designed to ingest foreign particles, dampen vibrations, and have a low moisture absorbency rate. These bushings are compatible with most lubricants, although not recommended for use with molybdenum-based lubricants, and can operate without added lubrication in certain cases.

Specifications: LamGlide™ bushings are self-aligning, chemical resistant, tolerate edge loading, and are made from lightweight materials with dimensional stability. The maximum operating temperature is 482°F, and the bushings are manufactured according to Lamina's Class 3 tolerance grade unless specified otherwise.

Applications: These bushings are suitable for a wide range of industries, including metal stamping, transfer machinery, special machines, automation, farm equipment, sports and fitness equipment, and medical equipment.

Application Data Sheet: Users are required to specify application type (linear, radial, or combination), application description, nominal inside and outside diameters, and tolerances. Additional details such as steady-state operating temperature, thrust load, and chemical exposure should also be provided.

Contact Information: Lamina Components and Anchor Die Sets have multiple contact points across the USA and Canada for customer inquiries and orders. They are committed to quality and customer satisfaction, aiming to be a world-class supplier in the metal-working and plastics forming industry.

Catalog excerpts

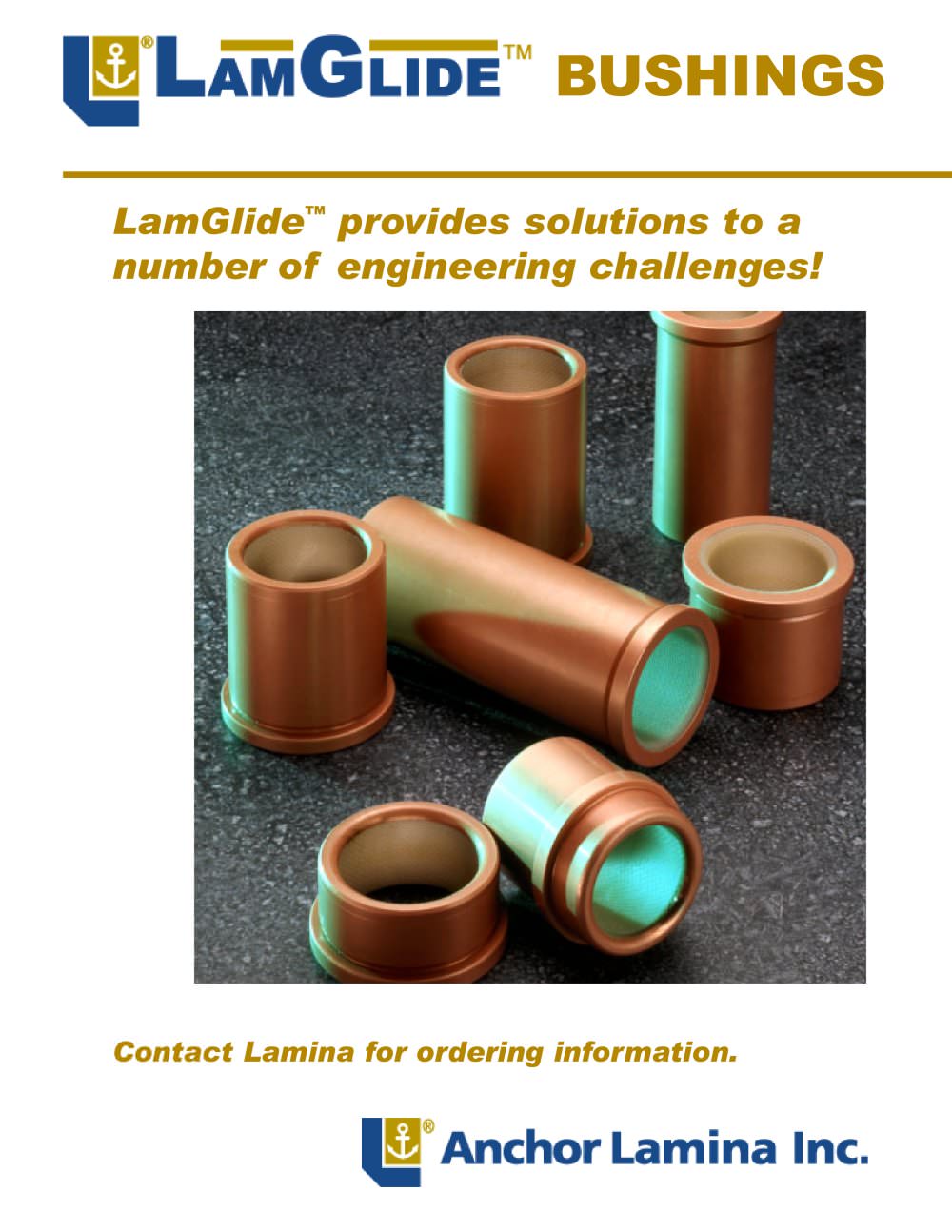

LamGlide. provides solutions to a number of engineering challenges! Contact Lamina for ordering information. BUSHINGS

Open the catalog to page 1

LamGlide. bushings provide solutions to a number of engineering challenges. ! Ingests foreign particles ! High load, low speed applications ! Vibration dampening ! Low moisture absorbency rate ! Compatible with most lubricants* ! Can be operated without any added lubrication in certain cases LamGlide. bushings have outstanding physical, mechanical and chemical properties. ! Self-aligning ! Chemical resistant ! Tolerates edge loading ! Lightweight material ! Dimensional stability Restrictions: ! Maximum operating temperature 482° F. ! I.D.s will be manufactured in accordance with Lamina.s Class...

Open the catalog to page 2

Application Data Sheet Application Type (choose one and give appropriate details) _____ Linear linear stroke seen by bushing = _______ inches or mm maximum application speed = _______ cycles per minute total press stroke or machine stroke = _______ inches or mm _____ Radial rpm = _______ _____ Combination (Linear & Radial) linear stroke seen by bushing = ______ inches or mm + degrees of rotation seen by bushing = _______ or rpm = _______ Application Description _____Stamping Die _____Mold _____Automation Equipment _____Machinery _____Marine _____Other (specify) ______________________________________________________________________...

Open the catalog to page 3

057-0803-1m Anchor Lamina Contacts Lamina Components 38505 Country Club Drive Suite 200 Farmington Hills, MI USA 48331 Tel: 248-489-9122, 800-652-6462; Fax: 248-553-6842 E-Mail: [email protected] Anchor Die Sets 2590 Ouellette Avenue, Windsor, ON, Canada N8X 1L7 Tel: 519-966-4431, 800-265-5007; Fax: 519-966-3594 E-mail: [email protected] 1450 Alphonse D-Roy, Montreal, QC, Canada H1W 2K8 Tel: 514-525-5560, 800-263-5560; Fax: 514-525-7835 E-mail: [email protected] 1200 Lakeshore Road East, Mississauga, ON, Canada L5E 1E9 Tel: 905-274-3448, 800-268-5230; Fax: 905-274-7303 E-mail: [email protected]...

Open the catalog to page 4
