LamCam™ SlimCam™ 50 mm Die Cams

Product catalog summary

Introduction
Anchor Lamina introduces the SlimCam™ 50mm, a robust cam designed for light and medium-duty applications. It is manufactured using high-quality materials, including high-strength steel castings. The cam features a nitrogen return spring, a mechanically interlocked slide, and provisions for mounting and locating with square keys and dowel holes. It meets or exceeds NAAMS cam requirements and has a dynamic load rating of 4 tons (35.6kN). The SlimCam™ is noted for its compact footprint and dual external positive return system.

Specifications
The SlimCam™ is available in two configurations: Aerial and Diemount. The Aerial configuration offers work angles from 0° to 60° in 5° increments, while the Diemount configuration offers angles from 0° to 30° in 5° increments. Both configurations have a shut height of 225mm and a true 50mm width.

Dimensions and Parts
The document provides detailed dimensions and exploded views for both Aerial and Diemount SlimCam™ models, including part numbers and descriptions for replacement parts. Key components include the base, slide, driver, shock absorber, V-block, and gas spring.

Performance
The SlimCam™ series performance graph indicates the work force in kN and cycles in millions, based on a .04mm wear on bronze. The nitrogen return system enhances slide return forces for additional stripping boost.

Customer Commitment
Anchor Lamina emphasizes its commitment to quality and customer satisfaction, highlighting its role as a customer-focused supplier in the metal-working and plastics forming industry. The company aims to support global competition by providing innovative and value-added products and services.

Catalog excerpts

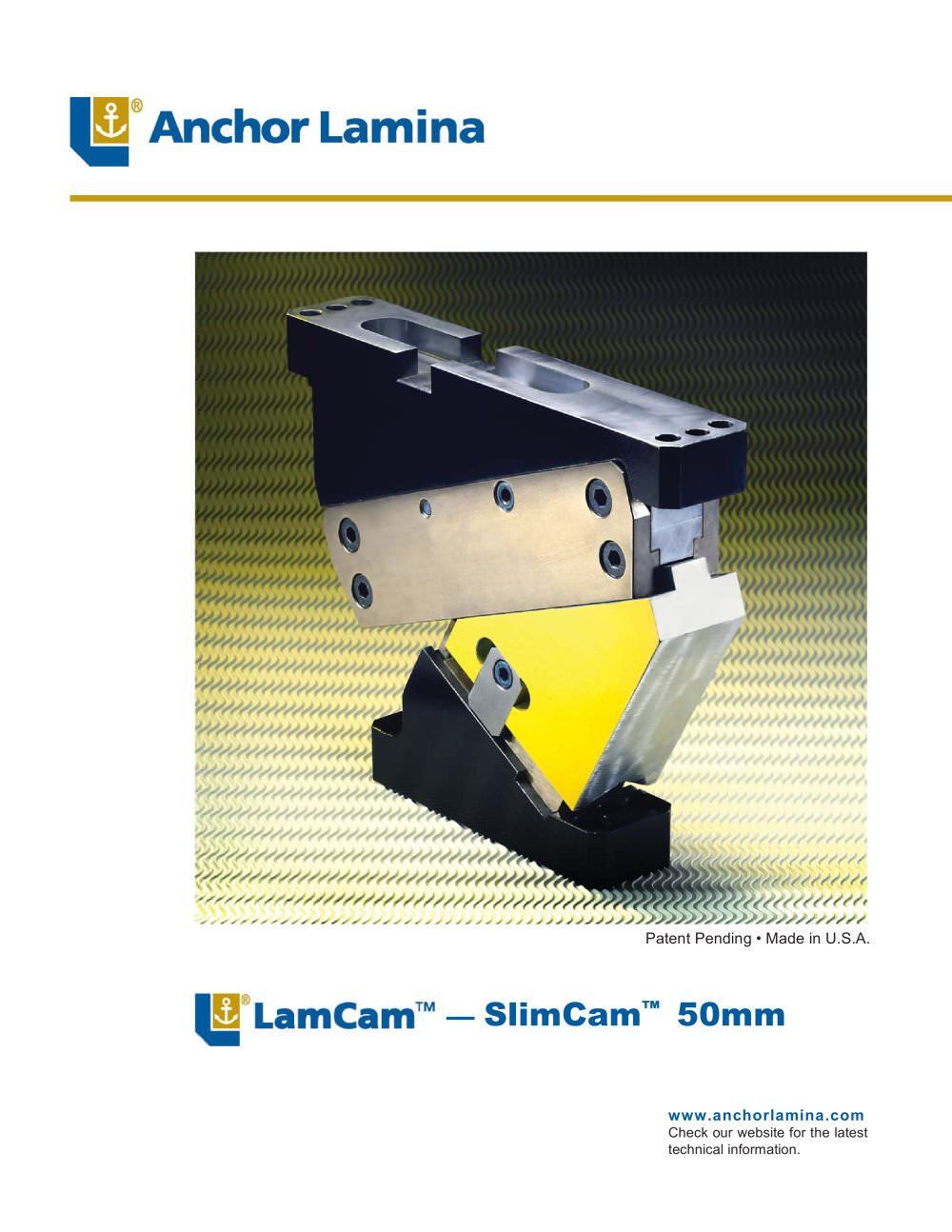

— SlimCam™ 50mm www.anchorlamina.com Check our website for the latest technical information. Patent Pending • Made in U.S.A.

Open the catalog to page 1

3 0° – 30° Diemount Diemount confi guration offered in 5° increments from 0° to 30° work angles Diemount & Aerial Shut Height = 225mm Anchor Lamina introduces the true 50mm cam that meets NAAMS standards... 0° – 60° Aerial Aerial confi guration offered in 5° increments from 0° to 60° work angles

Open the catalog to page 3

7 Lamina has a ready-made LamCam™ for nearly every cam application. Look on our website www.anchorlamina.com for our entire line of ready-made Cams. Lamina also provides specials and custom-made Cams. SlimCam™ AERIAL REPLACEMENT PARTS ITEM NUMBER QUANTITY DESCRIPTION PART NUMBER 8 10 Soc. Hd. Cap Screw M8x1.25x16 F010809 10 2 Soc. Hd. Cap Screw M8x1.25x40 F010814 14 1 Soc. Hd. Cap Screw M10x1.5x25 F011011 27 1 Soc. Hd. Cap Screw M8x1.25x80 F010822 64 1 NAAMS Key 25x25x50 M082505 72 1 Lockout Spacer NCM050008 91 1 Base (See Note 1) NLA05@@10 92 1 Slide (See Note 1) NLA05@@30 93 1 Driver (See Note...

Open the catalog to page 7

11 Check out these die mount cams. Anchor Lamina takes great pride in the cam products that carry the LamCam™ name. We stand behind those products by fully servicing them with Lamina authorized interchangeable component parts manufactured for or by Lamina expressly. From 300mm to 50mm Standard Cams, SlimCam™, and RollerCam to our unique Bump Cams. Diemount modular cams (500mm - 1200 width) are not pictured. SlimCam™ DIEMOUNT REPLACEMENT PARTS ITEM NUMBER QUANTITY DESCRIPTION PART NUMBER 8 10 Soc. Hd. Cap Screw M8x1.25x16 F010809 10 2 Soc. Hd Cap Screw M8x1.25x40 F010814 14 1 Soc. Hd. Cap Screw...

Open the catalog to page 11

Lamina Components 38505 Country Club Drive Suite 100 Farmington Hills, MI USA 48331 Tel: 248-489-9122, 800-652-6462 Fax: 248-553-6842, 800-406-4410 E-Mail: [email protected] www.anchorlamina.com Committed to Quality & Customer Satisfaction Anchor Lamina is committed to be the “customer focused” world-class supplier of choice to the metal-working and plastics forming industry. We will help our customers to compete globally by providing innovative and value added products and services. Distributed by: 037 06/07

Open the catalog to page 12
