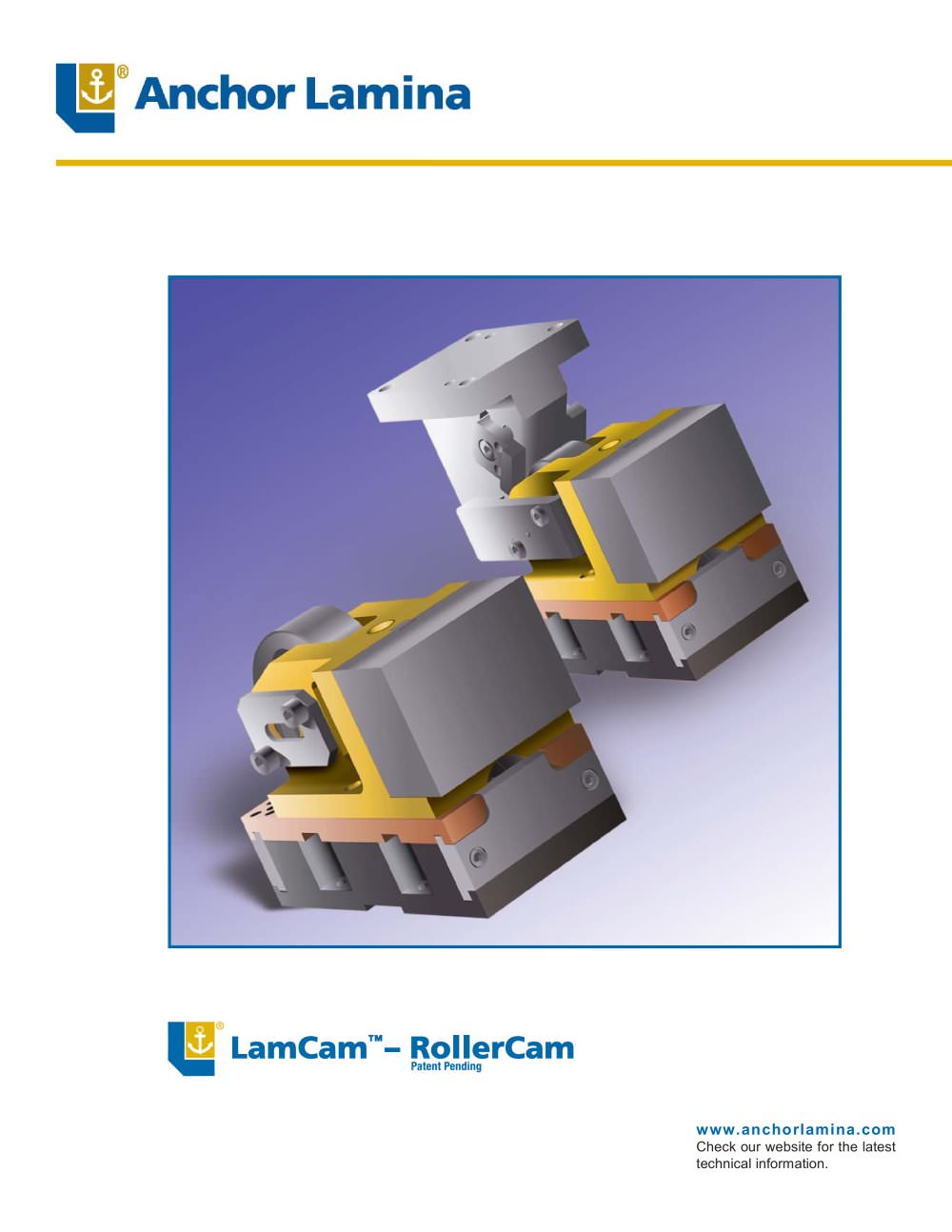

www.anchorlamina.com Check our website for the latest technical information.

2 -10° 0° +10° +20° +30° +40° +50° -15° -5° RollerCam Patent Pending • Designed to function at one million hits plus • Maintenance-free, Aluminum-Bronze alloy wear surfaces • Maximum mounting surface on slide face • Increased slide surfaces • Interlocking safety systems • Easy access to Return Spring • Adaptable to any angle • Tooling mount plate is readily accessible from the back, without disassembling slide ROLLER CAM SPECIFICATIONS Basic Part Number Cam Only Work Stroke (mm) Maximum Force** Return Force Mounting (kN) (US tons) (kN) (lbf) Screw Size LRC0306350* 50 30 3.3 0.62 140 M8x25 LRC0306375*...

4 d d1 e a d2 40 4-Ø 13 Thru Ø10 2 - Dowel 12.5 25 V1 A2 V3 V4 A1 H4 H3 b c RollerCam with Driver and Positive Return 3 and 5 Metric Ton Capacities For special driver angles contact Lamina Customer Service 800-652-6462. f

6 d d1 e a d2 40 4-Ø 17.5 Thru Ø12 2 - Dowel 12.5 25 f V1 A2 V3 V4 A1 H4 H3 b c RollerCam with Driver and Positive Return 10 and 15 Metric Ton Capacities For special driver angles contact Lamina Customer Service 800-652-6462.

8 RollerCam Component Parts 63mm Series See page 12 for notes on nitrogen spring selection. 4 5 8 9 11 12 13 16 17 18 19 21 22 23 3 10 15 25 2 7 1 6 20 14 24 COMPONENT PARTS ITEM NO. PART NAME PURCH. QTY. DESCRIPTION 1 27IDTAG50 * 1 ID TAG 50mm 2 F010609 * 8 M6 X 1.0 X 16 SHCS 3 F010808 * 2 SHCS M8x1.25x12 4 F010809 * 6 SHCS M8x1.25x16 5 F010811 * 4 SHCS M8x1.25 x25 6 F021009 * 2 LHCS M10x1.5x16 7 F1TS187 * 2 DRIVE SCREW #4 x 3/16 SS 8 FACEBLOCK63 1 ROLLER CAM TOOL MOUNT FACE 9 KEY101230 1 KEY 10 X 12.7 X 30mm 10 LRC063050D00 1 ROLLER CAM DRIVER 11 LRC06350WP 2 WEAR PLATE ROLLER CAM 12 LRC063POA...

9 ITEM NO. PART NAME PURCH. QTY. DESCRIPTION 1 27IDTAG50 * 1 ID TAG 50mm 2 F010609 * 4 M6 X 1.0 X 16 SHCS 3 F010808 * 2 SHCS M8x1.25x12 4 F010809 * 6 SHCS M8x1.25x16 5 F010810 * 4 SHCS M8x1.25x20 6 F010811 * 4 SHCS M8x1.25 x25 7 F021009 * 2 LHCS M10x1.5x16 8 F1TS187 * 2 DRIVE SCREW #4 x 3/16 SS 9 FACEBLOCK100 1 ROLLER CAM TOOL MOUNT FACE 10 LRC08100PKA 1 POS. RETURN KEY A 11 LRC08100PKB 1 POS. RETURN KEY B 12 LRC100050D00 1 ROLLER CAM DRIVER 13 LRC10050WP 2 WEAR PLATE ROLLER CAM 14 LRC100POA 1 POS. RETURN BKT A 15 LRC100POB 1 POS. RETURN BKT B 16 LRCFTPL100 1 ROLLER CAM FRONT PLATE 17 MB100050A...

10 RollerCam Component Parts 150mm Series See page 12 for notes on nitrogen spring selection. COMPONENT PARTS ITEM NO. PART NAME PURCH. QTY. DESCRIPTION 1 27IDTAG50 * 1 ID TAG 50mm 2 F010609 * 4 M6 X 1.0 X 16 SHCS 3 F010809 * 6 SHCS M8x1.25x16 4 F010810 * 6 SHCS M8x1.25x20 5 F010811 * 4 SHCS M8x1.25 x25 6 F021009 * 2 LHCS M10x1.5x16 7 F1TS187 * 2 DRIVE SCREW #4 x 3/16 SS 8 FACEBLOCK150 1 ROLLER CAM TOOL MOUNT FACE 9 LRC08100PKA 1 POS. RETURN KEY A 10 LRC08100PKB 1 POS. RETURN KEY B 11 LRC15050WP 2 WEAR PLATE ROLLER CAM 12 LRC150POA 1 POS. RETURN BKT A 13 LRC150POB 1 POS. RETURN BKT B 14 LRC200050D00...

11 RollerCam Component Parts 200mm Series See page 12 for notes on nitrogen spring selection. COMPONENT PARTS ITEM NO. PART NAME PURCH. QTY. DESCRIPTION 1 27IDTAG50 * 1 ID TAG 50mm 2 BUSHING200 1 BUSHING, ROLLER CAM 3 F010609 * 4 M6 X 1.0 X 16 SHCS 4 F010809 * 6 SHCS M8x1.25x16 5 F010810 * 6 SHCS M8x1.25x20 6 F010811 * 4 SHCS M8x1.25 x25 7 F021009 * 4 LHCS M10x1.5x16 8 F1TS187 * 2 DRIVE SCREW #4 x 3/16 SS 9 FACEBLOCK200 1 ROLLER CAM TOOL MOUNT FACE 10 LRC08100PKA 1 POS. RETURN KEY A 11 LRC08100PKB 1 POS. RETURN KEY B 12 LRC200050D00 1 ROLLER CAM DRIVER 13 LRC20050WP 2 WEAR PLATE ROLLER CAM 14...

Lamina Components 38505 Country Club Drive, Suite 100 Farmington Hills, Michigan 48331 USA Tel: 248-489-9122, 800-652-6462 Fax: 248-553-6842, 800-406-4410 E-mail: [email protected] www.anchorlamina.com © 2007 Anchor Lamina. All rights reserved. 086-1 06/07 Lamina RollerCam in a typical piercing application DADCO SPRING KALLER SPRING Spacer MSC100042 Flathead Screw F030607 FACE WIDTH NITROGEN GAS SPRING S=50mm S=75mm S=95mm 63mm KALLER R19-063B R19-080B N/A DADCO C.090.063B C.090.080B N/A 100mm 150mm 200mm KALLER MC3-063Y MC3-080Y MC3-100Y DADCO C.250.063 C.250.080 C.250.100 Modifi cations are...
