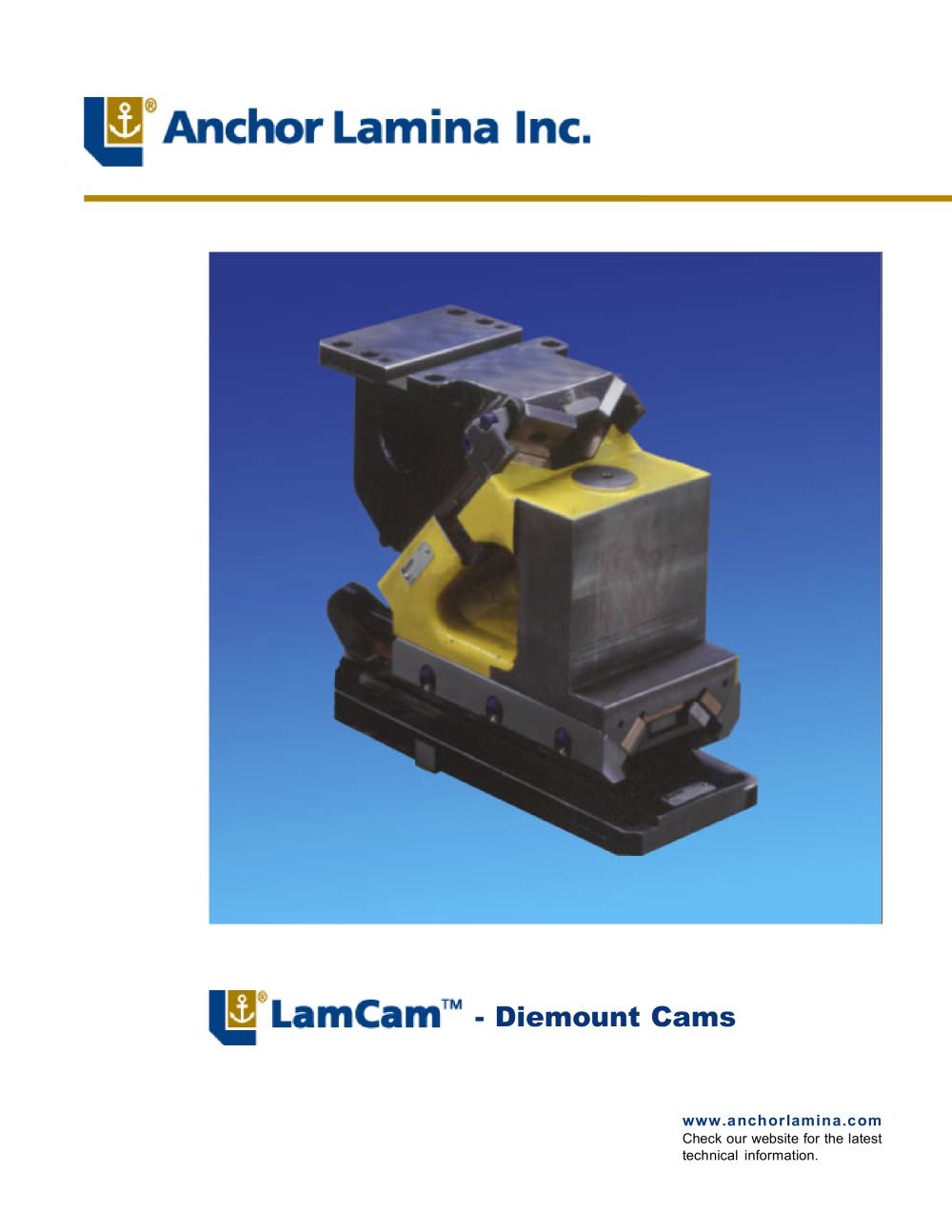

- Diemount Cams www.anchorlamina.com Check our website for the latest technical information.

3 Mechanical Spring Mechanical & Nitrogen Spring* (Recommended) Nitrogen Spring SLIDE RETURN SYSTEM OPTIONS Recognizing that different cam applications have different requirements, Lamina offers three Slide Return System Options. 1. Mechanical . Employs a conventional ISO die spring, used in cam applications where additional stripping force is not required. 2. Combination Mechanical/Nitrogen . This unique Lamina design employs an ISO die spring in series combination with a Nitrogen Spring. This return system utilizes the mechanical spring for preload, keeping the contact forces low, while providing...

7 COMPONENT PARTS FOR 50 SERIES DIEMOUNT CAMS Item No. Qty Description PART NUMBER Item No. Qty Description PART NUMBER NCDXXXX04 NCDXXXX04 NCDXXXX44* 2 2 Bushing LIner BLM025050 15 1 Pin NCM050011 3 12 Soc. Hd. Cap Screw M8x1.25x16 F010809 16 1 Spring Bracket NCM050012 4 1 Soc. Hd. Cap Screw M12x1.75x25 F011211 17 1 Disk Plate NCM150013 5 1 Soc. Hd. Cap Screw M8x1.25x30 F010812 18 1 Lockout Spacer NCM050015 6 1 Soc. Hd. Cap Screw M8x1.25x100 F010824 19 1 Driver (See Note 1) NMA05@@24 7 2 Soc. Hd. Cap Screw M10x1.5x20 F011010 20 1 Slide (0° - 30°) NMD055034 8 4 Soc. Hd. Cap Screw M10x1.5x25 F011011...

11 (a) Actual .preload. = 0, this force is at initial contact with nitrogen spring. (b) @ 1.6 million cycles and 0.04mm wear. 75 SERIES PERFORMANCE GRAPH (Based on .04mm wear on bronze) 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 280 (31) 245 (27) 210 (23) 175 (19) 140 (15) 107 (12) 82 (9) 47 (5) 12 (1) WORK FORCE kN (US Tons) CYCLES (millions) 75 Series Specifications Spring Kit Option Spring Kit Part # (2 Required) Pre-Load kg (lbs.) -f Final Load kg (lbs.) -f Mechanical SKC070001 19 (42) 133.5 (293) Combination - Mech./Nitrogen (Kaller) Precharge to 96 Bar (1400 PSI) SKC070002 40 (88)...

14 COMPONENT PARTS for 125.150 Series Diemount Cams Refer to 125.150 Series Specifications Table for Return Spring Options. See page 3 for more information. 20 9 4 8 1 7 26 33 14 25 12 31 19 10 18 5 23 3 17 16 11 30 27 32 6 35 34 13 22 24 29 21 28 SHOCK ABSORBERS . OPTIONAL Qty PART NUMBER DESCRIPTION 2 MSC100028 Shock Absorber Assemblies Shock absorber location noted in red on drawing

15 (a) Actual .preload. = 0, this force is at initial contact with nitrogen spring. (b) @ 1.6 million cycles and 0.04mm wear 125.150 SERIES PERFORMANCE GRAPH (Based on .04mm wear on bronze) 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 336 (37) 294 (32) 252 (28) 210 (23) 177 (19) 140 (15) 98 (11) 56 (6) 14 (1) CYCLES (millions) WORK FORCE kN (US Tons) Note1: For @@ in part numbers insert: (50 for 0°); (45 for 5°); (40 for 10°); (35 for 15°); (30 for 20°); (25 for 25°) and (20 for 30°). 125 - 150 Series Specifications Spring Kit Option Spring Kit Part # (2 Required) Pre-Load kg (lbs.) -f...

19 175.200 SERIES PERFORMANCE GRAPH (Based on .04mm wear on bronze 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 537 (60) 470 (52) 403 (45) 336 (37) 269 (30) 224 (25) 157 (17) 90 (10) 22 (2) CYCLES (millions) WORK FORCE kN (US Tons) (a) Actual .preload. = 0, this force is at initial contact with nitrogen spring (b) @1.6 million cycles and 0.04mm wear Note1: For @@ in part numbers insert: (50 for 0°); (45 for 5°); (40 for 10°); (35 for 15°); (30 for 20°); (25 for 25°) and (20 for 30°). RETURN SPRING KIT OPTIONS Recognizing that different cam applications have different requirements, Lamina...

23 (a) Actual .preload. = 0, this force is at initial contact with nitrogen spring (b) @ 1.6 million cycles and 0.04mm wear 250.300 SERIES PERFORMANCE GRAPH (Based on .04mm wear on bronze 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 857 (96) 750 (84) 643 (72) 535 (60) 428 (48) 357 (40) 250 (28) 143 (16) 36 (4) CYCLES (millions) WORK FORCE kN (US Tons) RETURN SPRING KIT OPTIONS Recognizing that different cam applications have different requirements, Lamina offers three Return Spring Kit Options: 1 Mechanical - Employs a conventional ISO Die Spring - used in cam applications where additional...

24 Thank you for your purchase of a Lamina NAAMS type cam unit. This unit was manufactured with great care and pride as a simple solution to complex cam operations. The following information will be helpful during installation and testing of the cam unit. Before installation, please read these instructions thoroughly and note all precautions presented. Keep these instructions with the cam unit until installation is complete and then file them for future reference. INSTALLATION CAUTION: When installing the cam unit while the die set is mounted in the press, ensure that safety blocks are in place....
