ANCHOR LAMINA
LamCam™ Aerial Modular Cams

LamCam™ Aerial Modular Cams

Product catalog summary

Introduction and General Overview
This document provides comprehensive technical details on Anchor Lamina's Aerial Modular Cams, designed for metal stamping and plastics forming industries. The cams emphasize durability, precision, modularity, and ease of maintenance, featuring interchangeable parts and compliance with industry standards.

Key Features and Design Highlights

Safety-focused spring replacement system with slide retention during spring removal.
Major components constructed from high-strength steel castings.
Wear areas protected by double-plated, self-lubricated wear plates to minimize maintenance and extend lifespan.
Three return spring kit options: Mechanical ISO spring, Combination Mechanical/Nitrogen spring (recommended), and Nitrogen spring.
Pentahedron design ensures smooth, stable slide movement across 500 to 1200 Series cams.
Urethane bumpers cushion slide return; optional hydraulic shock absorbers available for low-angle cams.
Mounting provisions include square keys and dowel holes for precise installation.
Meets or exceeds NAAMS cam requirements with safety lock-out kits and dual external positive return systems.
Super-duty accelerator system standard for angles 0° to 50°.

Return Spring System Options
Three tailored return spring kits accommodate different application needs:

Mechanical Spring Kit: Conventional ISO die spring, suitable where no extra stripping force is needed.
Combination Mechanical/Nitrogen Spring Kit: Combines mechanical preload with nitrogen high final load, reducing wear and enhancing stripping force; recommended for Aerial and Diemount cams.
Nitrogen Spring Kit: Provides high return forces but with higher initial contact force, potentially increasing wear.

Optional shock absorbers are advised for cams with angles below 35° lacking accelerators to ensure gentle slide return.

Series Specifications and Dimensions
The document details specifications for multiple series (500-600, 700-800, 900-1000, 1100-1200), including:

Dimensional drawings with critical measurements (face width, work angle, press stroke, work stroke, effective work stroke).
Part numbers, weights (kg and lbs), and spring kit options for angles from 0° to 60° in 5° increments.
Component parts lists with item numbers, quantities, descriptions, and part numbers for assembly and maintenance.
Return spring kit specifications including preload and final load forces, tooling allowances, and rated capacities.

Highlights by Series

500-600 Series: Face widths and angles 0°–60°, preload forces 51.3–276 kg, final loads up to 458 kg, rated capacity 435 kN (44.3 M-Tons).
700-800 Series: Rated capacity 670 kN (68.3 M-Tons), max weight 130 kg, detailed tooling ball and dowel locations for precise installation.
900-1000 Series: Rated capacity 1000 kN (102 M-Tons), max weight 175 kg, detailed dimensional data supporting precise engineering.
1100-1200 Series: Weights approx. 796–853 kg, rated capacity 1000 kN, part numbers structured by series, angle, and spring kit type.

Component Parts
Comprehensive parts lists include accelerator blocks (angle-dependent), socket head cap screws (various sizes), base plates, slides, roller shafts, wear plates (bronze, steel, hard steel), spring return brackets, lockout spacers, positive return keys, and optional shock absorber assemblies.

Installation Procedures
Without Installation Tool:

Remove return spring kit and install lockout kits.
Secure cam base/slide assembly within ±0.5 mm tolerance.
Assemble die shoes to shut height.
Fit cam driver assembly, tighten screws after seating.
Transfer tooling holes, drill, tap, and machine as needed.
Attach positive return guide and accelerator; adjust for smooth engagement.
Lubricate wear plates before final assembly.
Verify free slide movement, install return springs, and torque screws to specifications.

With Installation Tool:

Remove slide and accelerator components.
Bolt square bar to cam driver center slot.
Position cam slide onto driver, engage positive returns.
Attach installation bracket and secure screws.
Insert adjustment screw and rotate to simulate slide movement and punch setting.

Torque Specifications
Socket head cap screws require specific torque values:

M6: 16 N·m (140 in-lbs)
M8: 39 N·m (350 in-lbs)
M10: 77 N·m (680 in-lbs)
M12: 135 N·m (1200 in-lbs)
M16: 330 N·m (2900 in-lbs)

Lower torque values apply for low-profile screws.

Patents and Compliance
The cams are covered by U.S. Patent No. 5,885,521 and European Patent No. 1097010, with additional patents pending. They meet or exceed NAAMS standards, ensuring industry compliance and safety.

Additional Products and Services
Anchor Lamina offers a 50mm cam meeting NAAMS standards with high rated tonnage and competitive pricing. Portable hydraulic tools such as heavy-duty drills and electronic die setters support tool room maintenance and cam installation.

Company Commitment and Contact Information
Anchor Lamina is dedicated to quality and customer satisfaction, aiming to be a world-class supplier in metalworking and plastics forming industries by providing innovative, value-added products and services.
Contact:
38505 Country Club Drive Suite 100, Farmington Hills, MI USA 48331
Phone: 248-489-9122, 800-652-6462
Fax: 248-553-6842, 800-406-4410
Email: [email protected]
Website: www.anchorlamina.com

Summary
This document serves as a detailed technical reference for engineers and maintenance personnel to select, install, and maintain Anchor Lamina’s Aerial Modular Cams. It provides critical data on part numbers, weights, spring options, component parts, dimensions, installation procedures, torque specifications, and performance ratings to ensure reliable, safe, and efficient operation in metal stamping and plastics forming applications.

Catalog excerpts

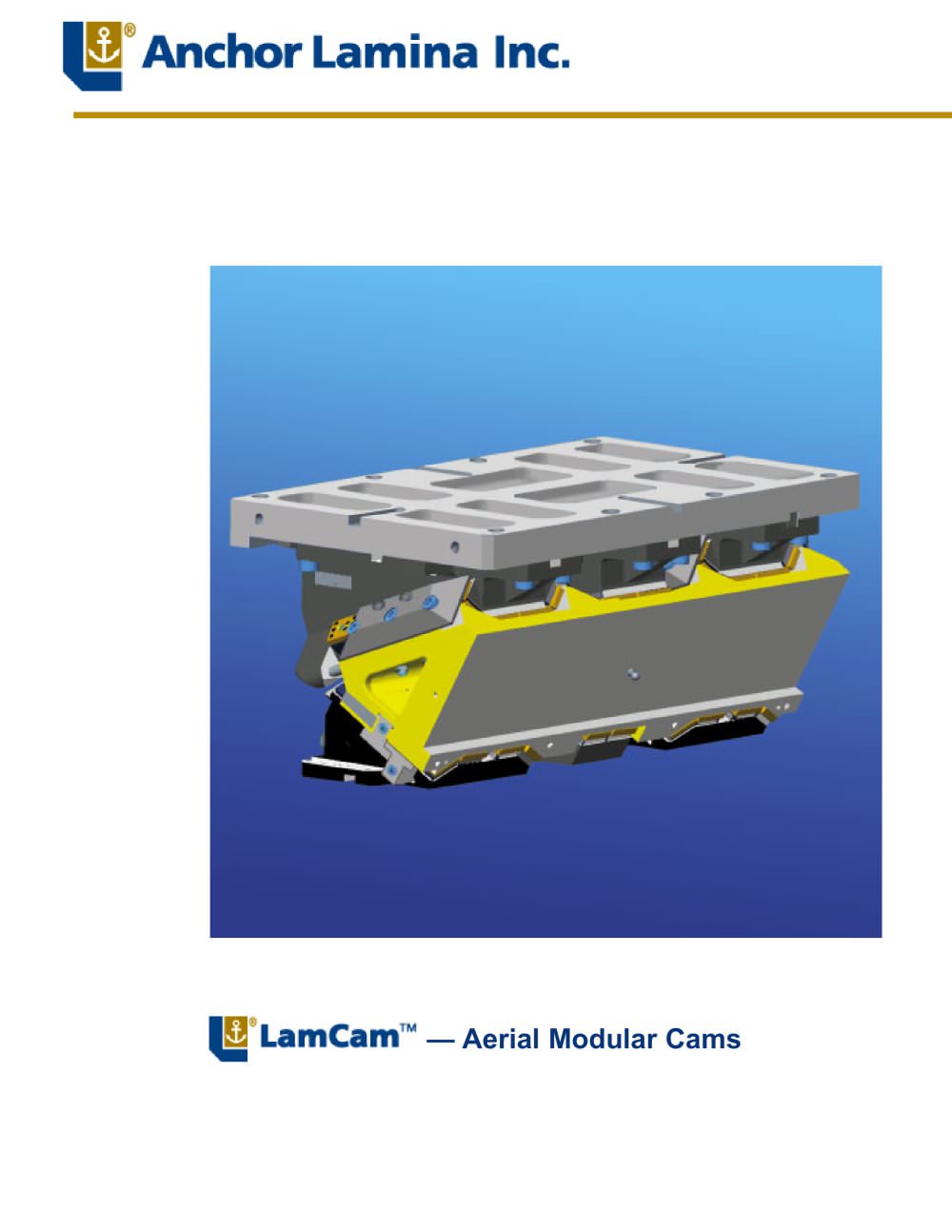

. Aerial Modular Cams

Open the catalog to page 1

3 Recognizing that different cam applications have different requirements, Lamina offers three Return Spring Kit Options. 1. Mechanical . Employs a conventional ISO Die Spring, used in cam applications where additional stripping force is not required. 2. Combination Mechanical/Nitrogen . This unique Lamina design employs an ISO Die Spring in series combination with a Nitrogen Spring. This return system utilizes the mechanical spring for preload, keeping the forces low, while providing high final loads from the nitrogen spring for stripping. 3. Nitrogen . This return system provides high return...

Open the catalog to page 3

7 COMPONENT PARTS FOR 500.600 SERIES AERIAL MODULAR CAMS ITEM NO QTY Description PART NUMBER ITEM NO QTY Description PART NUMBER MCAXXXX04 MCAXXXX04 MCAXXXX44* 1 2 Accelerator Block (See Notes 1 & 2) 14A1230@@R 24 2 Positive Return Bracket NCM150008 3 2 Soc. Hd. Cap Screw M6x1.0x12 F010608 25 2 Positive Return Guideway NCM150009 4 4 Soc. Hd. Cap Screw M6x1.0x16 F010609 26 4 Keeper Plate NCM150010 5 4 Soc. Hd. Cap Screw M6x1.0x20 F010610 27 2 Spring Return Bracket NCM200001 6 100 Soc. Hd. Cap Screw M8x1.25x16 F010809 28 2 Disk Plate NCM200008 7 4 Soc. Hd. Cap Screw M8x1.25x20 F010810 29 2 Roller...

Open the catalog to page 7

11 700-800 Series Specifications RETURN SPRING KIT OPTIONS Spring Kit Option Spring Kit Part # (2 Required) Pre-Load kg (lbs.) -f Final Load kg (lbs.) -f Recognizing that different cam applications have different requirements, Lamina offers three Return Spring Kit Options: Mechanical IMD063305 132 (290) 528 (1162) 1 Mechanical - Employs conventional ISO Die Springs - used in cam applications where additional stripping force is not required. Combination - Mech./Nitrogen (Kaller) SKC250002 113 (249) 703 (1550) Combination - Mech./Nitrogen (Dadco) SKC250012 113 (249) 703 (1550) 2 Combination Mechanical/Nitrogen...

Open the catalog to page 11

15 900-1000 Series Specifications RETURN SPRING KIT OPTIONS Spring Kit Option Spring Kit Part # (3 Required) Pre-Load kg (lbs.) -f Final Load kg (lbs.) -f Recognizing that different cam applications have different requirements, Lamina offers three Return Spring Kit Options: Mechanical IMD063305 132 (290) 528 (1162) 1 Mechanical - Employs conventional ISO Die Springs - used in cam applications where additional stripping force is not required. Combination - Mech./Nitrogen (Kaller) SKC250002 113 (249) 703 (1550) Combination - Mech./Nitrogen (Dadco) SKC250012 113 (249) 703 (1550) 2 Combination Mechanical/Nitrogen...

Open the catalog to page 15

19 Note 1: Insert Angle (00,05,10 etc.) for @@ in part number. Note 2: No Accelerator is required for angles 55° - 60°. Note 3: Base Plate Part Number is dependent on angle. (0°, 5°,10°=MMA121001) (15°, 20°=MMA122001) (25°, 30°=MMA123001) (35°=MMA123501) (40°=MMA124001) (45°, 55°=MMA124501) (50°=MMA125001) (60°=MMA126001) *Option: Cams with double steel wearplates. This column calls out the part numbers for steel self-lubricating wear plates. 900-1000 Series Specifications RETURN SPRING KIT OPTIONS Spring Kit Option Spring Kit Part # (3 Required) Pre-Load kg (lbs.) -f Final Load kg (lbs.) -f...

Open the catalog to page 19

20 Installation Instructions The following information will be helpful during installation and testing of the cam unit. Before installation, please read these instructions thoroughly and note all precautions presented. Keep these instructions with the cam unit until installation is complete and then file them for future reference. CAUTION: When installing the cam unit while the die set is mounted in the press, ensure that safety blocks are in place. INSTRUCTIONS WITHOUT INSTALLATION TOOL 1. Verify that the Return Spring Kit is not in the cam and that the Lockout Kits are installed. If the Spring...

Open the catalog to page 20

21 INSTRUCTIONS USING INSTALLATION TOOL With the use of our Installation Tool, Aerial Cams may be placed in a fraction of the time needed to install them without the tool. 1. After location of the cam is determined between the upper and lower die and the die is open and separated in the die work area, carefully remove the slide from the cam body using handling holes (if necessary). 2. Remove accelerator bracket from slide (where applicable). (55° and 60° cams do not have accelerator brackets.) 3. Remove accelerator ramp from driver (where applicable). (55° and 60° cams do not have accelerator...

Open the catalog to page 21

22 Anchor Lamina introduces the true 50mm cam that meets NAAMS standards... Four tons of performance at a 1-1/2 ton price! Highest rated tonnage in the 50mm wide cam field! Order our new catalog today.

Open the catalog to page 22

23 Anchor Lamina also offers portable Hydraulic Equipment that will assist you with tool room maintenance as well as aiding in cam installation... Our Heavy-Duty Portable Hydraulic Drill is essential in die maintenance allowing you to take the drill to the die. Our Electronic Die Setter takes the guess work out of punch setting and cam installation...And separates dies without damaging the tooling.

Open the catalog to page 23

037-1104-2.5m Committed to Quality & Customer Satisfaction Anchor Lamina is committed to be the .customer focused. world-class supplier of choice to the metal-working and plastics forming industry. We will help our customers to compete globally by providing innovative and value added products and services. Lamina Components 38505 Country Club Drive Suite 100 Farmington Hills, MI USA 48331 Tel: 248-489-9122, 800-652-6462 Fax: 248-553-6842, 800-406-4410 Email: [email protected] www.anchorlamina.com Distributed by:
