Group: ANCHOR LAMINA
Catalog excerpts

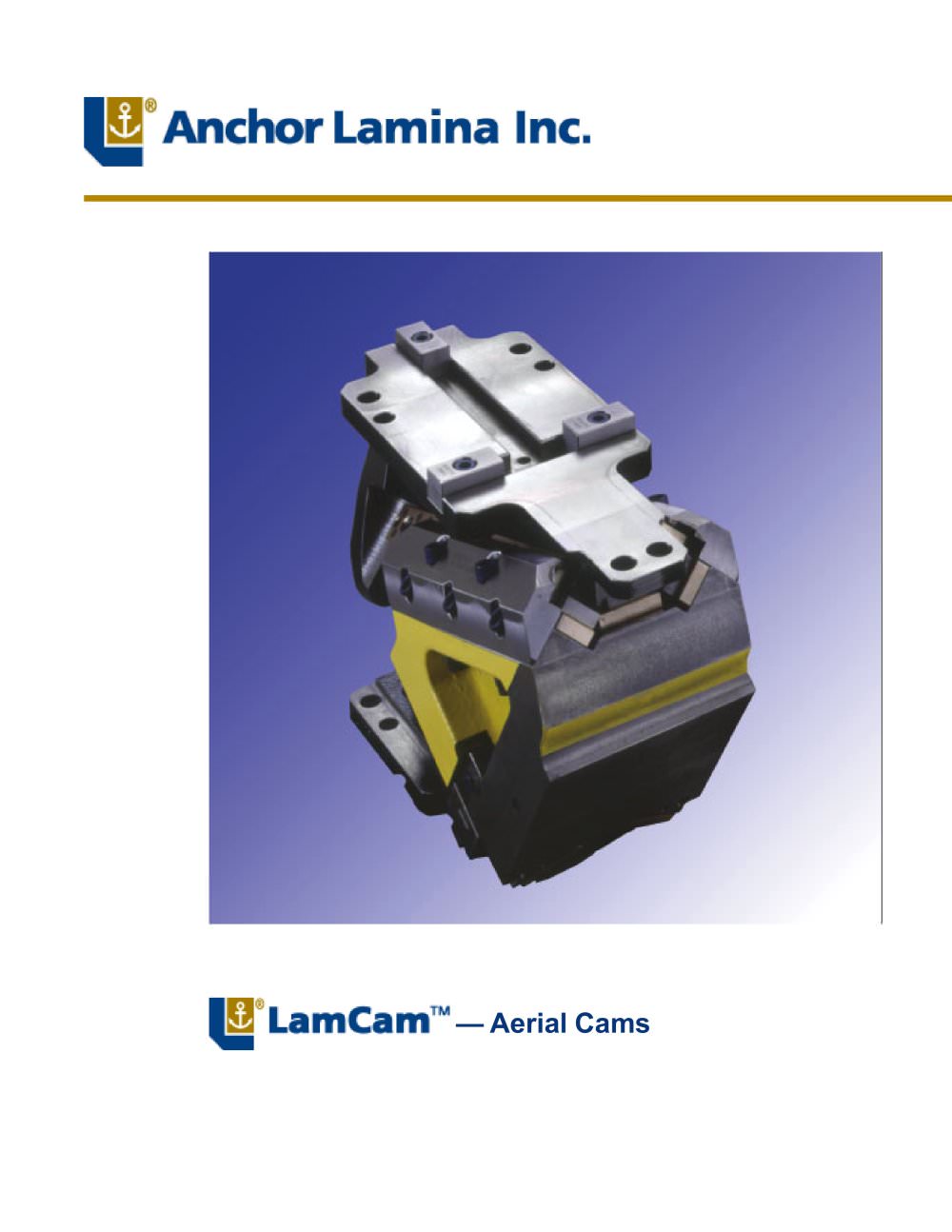

. Aerial Cams
Open the catalog to page 13 Recognizing that different cam applications have different requirements, Lamina offers three Return Spring Kit Options. 1. Mechanical . Employs a conventional ISO Die Spring, used in cam applications where additional stripping force is not required. 2. Combination Mechanical/Nitrogen . This unique Lamina design employs an ISO Die Spring in series combination with a Nitrogen Spring. This return system utilizes the mechanical spring for preload, keeping the initial contact forces low, while providing high final loads from the nitrogen spring for part stripping. 3. Nitrogen . This return...
Open the catalog to page 37 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 14 (1) 35 (4) 56 (6) 77 (8) 98 (11) 119 (13) 140 (15) 161 (18) WORK FORCE kN (US Tons) CYCLES (millions) 50 Series PERFORMANCE GRAPH (Based on .04mm wear on bronze) a) Actual .preload. = 0, this force is at initial contact with nitrogen spring. (b) @1.6 million cycles and 0.04mm wear. 50 Series Specifications Spring Kit Option Spring Kit Part # (2 Required) Pre-Load kg (lbs.) -f Final Load kg (lbs.) -f Mechanical SKC050001 34 (75) 129 (284) Combination - Mech./Nitrogen (Kaller) Precharge to 65.5 Bar (950 PSI) SKC050002 45 (98.2) 195...
Open the catalog to page 711 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 12 (1) 47 (5) 82 (9) 107 (12) 140 (15) 175 (19) 210 (23) 245 (27) 280 (31) WORK FORCE kN (US Tons) CYCLES (millions) 75 Series PERFORMANCE GRAPH (Based on .04mm wear on bronze) (a) Actual .preload. = 0, this force is at initial contact with nitrogen spring. (b) @1.6 million cycles and 0.04mm wear. 75 Series Specifications Spring Kit Option Spring Kit Part # (2 Required) Pre-Load kg (lbs.) -f Final Load kg (lbs.) -f Mechanical SKC070001 19 (42) 133.5 (293) Combination - Mech./Nitrogen (Kaller) Precharge to 96 Bar (1400 PSI) SKC070002 40...
Open the catalog to page 1115 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 14 (1) 56 (6) 98 (11) 140 (15) 177 (19) 210 (23) 252 (28) 294 (32) 336 (37) WORK FORCE kN (US Tons) CYCLES (millions) 125/150 Series PERFORMANCE GRAPH (Based on .04mm wear on bronze) a) Actual .preload. = 0, this force is at initial contact with nitrogen spring. (b) @1.6 million cycles and 0.04mm wear. Note 1: Insert angle (00, 05,10 etc.) for @@ in part number. 125 - 150 Series Specifications Spring Kit Option Spring Kit Part # (2 Required) Pre-Load kg (lbs.) -f Final Load kg (lbs.) -f Mechanical ILD040254 45 (99) 149 (328) Combination...
Open the catalog to page 1519 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 175/200 Series PERFORMANCE GRAPH (Based on .04mm wear on bronze) WORK FORCE kN (US Tons) CYCLES (millions) (a) Actual .preload. = 0, this force is at initial contact with nitrogen spring. (b) @1.6 million cycles and 0.04mm wear. Note 1: Insert angle (00, 05,10 etc.) for @@ in part number. 22 (2) 90 (10) 157 (17) 224 (25) 269 (30) 336 (37) 403 (45) 470 (52) 537 (60) RETURN SPRING KIT OPTIONS Recognizing that different cam applications have different requirements, Lamina offers three Return Spring Kit Options: 1 Mechanical - Employs a...
Open the catalog to page 1923 6.0 5.5 5.0 4.5 4.0 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.036 (4) 143 (16) 250 (28) 357 (40) 428 (48) 535 (60) 643 (72) 750 (84) 857 (96) WORK FORCE kN (US Tons) CYCLES (millions) 250/300 Series PERFORMANCE GRAPH (Based on .04mm wear on bronze) (a) Actual .preload. = 0, this force is at initial contact with nitrogen spring. (b) @1.6 million cycles and 0.04mm wear. Note 1: Insert angle (00, 05,10 etc.) for @@ in part number. RETURN SPRING KIT OPTIONS Recognizing that different cam applications have different requirements, Lamina offers three Return Spring Kit Options: 1 Mechanical - Employs a...
Open the catalog to page 2324 Installation Instructions The following information will be helpful during installation and testing of the cam unit. Before installation, please read these instructions thoroughly and note all precautions presented. Keep these instructions with the cam unit until installation is complete and then file them for future reference. CAUTION: When installing the cam unit while the die set is mounted in the press, ensure that safety blocks are in place. INSTRUCTIONS WITHOUT INSTALLATION TOOL 1. Verify that the Return Spring Kit is not in the cam and that the Lockout Kits are installed. If the...
Open the catalog to page 2425 INSTRUCTIONS USING INSTALLATION TOOL With the use of our Installation Tool, Aerial Cams may be placed in a fraction of the time needed to install them without the tool. 1. After location of the cam is determined between the upper and lower die and the die is open and separated in the die work area, carefully remove the slide from the cam body using handling holes (if necessary). 2. Remove accelerator bracket from slide (where applicable). (55° and 60° cams do not have accelerator brackets.) 3. Remove accelerator ramp from driver (where applicable). (55° and 60° cams do not have...
Open the catalog to page 2526 Anchor Lamina introduces the true 50mm cam that meets NAAMS standards... Four tons of performance at a 1-1/2 ton price! Highest rated tonnage in the 50mm wide cam field!
Open the catalog to page 2627 New! 50mm cam available in Aerial and Diemount styles. LamCam offers the following features: ! Compact footprint ! Robust cam for light and medium duty applications ! Meets NAAMS requirements ! Slide is mechanically interlocked ! Dynamic load rating of 4 tons (35.6kN) ! True 50mm width Check out this complementary addition to our LamCam. line of cam products! Diemount & Aerial Shut Height = 225mm 0° . 30° Diemount 0° . 60° Aerial
Open the catalog to page 27Anchor Lamina Contacts Lamina Components 38505 Country Club Drive Suite 200 Farmington Hills, MI USA 48331 Tel: 248-489-9122, 800-652-6462; Fax: 248-553-6842, 800-406-4410 E-mail: sales@lamina.com Anchor Die Sets 2590 Ouellette Avenue, Windsor, ON, Canada N8X 1L7 Tel: 519-966-4431, 800-265-5007; Fax: 519-966-3594 E-mail: wineng@anchorlamina.com 1450 Alphonse D-Roy, Montreal, QC, Canada H1W 2K8 Tel: 514-525-5560, 800-263-5560; Fax: 514-525-7835 E-mail: moneng@anchorlamina.com 1200 Lakeshore Road East, Mississauga, ON, Canada L5E 1E9 Tel: 905-274-3448, 800-268-5230; Fax: 905-274-7303 E-mail:...
