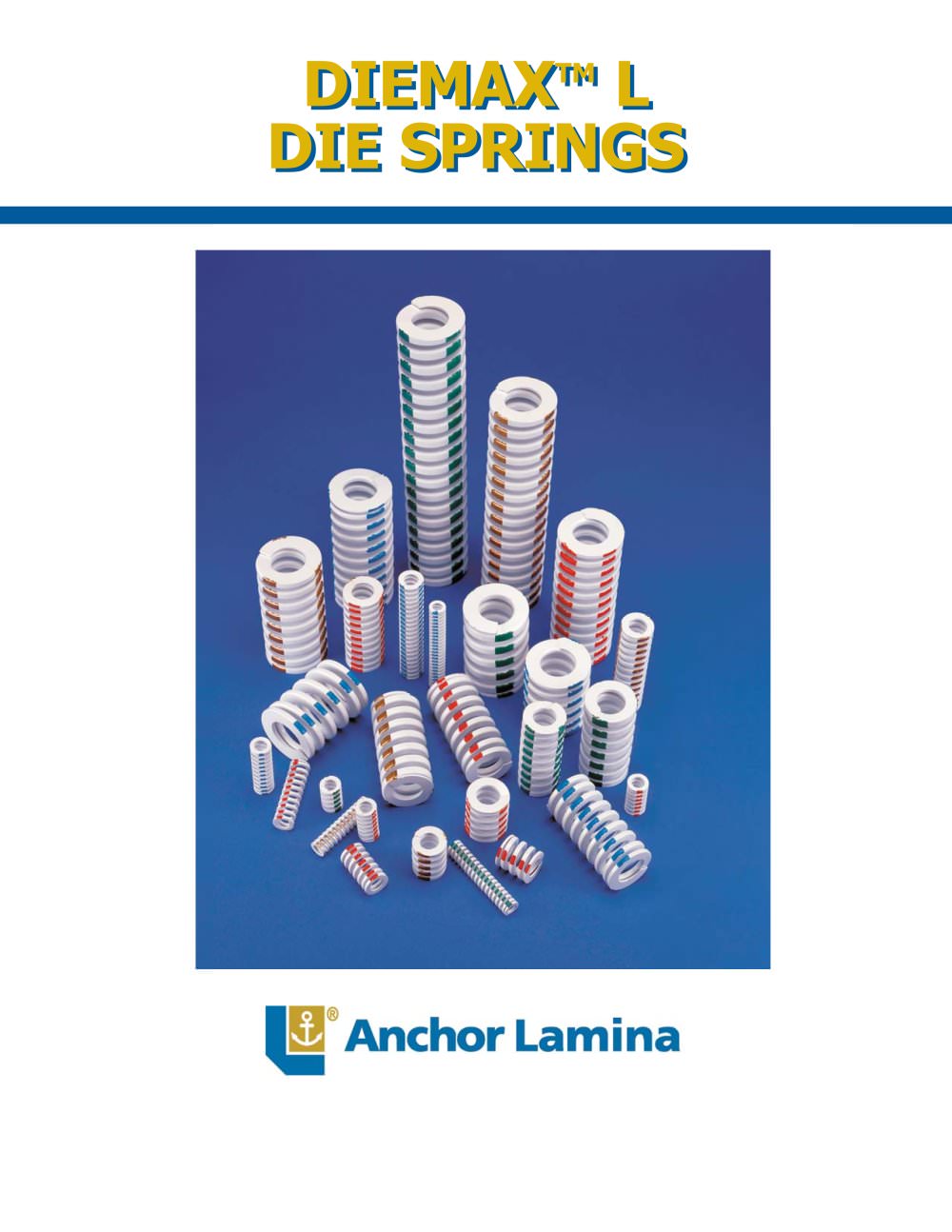

DieMax™ L Die Springs
16Pages

{{requestButtons}}

Catalog excerpts

DieMax™ L Die Springs - 2

Die Spring Basics A die spring is a highly engineered mechanical spring with specific wire designs that stores energy elastically by resisting movement when pressure is applied. The desired wire segment is selected to produce the maximum amount of force within a minimal amount of space. Altering Die Springs Each die spring is carefully engineered to perform within specific applications. Under no circumstances should you alter a die spring. Altering a die spring will change its designed characteristics and allows additional stresses to occur causing early failure. Grinding on the die spring...

Open the catalog to page 2
DieMax™ L Die Springs - 3

1 Inch Die Springs Medium Duty – Blue 2 Medium Heavy Duty – Red 4 Heavy Duty – Gold 6 Extra Heavy Duty – Green 8 Spring Accessories 10 Special Heavy Duty Compression Springs 12 TABLE OF CONTENTS PAGE NUMBER MEDIUM DUTY Color Coded Blue Stripe MEDIUM HEAVY DUTY Color Coded Red Stripe HEAVY DUTY Color Coded Gold Stripe EXTRA HEAVY DUTY Color Coded Green Stripe Die Springs Product Features For same day shipments, we stock them so you don’t have to Inch sizes manufactured to industry standard colors Yields reliable, trouble-free performance Manufactured in an ISO 9001:2000 certified facility...

Open the catalog to page 3
DieMax™ L Die Springs - 14

12 Submit custom spring print Submit application information .. Include description of application .. Life expectations .. Critical dimensions, tolerances, certifications required SPRING SPECIALS QUOTING PROCESS Special Heavy Duty Compression Springs MANUFACTURING CAPABILITIES A custom spring is any spring that has: Unique physical attributes .. Special wire material, plating or paint .. Custom free lengths, diameters, solid heights, rates, number of coils or custom loads at a given deflection Critical tolerances Specific inspection or certification requirements .. Military specifications...

Open the catalog to page 14
DieMax™ L Die Springs - 15

DIEMAXTM L DIE SPRINGS Other Anchor Lamina Products Anchor Lamina supplies the most extensive selection of springs and pressure control devices used in die sets, molds, fixtures and machines. Among the products Anchor Lamina stocks are the following: Formathane® Urethane .. Specially formulated for metalforming .. Greater abrasion resistance .. Higher pressures with added durability MRO Utility Springs .. Engineered for durability .. Unlimited applications for general utility and industry .. Available in assortments Marsh Mellow® Die Springs .. An effective alternative to costly nitrogen...

Open the catalog to page 15
DieMax™ L Die Springs - 16

© 2008 Anchor Lamina. All rights reserved. 004-2 05/08 Distributed by: The Anchor Danly Company www.anchorlamina.com ANCHOR DIE SETS CANADA Montreal, QC, Canada CALL: 800-263-5560 FAX: 514-525-7835 moneng@anchorlamina.com ANCHOR DIE SETS CANADA Cambridge, ON, Canada CALL: 800-265-7842 FAX: 519-740-8213 cameng@anchorlamina.com LAMINA COMPONENTS Farmington Hills, MI CALL: 800-652-6462 FAX: 800-406-4410 sales@lamina.com ANCHOR DIE SETS USA Detroit, MI CALL: 800-543-3790 FAX: 800-963-0400 wineng@anchorlamina.com ANCHOR DIE SETS USA Grand Rapids, MI CALL: 888-526-2467 FAX: 616-949-9580...

Open the catalog to page 16
