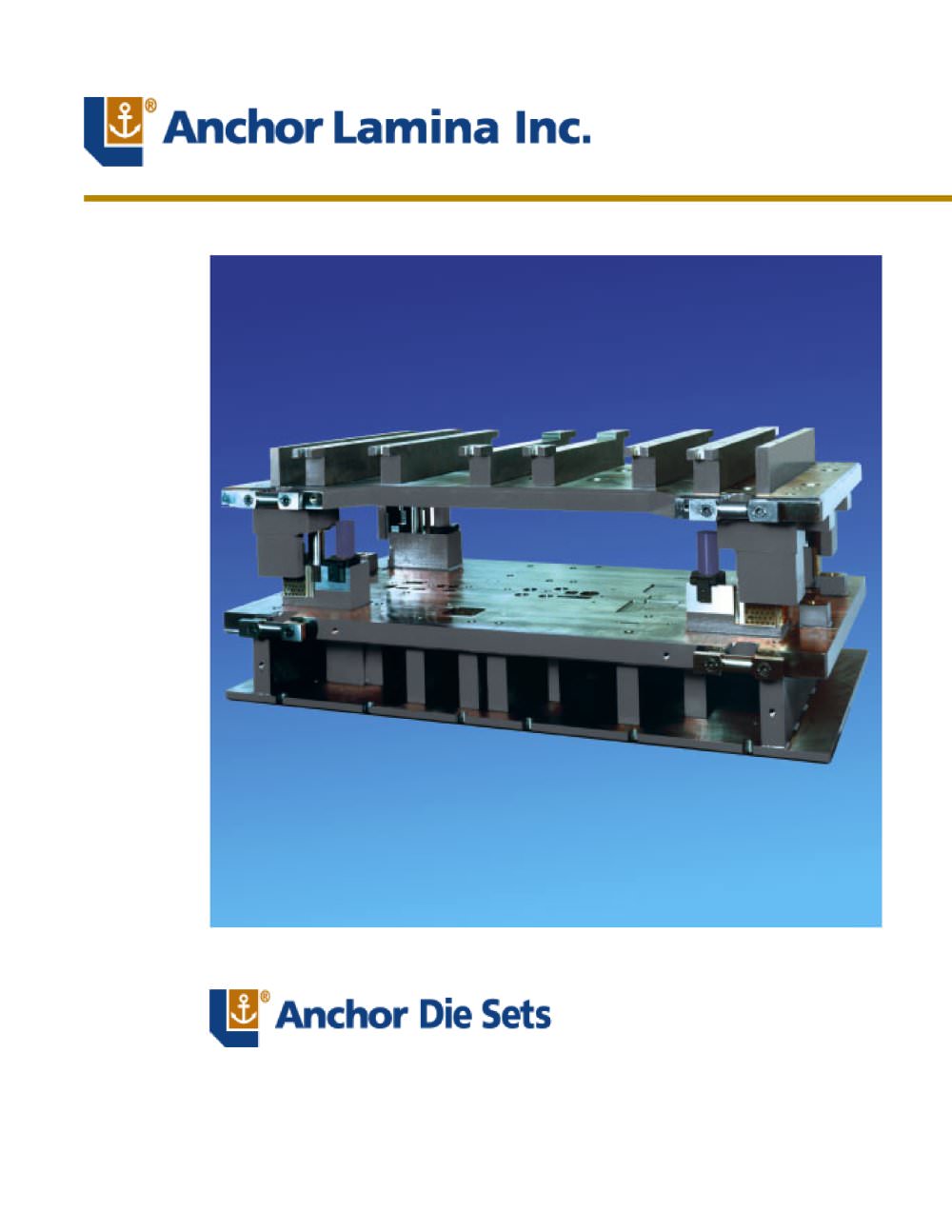

Anchor Die Sets

Product catalog summary

Introduction
Anchor Lamina Inc. supplies die sets to industries such as Automotive, Metal Stamping, and Electronics in Canada, the USA, and Europe. They offer both standard and custom die sets in steel or aluminum, with sizes ranging from 4” x 4” to 120” x 360”.

Plain Bearing Die Sets

Standard Die Sets: Made from mild steel, 4140 steel, or aluminum, featuring Lamina pins and bronze-plated bushings. Available for prompt shipment.
Econoline Die Sets: High-grade commercial sets with bronze-plated bushings and hardened steel guide pins, available in various pin lengths.
Economy Die Sets: Cost-effective option with hardened guide pins and bronze-plated bushings.
Back Post Die Sets: Customizable and non-returnable, available with various shank sizes.
Center Post Die Sets: Types C2 and D2, customizable with different pin diameters and lengths.
Diagonal Post Die Sets: Similar to center post sets, with bronze-plated bushings and customizable features.
Four Post Die Sets: Type R4, customizable with offset guide pins to prevent reversing.

Ball-Bearing Die Sets

Ball-Bearing Die Set Operating Data & Design Selection: Guidelines for selecting and operating ball-bearing die sets.
Standard Die Sets: Similar to plain bearing sets but with ball-bearing components for smoother operation.
Two Post Die Sets: Designed for applications requiring two guide posts.
Four Post Die Sets: Offers stability and precision with four guide posts, customizable to specifications.

Specifications
Die sets are available in mild steel, 4140 steel, and aluminum, with stress-relief available upon request. Dimensions for guide posts, bushings, and ball-bearing retainers are specified.

Operating Data & Design Selection
Key considerations include stroke, shut height, and type of operation. Conditions for pre-load relief and full disengagement are outlined to optimize performance and safety.

Lubrication Recommendation
Lubricate the ball assembly every 8-hour shift with lightweight spindle oil. Grease is not recommended.

Ordering Information
Specify type, dimensions, thickness, minimum shut height, stroke of press, and shank size/location when ordering.

Contact Information
Contact details for Anchor Lamina's offices in Canada and the USA are provided, highlighting their commitment to quality and customer satisfaction.

Catalog excerpts

5 C P.H. D.H. SPECIF Y A 1/2 A W B L A B C L W P.H. D.H. Pin Dia. Pin Length Approx. Weight 4 6 31/2 8 53/4 11/4 11/4 1 SPECIF Y 35 lbs 6 6 31/2 8 73/4 11/4 11/4 1 45 lbs 6 8 51/2 10 73/4 11/4 11/4 1 55 lbs ECONOMY DIE SETS are presently utilized in numerous applications within the Die Making Industry. Lamina Guide Pins...Hardened and ground Lamina Bronze Plated Busings ...Press Fit Type with grease fitting Torch cut from Prime Steel Plate, Blanchard ground and bored (not reamed) to produce an accurate economical Die Set Length of Guide Pins available: 5, 5-1/2, 6, 6-1/2, 7 or 8. long At no extra...

Open the catalog to page 5

12 OPERATING DATA & DESIGN SELECTION In component selection varied characteristics must be taken into consideration when selecting length of guide post, bushing and ball-bearing retainer, such as stroke, shut height and type of operation. To help in your selection we have supplied engineering data and instructions that should be used as a guide when making your component selection. The following conditions should be considered for the most effective performance in a specific application. PRE-LOAD RELIEVED AT TOP OF STROKE FULL DISENGAGEMENT In this condition the guide post, bushing and ball-bearing...

Open the catalog to page 12

Anchor Lamina Contacts Anchor Die Sets 2590 Ouellette Avenue, Windsor, ON, Canada N8X 1L7 Tel: 519-966-4431, 800-265-5007; Fax: 519-966-3594 E-mail: [email protected] 1450 Alphonse D-Roy, Montreal, QC, Canada H1W 2K8 Tel: 514-525-5560, 800-263-5560; Fax: 514-525-7835 E-mail: [email protected] 1200 Lakeshore Road East, Mississauga, ON, Canada L5E 1E9 Tel: 905-274-3448, 800-268-5230; Fax: 905-274-7303 E-mail: [email protected] 311 Pinebush Road, Cambridge, ON, Canada N1T 1B2 Tel: 519-740-3060, 800-265-7842 (Canada only); Fax: 519-740-8213 E-mail: [email protected] 95 East...

Open the catalog to page 16
