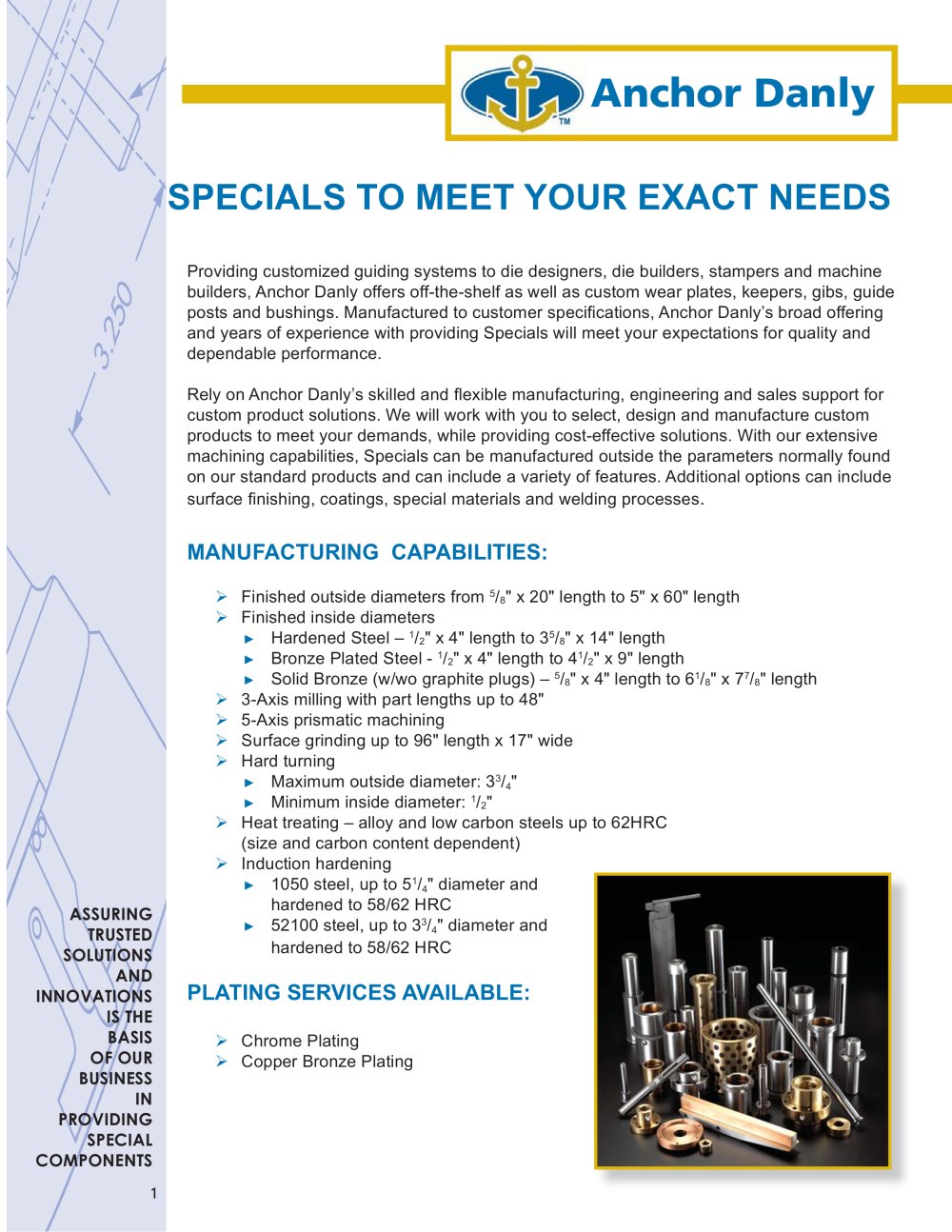

Anchor Danly Specials Capabilities Flyer - 1

SPECIALS TO MEET YOUR EXACT NEEDS Providing customized guiding systems to die designers, die builders, stampers and machine builders, Anchor Danly offers off-the-shelf as well as custom wear plates, keepers, gibs, guide posts and bushings. Manufactured to customer specifi cations, Anchor Danly’s broad offering and years of experience with providing Specials will meet your expectations for quality and dependable performance. Rely on Anchor Danly’s skilled and fl exible manufacturing, engineering and sales support for custom product solutions. We will work with you to select, design and manufacture custom products to meet your demands, while providing cost-effective solutions. With our extensive machining capabilities, Specials can be manufactured outside the parameters normally found on our standard products and can include a variety of features. Additional options can include surface fi nishing, coatings, special materials and welding processes. ASSURING TRUSTED SOLUTIONS AND INNOVATIONS IS THE BASIS OF OUR BUSINESS IN PROVIDING SPECIAL COMPONENTS MANUFACTURING CAPABILITIES: Finished outside diameters from 5/8" x 20" length to 5" x 60" length Finished inside diameters Hardened Steel – 1/2" x 4" length to 35/8" x 14" length Bronze Plated Steel - 1/2" x 4" length to 41/2" x 9" length Solid Bronze (w/wo graphite plugs) – 5/8" x 4" length to 61/8" x 77/8" length 3-Axis milling with part lengths up to 48" 5-Axis prismatic machining Surface grinding up to 96" length x 17" wide Hard turning Maximum outside diameter: 33/4" Minimum inside diameter: 1/2" Heat treating – alloy and low carbon steels up to 62HRC (size and carbon content dependent) Induction hardening 1050 steel, up to 51/4" diameter and hardened to 58/62 HRC 52100 steel, up to 33/4" diameter and hardened to 58/62 HRC PLATING SERVICES AVAILABLE: Chrome Plating Copper Bronze Plating .. .. . . . .. .. .. .. . . .. .. . . .. .. Anchor Danly 1

Open the catalog to page 1
Anchor Danly Specials Capabilities Flyer - 2

GUIDE ELEMENTS A complete line of Anchor Danly guiding elements – including ball bearing, plain bearing and self-lubricating styles – provide a reliable, precise guiding system for die sets, molds and custom machinery. To allow for the most fl exibility in tool design, Anchor Danly components are available in press fi t, demountable and removable styles and various profi les, including short, standard and long shoulder. Available for immediate delivery or customer specifi ed, our guiding elements simplify die building and maintenance. WEAR COMPONENTS Designed to outrun the life of the tool,...

Open the catalog to page 2
