Analytical Technology Q45WQ Water Quality Panel
4Pages

{{requestButtons}}

Catalog excerpts

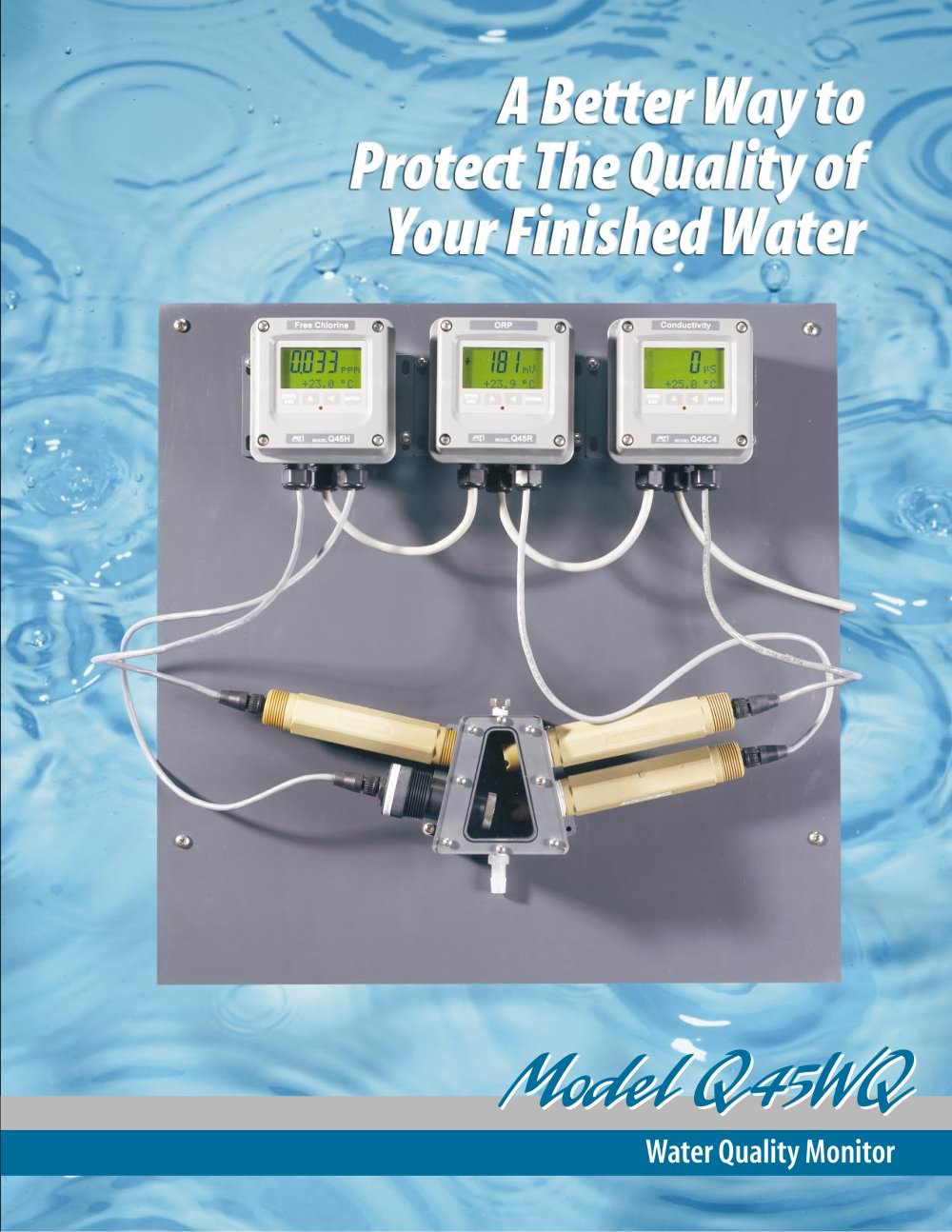

Analytical Technology Q45WQ Water Quality Panel - 1

Water Quality Monitor Model Q45WQ

Open the catalog to page 1
Analytical Technology Q45WQ Water Quality Panel - 2

• Establish baseline conditions and monitor to ensure water is within acceptable limits • Help identify possible contaminants • Continuously monitor residual disinfectant for compliance with Surface Water Treatment Rule ATI’s Model Q45WQ Water Quality Panel is a flexible system designed for continuous, on-line monitoring of multiple parameters in municipal water distribution systems and potable water treatment facilities. The instrumentation contained in each Water Quality Panel is selected by the end user and customized to meet your individual monitoring requirements. The Water Quality...

Open the catalog to page 2
Analytical Technology Q45WQ Water Quality Panel - 3

Free Residual Chlorine: 0-200 PPB minimum, 0-20 PPM maximum Combined Residual Chlorine: 0-200 PPB minimum, 0-20 PPM maximum pH: 0-14 ORP: -1000 to +2000 mV Conductivity: 0-200 mS minimum, 0-200 mS maximum Temperature: 0-50° C Turbidity: 0-4 NTU minimum, 0-4000 NTU maximum Dissolved Oxygen: 0-20 PPM Particle Counter: 0-1000 counts/ml Fluoride: 0-1.00 PPM minimum, 0-1000 PPM maxmum Inlet Pressure: 0-200 PSIG Sample Flowrate: 0-30 GPH Q Series Q Series Q Series A15/73 Turbidity AC Power Distribution Box Flowswitch and Optional Pressure Transducer Wiring Junction Box Turbidity Flowcell 1/2" ID...

Open the catalog to page 3
Analytical Technology Q45WQ Water Quality Panel - 4

pH/ORP Monitors 07-0001 Q45P pH Transmitter, 2-wire 07-0003 Q45P pH Transmitter, AC with relays 07-0088 Q25P2 pH Sensor with connector 07 -0005 Q45R ORP Transmitter, 2-wire 07-0007 Q45R ORP Transmitter, AC with relays 07-0089 Q25R1 Pt. ORP Sensor with connector 05-0060 Salt bridge for pH/ORP 03-0029 Sensors Interconnect cable for pH/ORP 09-0033 Sensors Reference Solution for pH/ORP Sensors Conductivity Monitors 07-0013 Q45C4 Conductivity Transmitter, 2-wire 07-0015 Q45C4 Conductivity Transmitter, AC w/relays 07-0090 Q25C4 Conductivity Sensor with connector 03-0029 Sensor Interconnect cable...

Open the catalog to page 4
