Analytical Technology A15/79 Total Chlorine Monitor
4Pages

{{requestButtons}}

Catalog excerpts

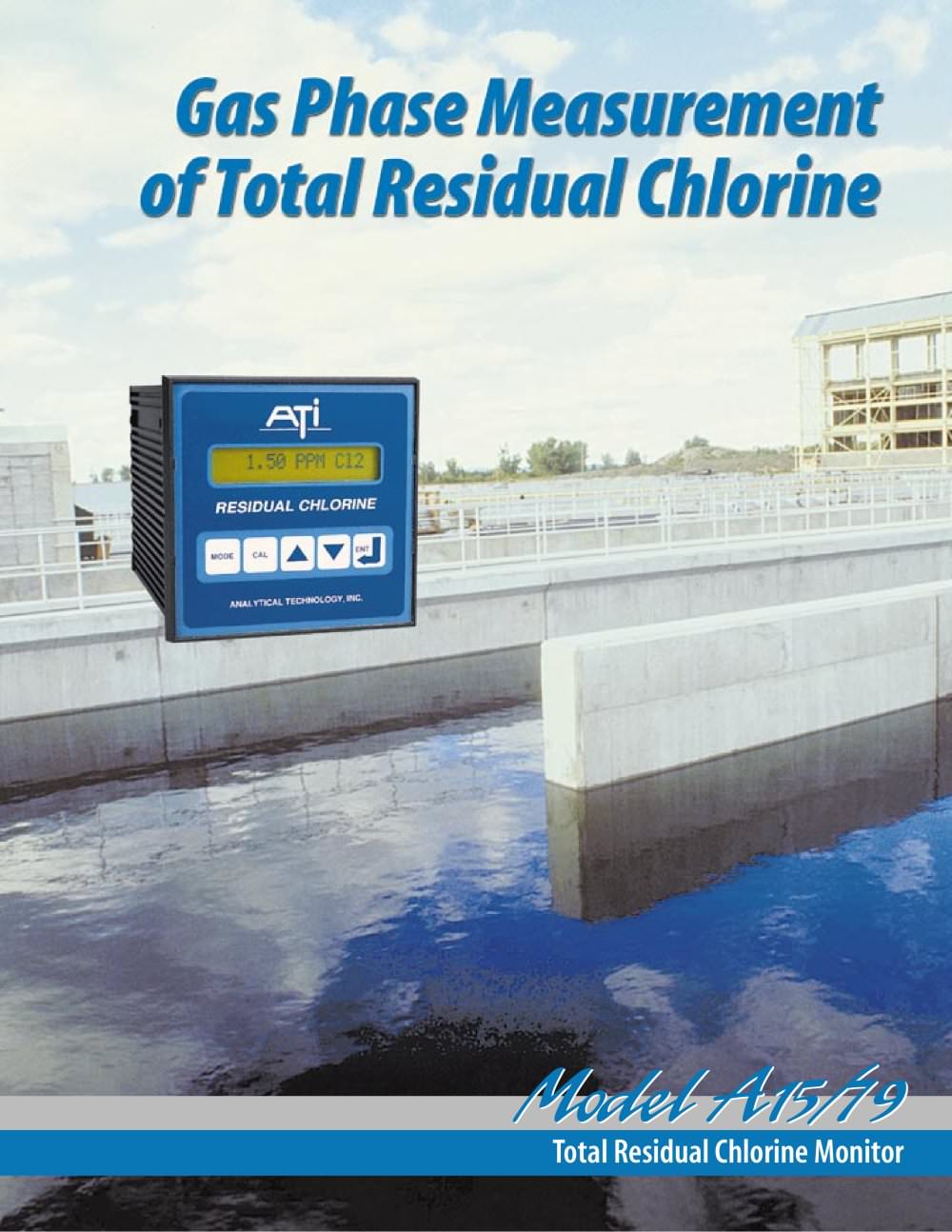

Analytical Technology A15/79 Total Chlorine Monitor - 2

Chlorination of potable water, wastewater effluent, and cooling water is widely used throughout the world to control biological activity in the water. Disinfection of potable water with chlorine ensures that tap water is safe to drink once it has passed through the distribution system. Wastewater disinfection helps to ensure that receiving streams are safe for recreational use, and cooling water chlorination reduces biofouling that can degrade heat transfer efficiency. In addition to these common uses, there are many other applications where chlorine addition helps to reduce biological...

Open the catalog to page 2
Analytical Technology A15/79 Total Chlorine Monitor - 3

Gas Phase Sensing: Measurement is made without contact between sample and electrodes, eliminating the potential for sensor fouling. Standard Method: Total chlorine is measured using EPA recommended method of reaction of sample with buffer and potassium iodide, and measurement of iodine released in the reaction. Alphanumeric LCD: Provides residual chlorine display, alarm status indication, and all configuration information. Two Control Relays: Relays are programmable for setpoint, deadband, and time delay. Relays offer pulse frequency and pulse width modulation control modes in addition to...

Open the catalog to page 3
Analytical Technology A15/79 Total Chlorine Monitor - 4

Suffix C - Enclosure 1 - Panel Mount 2 - NEMA 4X Wall Mount Suffix D - Sensing System 1 - Contacting Gas Sensor System 2 - Air Stripping Sensor System Suffix E - Power 1 - 120 VAC, 60 Hz 2 - 220 VAC, 50 Hz Options: 00-1261 Stainless steel system mounting plate 31-0037 Sensor interconnect cable (max. 100 ft.) Represented By: Ordering Information: Model A15/79 - C - D - E Total Chlorine Monitor Electronic Monitor Range: 0-2.000 or 0-20.00 PPM Accuracy: ± 0.02 PPM Repeatability: ± 0.01 PPM Linearity: 0.1% of F.S. Zero Drift: < 0.01 PPM per month Display: 16 character alphanumeric backlit LCD...

Open the catalog to page 4
