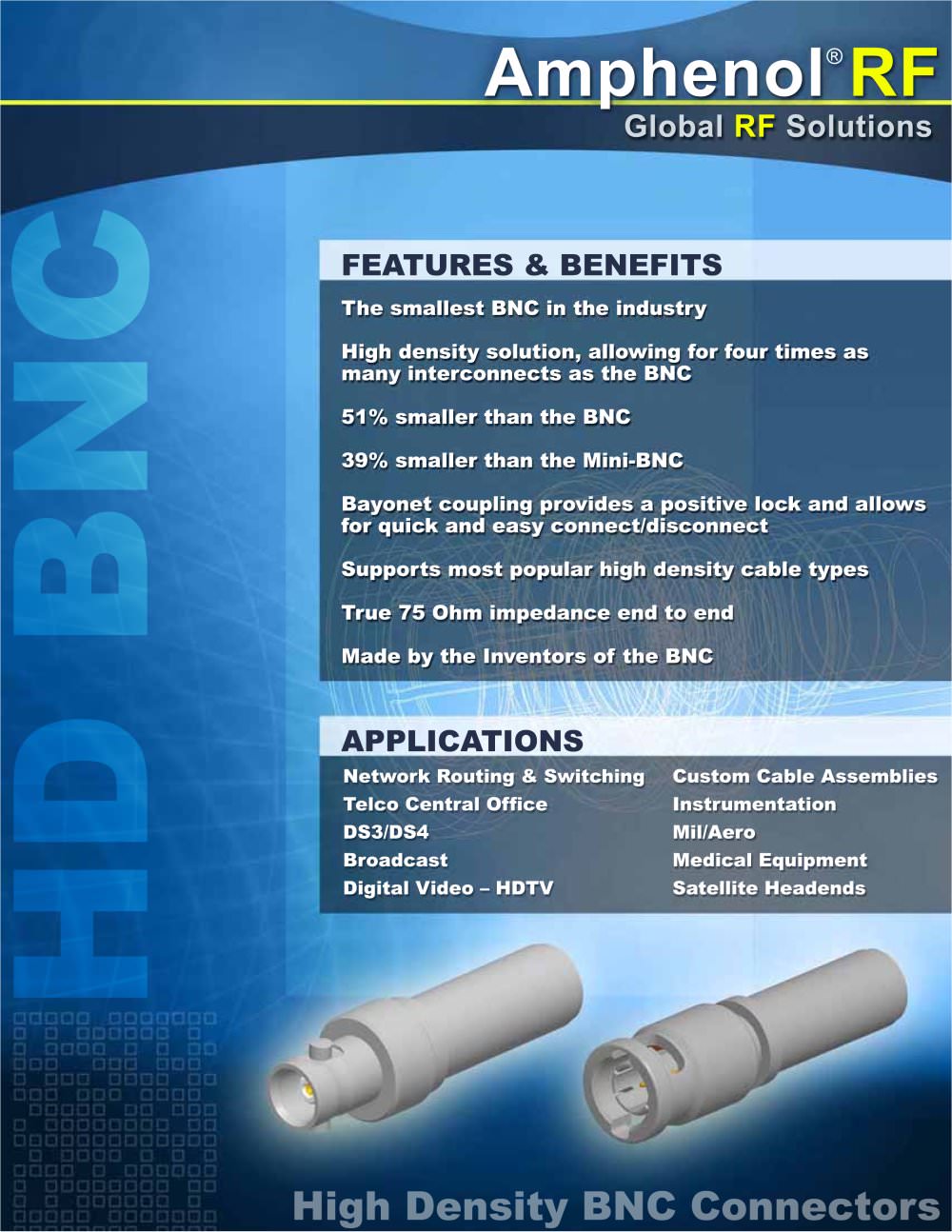

Amphenol RF HD BNC Brochure

Product catalog summary

Overview: This document provides technical specifications for High Density (HD) BNC connectors, comparing them with standard BNC and Mini BNC connectors in terms of spacing and interconnect capacity.

Specifications:

Electrical:
- Impedance: 75 Ω
- Frequency Range: 0-6 GHz
- Voltage Rating: 170 VRMS
- Dielectric Withstanding Voltage: 500 volts
- VSWR: 1.06 @ 2.5 GHz for straight connectors
- Contact Resistance: Center contact 5 mΩ, Outer contact 2.5 mΩ
- Insulation Resistance: Minimum 10,000 MΩ
- Insertion Loss: 0.10 dB @ 1 GHz
Mechanical:
- Mating: Bayonet Positive Locking
- Braid/Jacket Cable Affixment: Hex crimp
- Center Conductor Cable Affixment: Solder / Crimp
- Contact Captivation: All types unless noted otherwise
- Connector Durability: Minimum 500 mating cycles
Material:
- Male Contact: Brass per QQB-626
- Female Contact: Beryllium copper per QQC-530, heat-treated per MIL-H-7199
- Contact Plating: 30 µ” Gold
- Body, Metal Parts: Brass per QQB-626
- Body/Metal Parts Finish: Nickel or Gold
- Insulator: PTFE
- Gasket: Silicone rubber
- Crimp Ferrule: Seamless copper tubing alloy
- Ferrule Finish: Nickel or Gold

Comparison: The document highlights the interconnect capacity of different BNC connectors within a 2.5x2.5” area:

Standard BNC: 25 interconnects
Mini BNC: 16 interconnects
HD BNC: 64 interconnects

Contact Information: Amphenol RF provides contact details for their offices in the USA and Asia, including phone and fax numbers.

Catalog excerpts

/ Crimp Mechanical Contact Captivation All types unless noted otherwise Connector Durability 500 mating cycles minimum Mating Bayonet Positive Locking Braid/Jacket Cable Affixment Hex crimp Center Conductor Cable Affixment Solder Material > Male Contact Brass per QQB-626 Female Contact Beryllium copper per QQC-530, heat-treated per MIL-H-7199 Contact Plating 30 Ք Gold Body, Metal Parts Brass per QQB-626 Body/Metal Parts Finish Nickel or Gold Insulator PTFE Gasket Silicone rubber Crimp Ferrule Seamless copper tubing alloy Ferrule Finish Electrical Impedance 75 Frequency Range 0-6 GHz Voltage Rating...
