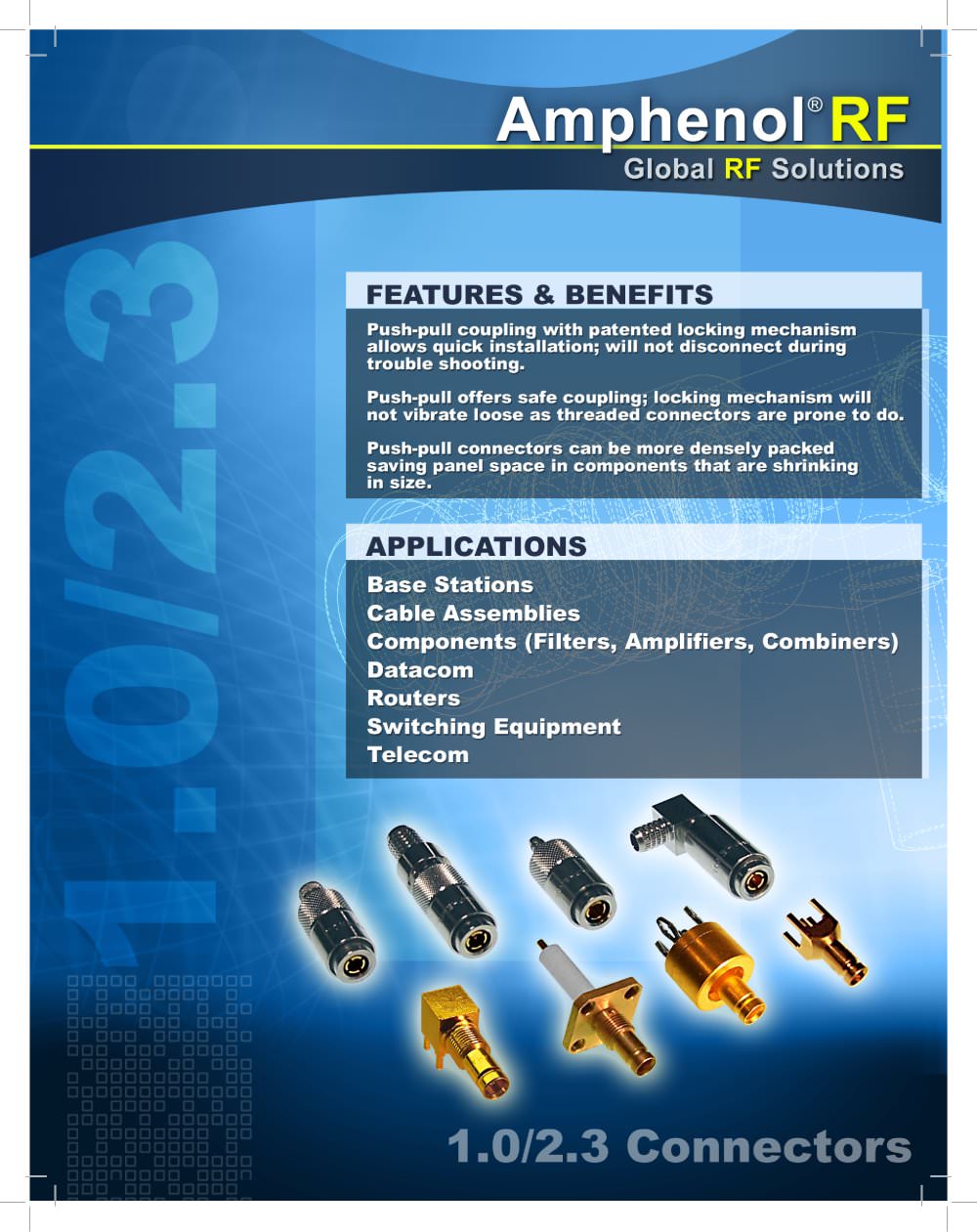

Amphenol RF 1.0/2.3 Brochure

Product catalog summary

Overview: The document describes the Amphenol 1.0/2.3 series coaxial connectors, highlighting their compact European design suitable for space-constrained applications. These connectors are available with either threaded or push-pull coupling mechanisms, the latter being patented for quick installation and secure locking.

Specifications:

Electrical: The connectors have an impedance of 50 Ω, operate within a frequency range of 0-10 GHz, and have a voltage rating of 250 volts peak. The contact resistance is 6 mili Ω for the center contact and 3 mili Ω for the outer contact, with an insulation resistance of 10,000 megaohms.
Mechanical: Mating options include slide-on, push-pull, and threaded. Cable affixment is achieved through hex crimp for braid/jacket and crimp or solder for the center conductor. All crimps have captivated contacts.
Material: Male contacts are made of brass with gold plating for the center and beryllium copper with gold plating for the outer. Female contacts are made of beryllium copper, and the insulator is Teflon. The crimp ferrule is made of copper alloy.
Environmental: The connectors operate within a temperature range of -40˚ C to +155˚ C and have a durability of 500 matings.

Compliance: The series complies with international specifications DIN 41626, DIN 47297, and NFC 93-571.

Contact Information: Amphenol RF is located in Danbury, CT, USA, and Shenzen, P.R. China, with contact details provided for both locations.

Catalog excerpts

Mechanical Material Male Contact Brass center gold plated, Beryllium copper outer gold plated Female Contact Beryllium copper center Insulator Teflon Crimp Ferrule Copper alloy Temperature Range -40˚ C to + 155˚ C Connector Durability 500 matings Electrical Mating Slide-on, push-pull, threaded Braid/Jacket Cable Affixment Hex crimp Center Conductor Cable Affixment Crimp or solder Captivated Contacts All crimps Impedance 50 Ω Frequency Range 0-10 GHz Voltage Rating 250 volts peak Contact Resistance Center contact: 6 mili Ω: Outer contact: 3 mili Ω Insulation Resistance 10,000 megaohms > M M Y...
