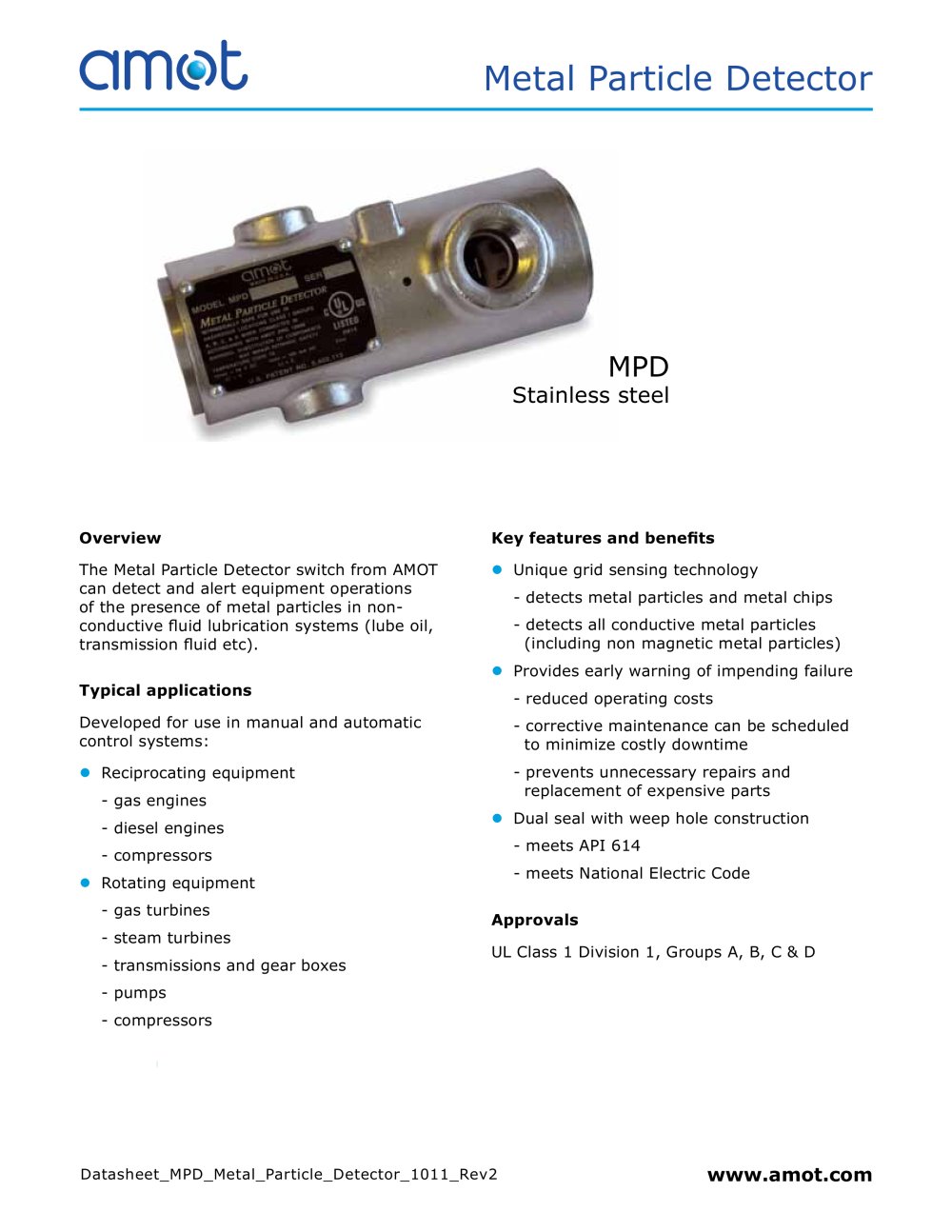

Metal Particle Detector The Metal Particle Detector switch from AMOT can detect and alert equipment operations of the presence of metal particles in non- conductive fluid lubrication systems (lube oil, Typical applications Developed for use in manual and automatic control systems: • Reciprocating equipment - diesel engines • Rotating equipment - steam turbines - transmissions and gear boxes • Unique grid sensing technology - detects metal particles and metal chips - detects all conductive metal particles (including non magnetic metal particles) • Provides early warning of impending failure - reduced operating costs - corrective maintenance can be scheduled to minimize costly downtime - prevents unnecessary repairs and replacement of expensive parts • Dual seal with weep hole construction - meets National Electric Code UL Class 1 Division 1, Groups A, B, C & D
Open the catalog to page 1Metal Particle Detector - MPD Installation For in depth installation instructions, refer to AMOT Form No. 1248 and Drawing No. 10956. Installation of the MPD is accomplished in four (4) steps: 1. Locating where the MPD will be mounted. The MPD must be located in a side stream of the lube oil / fluid system, after the pump but before the filter. (Refer to Figure 1). 2. Mounting the MPD. Mount the MPD with the grid in a horizontal position. It does not matter which process port is the IN port so long as the flow through the MPD is from top to bottom and the grid is on a horizontal plane. Two...
Open the catalog to page 2Metal Particle Detector - MPD Figure 2 - MPD Switch diagram CIRCUI T O PEN (N O P ARTICLES ON GRID ) CIRCUI T C LOSED (PARTICLES ON GRID) Metal particles gather on the MPD, s G rid to complete an electrical circuit. Metal particles gather on the MPD’s Refer to to complete an electrical grid right diagram . circuit. Refer to right diagram. Activation of the MPD switch occurs when metal particles bridge the gaps on its electrical grid and complete a normally open (N.O.) electrical circuit to drive an alarm or shutdown relay (refer to Figure 2). For installation refer to work instructions log...
Open the catalog to page 3Metal Particle Detector - MPD Service & Maintenance Refer to Figure 3, cross sectional. Prior to servicing or maintaining the MPD: Make sure all electricity is disconnected from the MPD. Ensure all process pressure is relieved from the grid compartment before removing the MPD’s end cap (block valve closed, bleed valve open). AMOT MPD requires minimal maintenance. Recommended maintenance would include removal and replacement of the MPD’s End Cap O-Rings (23 ), Grid O-Ring Seal (8), and Grid Board ( 2). Inspection of the aforementioned components should take place during the equipment’s...
Open the catalog to page 4Metal Particle Detector - MPD Electrical connections: Electrical connection: Grid electrical ratings: ViCon (Buns N optional) '/;" Threaded connection Temperature rating (Viton): Recommended wire gauge: Lead wire gauge: Flow coefficient: Grid specification: Grid space distance (std.) 1.6mm (1/16") UL Class, Division 1, Groups A, B, C & D Use the tables below to select the unique specification of your MPD Metal Particle Detector or specify the following information:
Open the catalog to page 5Metal Particle Detector - MPD Dimensions 160.3160.3 (6.312) 84.1 (3.312) 84.1mm 34.9 (1.375) 34.9 34.9 (1.375) 34.9 AMOT CONTROLS 63.563.5 DIA dia (2.500) Metal Particle Metal MPD Particle Detector Detector DISTANCE FOR GRID REMOVAL 57.2 MIN 57 (2.250) MIN PRIMARY 0-RING SEAL VENT OIL SUPPLY CONNECTIONS 1/2" - 14 NPT 41.3 41.3 (1.625) CONDUIT CONNECTION 3/4" - 14 NPT MOUNTING THREADS 5/16" - 18 UNC-28 X 0.625 FULL THREAD 20.6 20.6 (0.812) ND IN 41.3 (1.625) 41.3 DIA M R A S RE SU OIL U U TI O CA R PREN E ATE AND D 79.4 79.4 (3.125) IS OL 31.831.8 (1.250) OV ER I NG COV 39.7 39.7 (1.562)...
Open the catalog to page 6Metal Particle Detector - MPD Service kits Recommended spares/service parts Stainless steel version - Kit 10829X001 Ref. No. Qty. Description 2 1 Grid Viton 20 9 2 1 End Cap O-Ring Grid O-Ring Seal Datasheet_MPD_Metal_Particle_Detector_1011 page 7
Open the catalog to page 7Americas Asia and Australasia AMOT USA 8824 Fallbrook Dr Houston, TX 77064 USA AMOT Shanghai Rm 308, Building No A8 Jiahua Business Center 808 Hongqiao Road Shanghai 200030 China Tel Fax Email +1 (281) 940 1800 +1 (713) 559 9419 general: sales@amotusa.com orders: orders@amotusa.com customer service: cs@amotusa.com Europe, Middle East and Africa AMOT Western Way Bury St Edmunds Suffolk, IP33 3SZ England Tel +44 (0) 1284 762222 Fax +44 (0) 1284 760256 Email info@amot.com AMOT Controls GmbH Rondenbarg 25 22525 Hamburg Germany Tel +49 (0) 40 8537 1298 Fax +49 (0) 40 8537 1331 Email...
