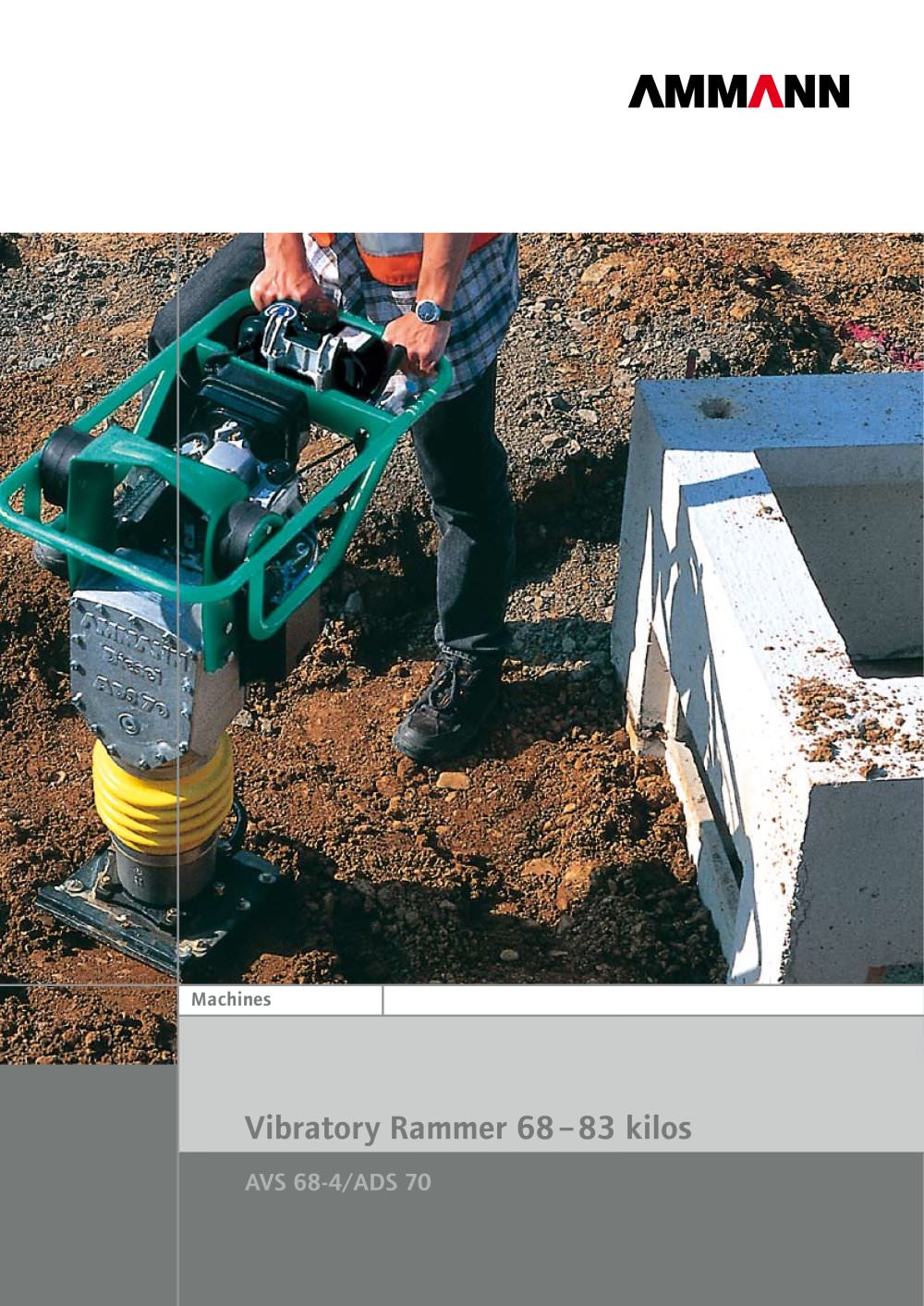

Vibratory Rammer 68– 83 kilos

Vibratory Rammer 68– 83 kilos

Product catalog summary

Overview: The document provides detailed information about two vibratory rammer models, AVS 68-4 and ADS 70, designed for universal application in construction. These machines are robust, ergonomically designed, and suitable for challenging conditions.

Specifications:

AVS 68-4: Weighs 68 kg, powered by a Honda GX 100 petrol engine with 2.2 kW output at 4300 rpm. It has a percussion rate of 680 blows/min and a stroke of 65 mm.
ADS 70: Weighs 83 kg, powered by a Yanmar L 48 AE diesel engine with 3.2 kW output at 3250 rpm. It has a percussion rate of 730 blows/min and a stroke of 60 mm.

Both models have a force per single blow of 95 J and a surface capacity of 210 m²/h.

Features:

Low vibration guide handle for fatigue-free operation.
Sturdy crankcase and additional rolls for easy loading.
Powerful one-spring percussion system.
Easy start with accessible recoil starter.
Throttle adjustment with automatic idle speed.
Diaphragm carburetor with choke.
Central lifting point for easy transport.
High-quality wear-resistant polyurethane ramming shoe with steel protection plate.
Integrated, easy-to-clean air filter.
Corrosion-free fuel tank.

Applications: Suitable for trench compaction, backfill, flooring for basements and industrial buildings, road repair, and work around bridge support columns.

Technical Data Summary:

Working width: 280 mm for both models.
Fuel tank capacity: 3 liters.
Travel speed: 13.5 m/min for AVS 68-4 and 12.5 m/min for ADS 70.
Optional foot sizes: 230 - 260 - 330 - 400 mm.

Contact Information: The document lists contact details for Ammann distribution and manufacturing companies across various countries including Switzerland, Germany, Czech Republic, France, United Kingdom, Poland, and the USA.

Catalog excerpts

The engine now is equipped with automatic oil alert system. ADS 70 requires regular diesel fuel and makes the separate storage of diffe- rent fuel types obsolete. > When a sturdy and powerful compaction ma-chine is required, we recommend the Diesel Rammer model > ADS 70 . With an operating weight of 83 kg and a reliable Yanmar Diesel engine this unit provides deep and fast com- paction work. Similar to large equipment on a job site the AVS 68-4 we are particularly focussing the more and more important as- pect of environment: thanks to the modern and powerful Honda 4-stroke petrol engine meeting...

Open the catalog to page 2

Full power with operators comfort in mind >

Open the catalog to page 3

Safe: Throttle adjustment with automatic idle speed Long life: corrosion free Fuel tank Operators comfort: Sure-grip and vibration isolated Easy to transport: Central lifting point Easy start: easy accessible recoil starter Clean Run: Integrated, finely meshed air filter easy to clean Diaphragm carburetor with choke additional rolls for easy loading and unloading Low Vibrations: Well balanced, low vibration guide handle for fatigue free working Reliable: Sturdy crankcase Additional handle for easy transport and loading The ramming shoe made of high quality wear resistant polyure-thane with integrated...

Open the catalog to page 4

AVS 68-4 ADS 70 mm 280 280 kg 68 83 Honda GX 100 Yanmar L 48 AEkW 2,2 3,2 4300 3250 blows / min 680 730mm 65 60J 95 95m Working widthWeight Operating weight Drive Engine / TypeEngine output at rpmVibration Percussion rate Stroke Force p. single blow Surface capacity Filling capacities Fuel tank capacity Fuel Motion Travel speed max. compaction performance* optional foot sizes widthDimensionsAVS 68-4 ADS 70 *depending on ground conditions > 2 / h 210 210 l 3 3l Petrol Dieselm / min 13,5 12,5cm 50 70mm 230 - 260 - 330 - 400mm A B C D width guide handle 340 280 670 1030 360 340 280 670 980 360 Specifications...

Open the catalog to page 5
