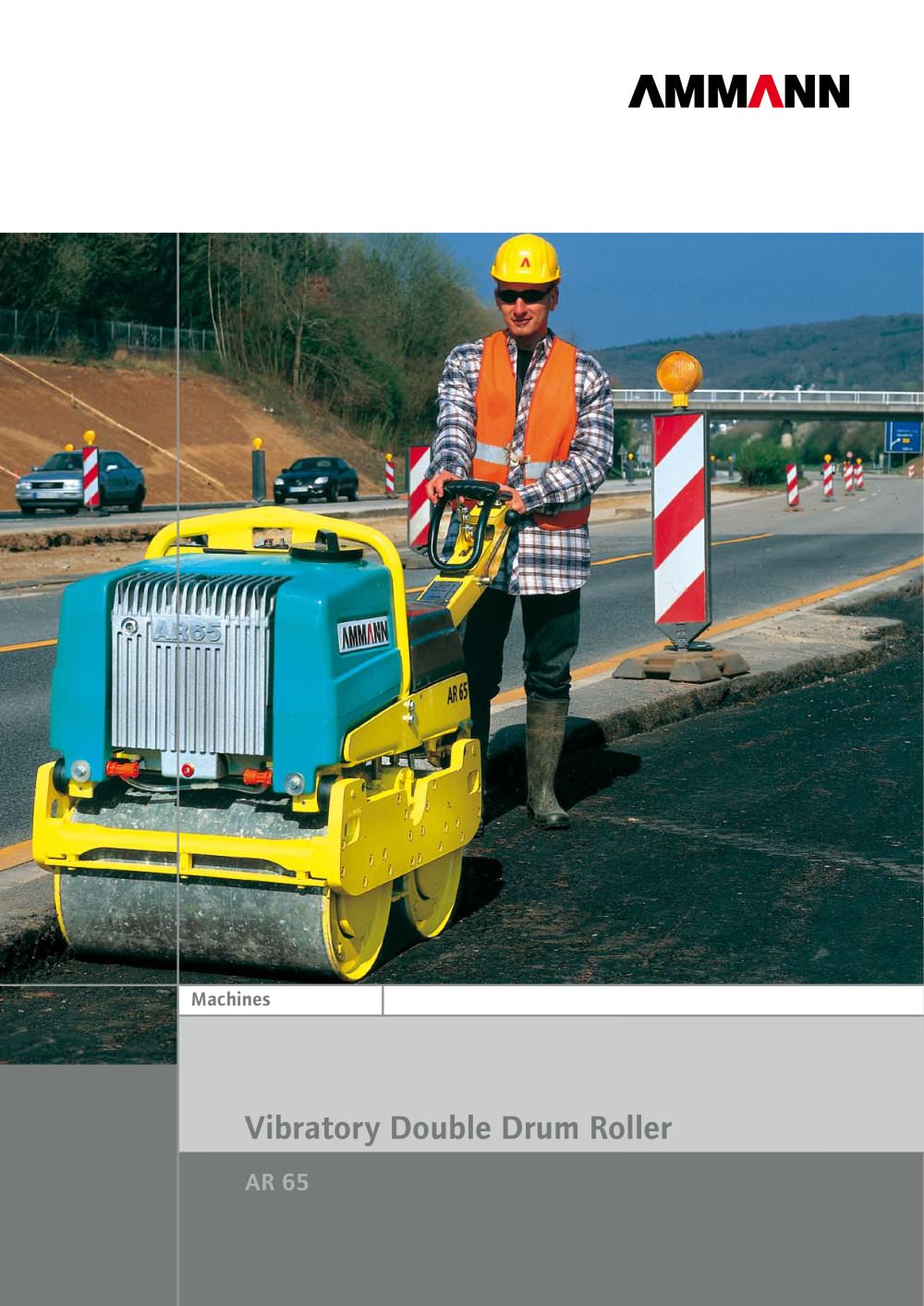

Vibratory Double Drum Roller

Vibratory Double Drum Roller

Product catalog summary

Overview: The AR 65 Vibratory Double Drum Roller is a versatile machine designed for multiple tasks, including soil compaction and asphalt consolidation. It features side clearance for work near curbstones and obstacles, and is equipped with powerful Hatz Diesel Engines.

Specifications: The roller offers two performance levels through amplitude adjustment: large amplitude for soil and gravel, and small amplitude for asphalt. It is available with Hatz 1 D 41 and Hatz 1 B 40 engines, the latter providing 15% more power. Both engines offer electric start options.

Safety Features: The machine prioritizes safety with a guide handle featuring a dead man's handle, a hydraulic parking brake, and a reduced reverse speed of 2.5 km/h.

Hydraulic System: The AR 65 is fully hydraulic, eliminating the need for mechanical parts like V-belts. It includes two hydraulic pumps for drive and vibration, ensuring smooth operation and minimal maintenance.

Technical Data: The roller has an operating weight of 720 kg (Hatz 1 D 41) and 700 kg (Hatz 1 B 40), with a working width of 650 mm. It offers a centrifugal force of 13/18 kN and a frequency of 60/55 Hz. The machine's travel speed is 4 km/h forward and 2.5 km/h reverse.

Additional Features: The roller includes a large 60L water tank, hydrostatic drive motors in both drums, and a foldable ergonomic handle. Optional equipment includes an operating hour meter and a front protection frame.

Contact Information: The document provides contact details for Ammann distribution and manufacturing companies across various countries, including Switzerland, Germany, Czech Republic, France, the UK, Poland, and the USA.

Catalog excerpts

The more powerful Hatz 1 B 40 version car- ries electric start as a standard feature. E-start is definitely a recommended option on the Hatz 1 D 41 version. Electric start: > Safety is our highest priority: Guide handle complete with dead mans handle Hydraulic parking brake Reduced reverse speed of 2.5 km/h The economical, unique and multiple task rol- ler, model AR 65, can be used for soil compac- tion as well as for asphalt consolidation. No more additional and time consuming work on edges and in confined areas: The side clearance on both sides allows com- paction work extremely close to curbstones,...

Open the catalog to page 2

Side Clearance on Both Sides >

Open the catalog to page 3

Air-cooled Hatz Diesel engine with integrated Oil Alert System powerful, service friendly and low emissions values The ergonomic and low vibration handle is foldable for easy trans-port. The integrated dead mans handle ensures maximum opera- tor safety Sturdy protection frame with central lifting point Hydrostatic lever for forward and reverse as well as centrifugal force adjustment Large Water tank (60L) made of wear resistant polyurethane water sprinkler system for com- paction work on bituminous material Standard feature: integrated hydraulic parking brake Hydrostatic adjustable eccentric...

Open the catalog to page 4

Vibratory Double Drum Roller

Vibratory Double Drum Roller
