Pneumatic tyred rollers, 10 to 24 t

Product catalog summary

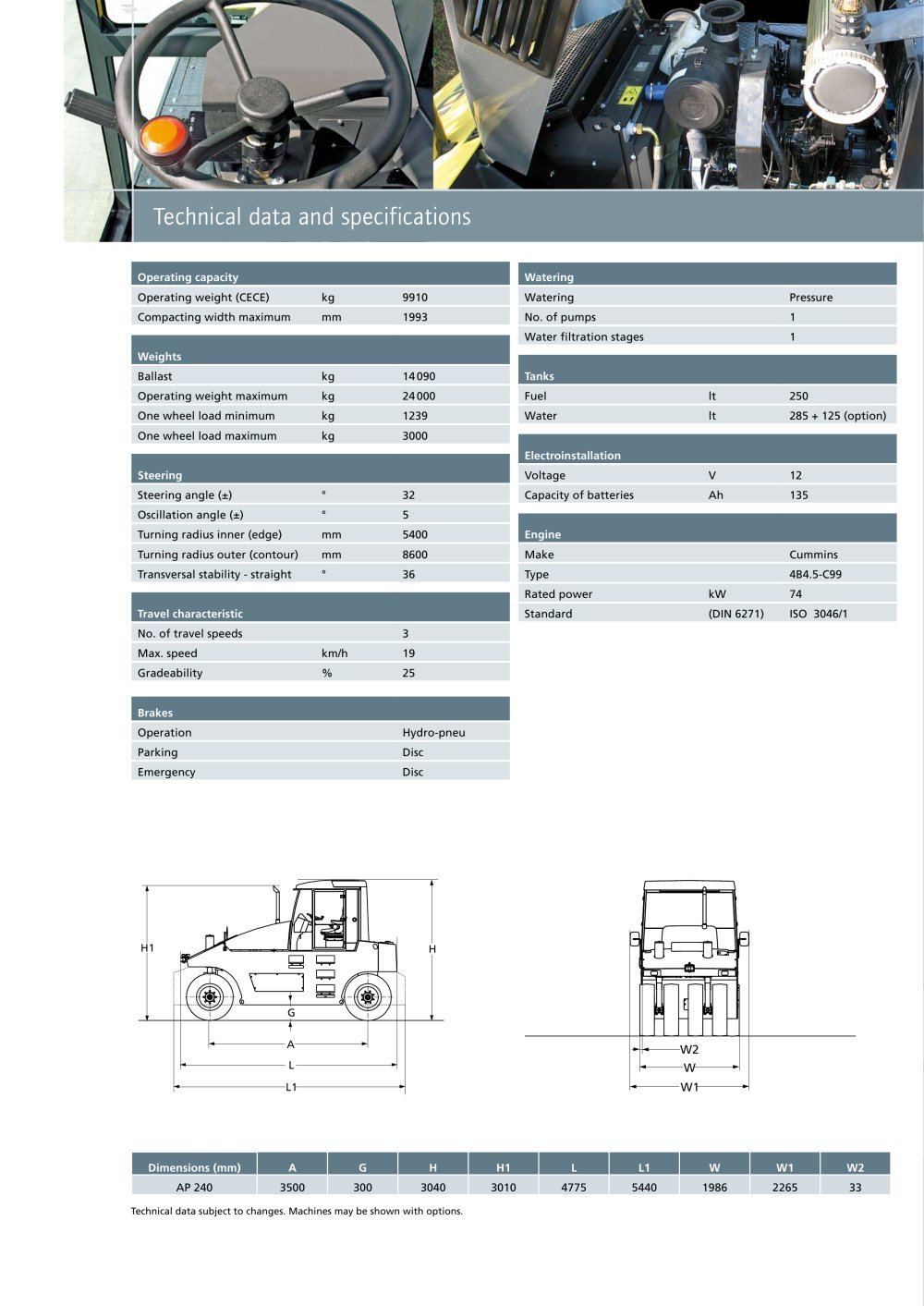

Technical Specifications

Operating Capacity: Operating weight (CECE) is 9910 kg with a maximum compacting width of 1993 mm.
Weights: Ballast weight is 14,090 kg, with a maximum operating weight of 24,000 kg. Minimum and maximum one wheel load are 1239 kg and 3000 kg, respectively.
Steering: The steering angle is ±32°, oscillation angle is ±5°, with inner and outer turning radii of 5400 mm and 8600 mm, respectively. Transversal stability is 36°.
Travel Characteristics: The machine has 3 travel speeds with a maximum speed of 19 km/h and a gradeability of 25%.
Brakes: Features hydro-pneumatic operation, disc parking, and emergency brakes.
Dimensions: Various dimensions are provided for different parts of the machine.
Watering System: Includes one pump and one stage of water filtration.
Tanks: Fuel capacity is 250 liters, with water tanks of 285 liters plus an optional 125 liters.
Electroinstallation: Operates on 12V with battery capacity of 135 Ah.
Engine: Powered by a Cummins 4B4.5-C99 engine with a rated power of 74 kW, compliant with ISO 3046/1 standards.

Performance and Features

High Performance: The AP 240 offers high compaction output and reliability, with a kneading effect for versatile usage across various applications.
Reliability: Features a hydrodynamic propulsion system, Cummins engine, and Spice-Clark gearbox for effective operation.
Output and Efficiency: Ballasting range from 9950 to 24,000 kg, with options for water ballast and thermal aprons. The engine and fuel tank support over 30 hours of continuous operation.
Operator Comfort and Safety: Includes a spacious cab with excellent visibility, heating, ventilation, and low noise levels.
Ballasting Space: Offers a large compartment with various ballast options, including water ballasting.
Front Axle: Isostatic front axle with hydrostatic suspension and small turning radius.
Compaction Abilities: Central tire inflation system and radial tires for improved asphalt compaction.

Standard and Optional Items

Standard Items: Include ventilated and heated cab, two operator workplaces, and various safety and operational features.
Optional Items: Include operator platform, tropical cooling fan, thermal aprons, ROPS and FOPS protection, air conditioning, and additional water tank, among others.
