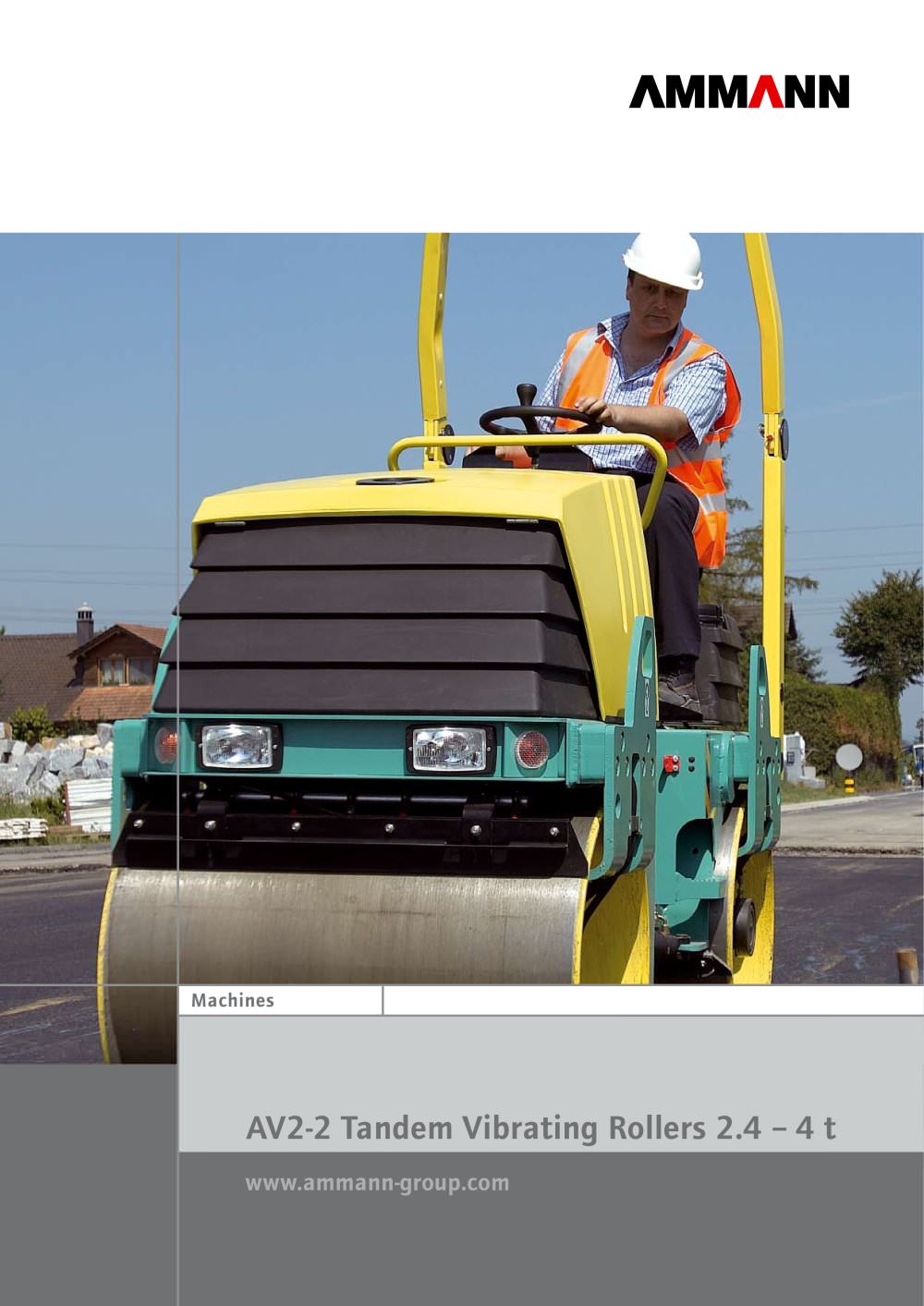

AV2-2 Tandem Vibrating Rollers 2.4 – 4 t

Product catalog summary

Overview of AV2-2 Tandem Vibrating Rollers
The AV2-2 Series of Tandem Vibrating Rollers are designed for medium construction sites, offering efficient compaction on both sublayer and asphalt surfaces. These machines are equipped with a high-torque, water-cooled Yanmar diesel engine, two working speeds, and two frequencies with centrifugal forces, ensuring optimal compaction results.

Key Features

Powerful Performance: Features include a large drum diameter, balanced weight distribution, and corrosion-free water tanks with multiple filtration systems.
Ease of Operation: The rollers have an easy-to-operate instrument panel, compact dimensions, and a rubber-mounted operator’s platform for smooth operation.
Maintenance: Designed for minimal maintenance with lifetime-lubricated bearings, a teflon-coated central articulation joint, and easily accessible maintenance points.
Safety: Includes a CE-Package with folding ROPS, emergency stop, and a comfort seat with a security belt.
Customization: The modular concept allows for customization to specific applications and optimization of spare parts management.

Model Variants

Tandem and Combination Rollers: Available in different versions with drum widths of 100, 120, or 130 cm.
Full-flush Models: These models allow the drum to compact completely against a wall, eliminating the need for additional tuning work.

Technical Specifications

Engine: Yanmar 3TNV88 EuroMot3A / EPA2 with power outputs of 19.8 kW / 27.0 HP at 2050 rpm and 23.2 kW / 30.6 HP at 2400 rpm.
Travel Speed: Ranges from 0 to 8 km/h with gradeability of up to 40% without vibration.
Vibration: Features two working speeds with frequencies of 59 Hz and 67 Hz, and centrifugal forces per drum ranging from 34 kN to 48 kN.
Capacities: Water tanks hold 80 + 120 liters, with additional options for anti-adhesive and hydraulic tanks.

Options and Accessories

CE-package with folding ROPS, road lighting, reversing alarm, and more.
Customizable options include customer color, lockable water tank, and biodegradable hydraulic oil.

Contact Information
For more details, contact Ammann distribution companies in Switzerland, Germany, Czech Republic, France, United Kingdom, Poland, and the USA.

Catalog excerpts

AV2-2 Tandem Vibrating Rollers 2.4 – 4 t-2

The AV2-2 Series of Tandem Vibrating Rollers are universal rollers designed for the use at medium construction sites. The AV2-2 Series are very efficient and effective machines when in use on sublayer as well as on asphalt compaction. >

Open the catalog to page 2

AV2-2 Tandem Vibrating Rollers 2.4 – 4 t-3

3 > Best access to the engine and service pointLife time lubricated central articulation joint Multiple water filtration for sprinkler system Road LightningSliding seat Optimum compaction results thanks to: high-torque, water-cooled three-cylinder Yanmar diesel engineՕ 2 working speeds 2 frequencies with 2 centrifugal forcesՕ Single or double vibration with double traction large drum diameter Օ balanced weight front and rear 2 large corrosion free water tanksՕ multiple water filtration 2 scrapers per drum High security with the AV/2 Vibrating Rollers: Օ CE-Package: Folding ROPS, emergency stop,...

Open the catalog to page 3

AV2-2 Tandem Vibrating Rollers 2.4 – 4 t-4

The AV2-2 Vibration Rollers can be delivered in different versions, as Tandem or Combination Rollers with a drum width of 100, 120 or 130 cm >

Open the catalog to page 4

AV2-2 Tandem Vibrating Rollers 2.4 – 4 t-5

The basic machine of the AV2-2 Series includes: Double tractionՕ Pressurised sprinkler system with multiple filtration 2 large corrosion free water tanks (80 l +120 l)Օ 2 working frequencies with 2 centrifugal forces drums can be in line or offset by 40 mmՕ 2 scrapers for each drum 4 point lifting hooks for easy transportationՕ Hours meter and diesel fuel gauge Ammann Standard dash board and emergency stop switchThe rollers can be equipped with a wide range of options. The vibration roller are also available as a combination roller AV 23-2K/26-2K/32-2K/40-2K. Together with both water tanks the...
