Ammann
Articulated tandem rollers, 10.5 - 12.5 t

Articulated tandem rollers, 10.5 - 12.5 t

Product catalog summary

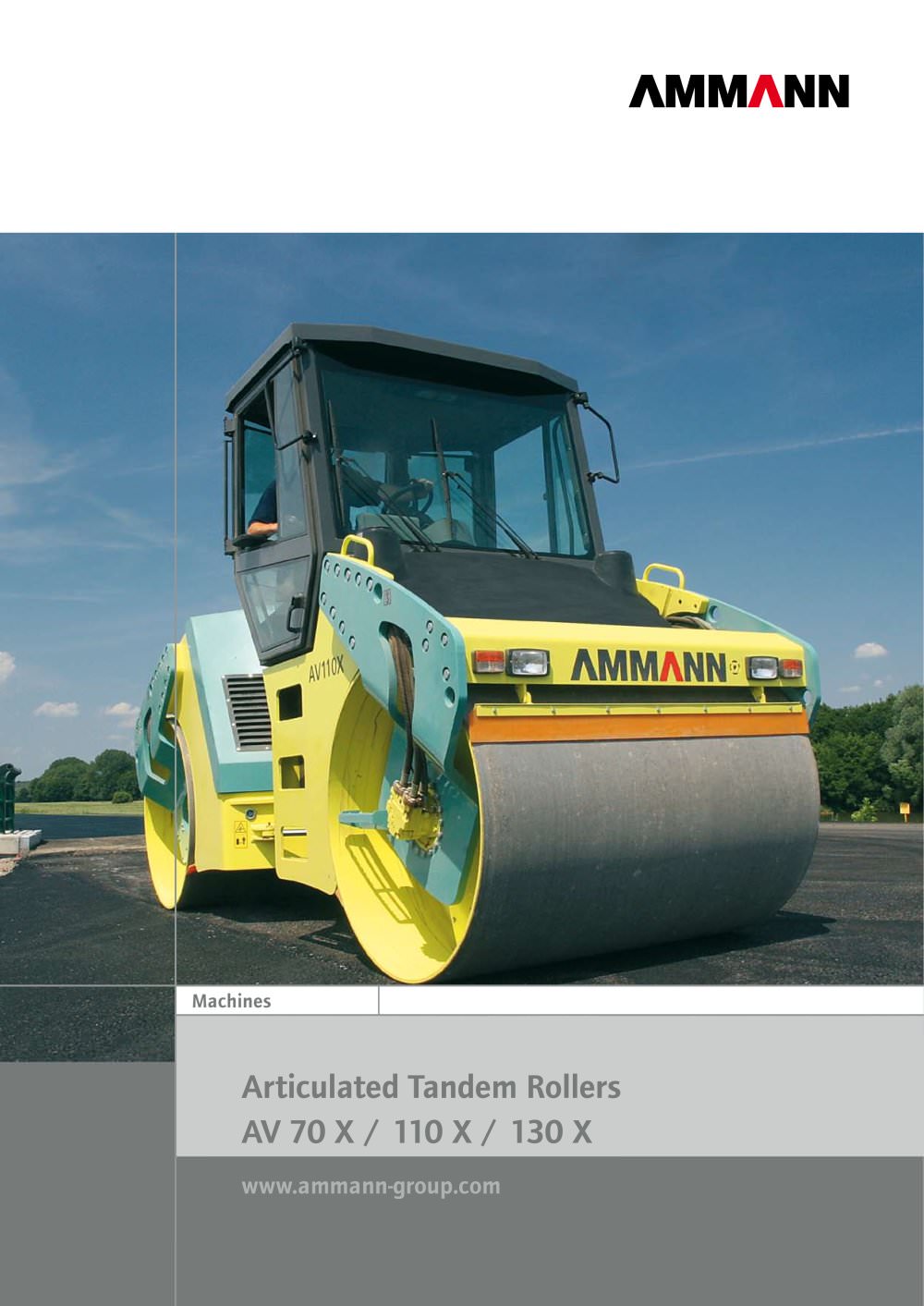

Overview: The document provides technical specifications and features of Ammann's articulated tandem rollers: AV 70 X, AV 110 X, and AV 130 X. These machines are designed for high compaction performance and operator comfort, suitable for road building projects.

Specifications:

Capacity: Operating weights range from 7,100 kg to 13,030 kg, with compacting widths from 1,450 mm to 2,100 mm.
Weights: Maximum operating weights are 7,500 kg, 11,000 kg, and 13,620 kg for AV 70 X, AV 110 X, and AV 130 X respectively.
Steering: Features include a steering angle of 35-36° and an oscillation angle of 6°.
Riding Characteristics: Maximum speeds range from 11.4 km/h to 12 km/h, with gradeability up to 42% without vibration.
Vibration: Amplitudes and frequencies vary across models, with centrifugal forces ranging from 78 kN to 130 kN.
Watering System: Pressure-based with 1-2 pumps and three filtration stages.
Engine: Powered by Cummins engines with rated power from 60 kW to 97 kW.

Features:

Cab: Includes integrated ROPS/FOPS, ventilation, heating, and excellent visibility. The driver's seat is adjustable and swivels.
Service and Maintenance: Easy access to engine service points and control ports, with isolation against heat and vibration.
Drums: Equipped with two amplitudes and frequencies for optimal compaction, with a reliable vibration system.
Drive and Control: Features a double pump system for independent drum operation and excellent traction.

Innovative Technology: The AV X line is designed for high compaction and driver comfort, featuring a double joint articulation point for crab-steering and optimal visibility.

Standard and Optional Items:

Standard: Includes CE conformity, ROPS/FOPS cab, hydrostatic propulsion, and a sprinkling system.
Optional: Features like air conditioning, additional working lights, and a radio are available.

Contact Information: The document lists contact details for Ammann distribution and manufacturing companies across various countries.
