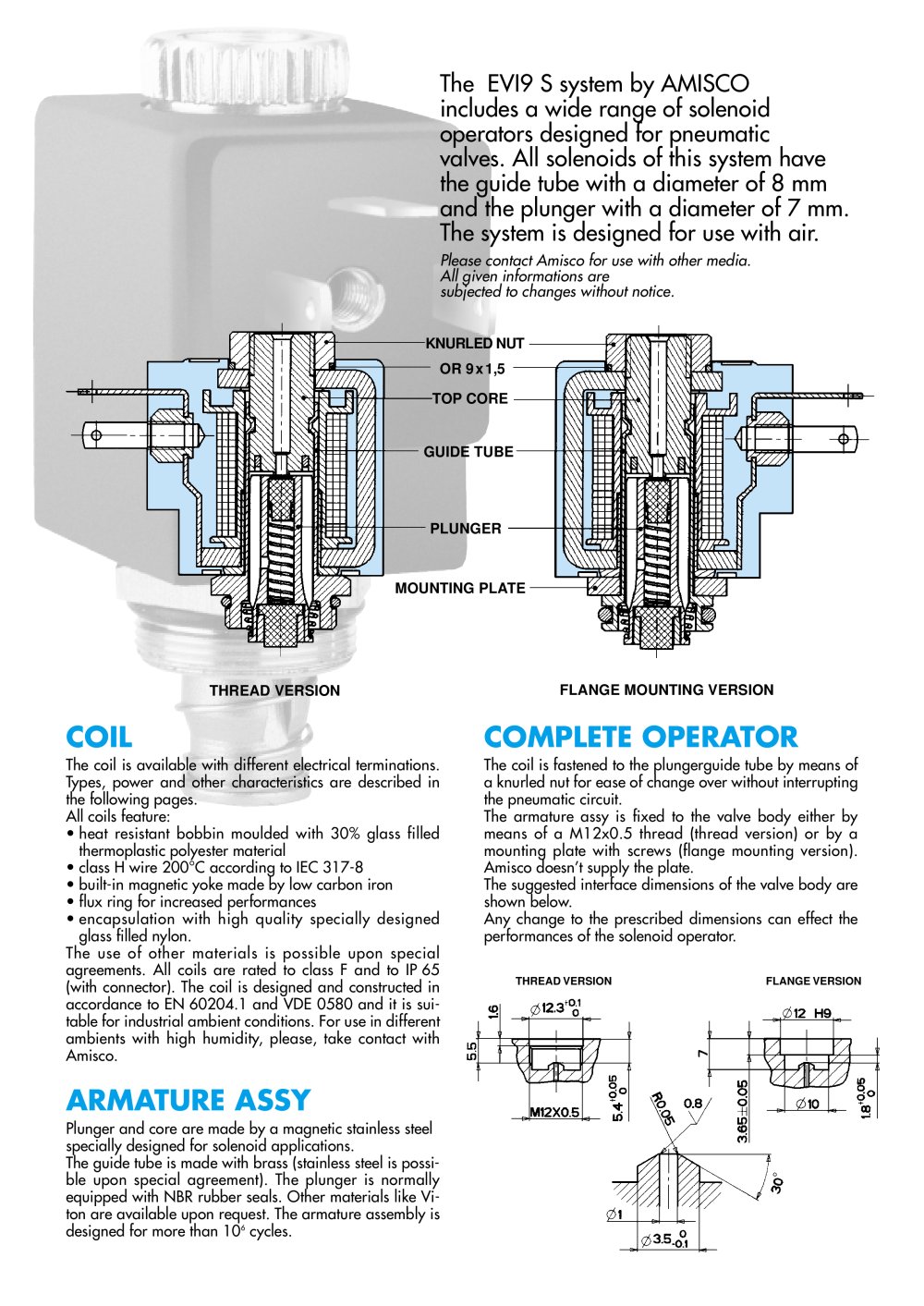

Please contact Amisco for use with other media. All given informations are subjected to changes without notice. > KNURLED NUTTOP COREGUIDE TUBEPLUNGERMOUNTING PLATE OR 9x1,5 THREAD VERSION FLANGE MOUNTING VERSION The coil is available with different electrical terminations.Types, power and other characteristics are described in the following pages. All coils feature: heat resistant bobbin moulded with 30% glass filledthermoplastic polyester materialՕclass H wire 200C according to IEC 317-8 Еbuilt-in magnetic yoke made by low carbon iron flux ring for increased performances Օencapsulation with high quality specially designedglass filled nylon.The use of other materials is possible upon special agreements. All coils are rated to class F and to IP65 (with connector). The coil is designed and constructed in accordance to EN60204.1 and VDE 0580 and it is sui- table for industrial ambient conditions. For use in different ambients with high humidity, please, take contact with Amisco. The coil is fastened to the plungerguide tube by means of a knurled nut for ease of change over without interrupting the pneumatic circuit. The armature assy is fixed to the valve body either by means of a M12x0.5 thread (thread version) or by a mounting plate with screws (flange mounting version). Amisco doesnt supply the plate. The suggested interface dimensions of the valve body are shown below. Any change to the prescribed dimensions can effect the performances of the solenoid operator. > THREAD VERSIONFLANGE VERSION Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications. The guide tube is made with brass (stainless steel is possi- ble upon special agreement). The plunger is normally equipped with NBR rubber seals. Other materials like Vi- ton are available upon request. The armature assembly is designed for more than 10 > 6 cycles. >

TYPE 09= EVI9 COIL BORING 08 = 8 mm Alternative possibilities ELECTRICAL CONNECTION S= AMP2,8x0,5D= DIN43650 C C= Flying leads SUPPLY CURRENT A= Alternating current (A.C.) D= Direct current (D.C.) R= Rectified alternating current NOMINAL VOLTAGE Example:024 = 24V220 = 220V WINDING CODE To be communicated by AMISCO SPECIAL FEATURES Z= StandardM= Different moulding material C= Different colour MARKING N= StandardT= Customer specifications B= No Marking > for CUSTOMER LOGO size="-1">

TYPE 07L= Flange 07F= Thread DRAWING NUMBER 05480 = SP 548/0 06260 = SP626/0 > SUPPLYCURRENT A= Alternating current D= Direct current FUNCTION 2 = 2/2 way 3 = 3/2 way FUNCTION C= Normally closed O= Normally open SEALS B= Low temperature NBR E= EPDM - V= Viton N= NBR - C= Neoprene FASTENING SYSTEM N= Without fastening system. Fastening nuts to be ordered separately as below: (Note: tightening torque max 0.6 Nm) > Aluminium knurled nutCod. 540222 O-RingCod.500355 OR9 X 1.5 size="-1">
