EVI7 S9
8Pages

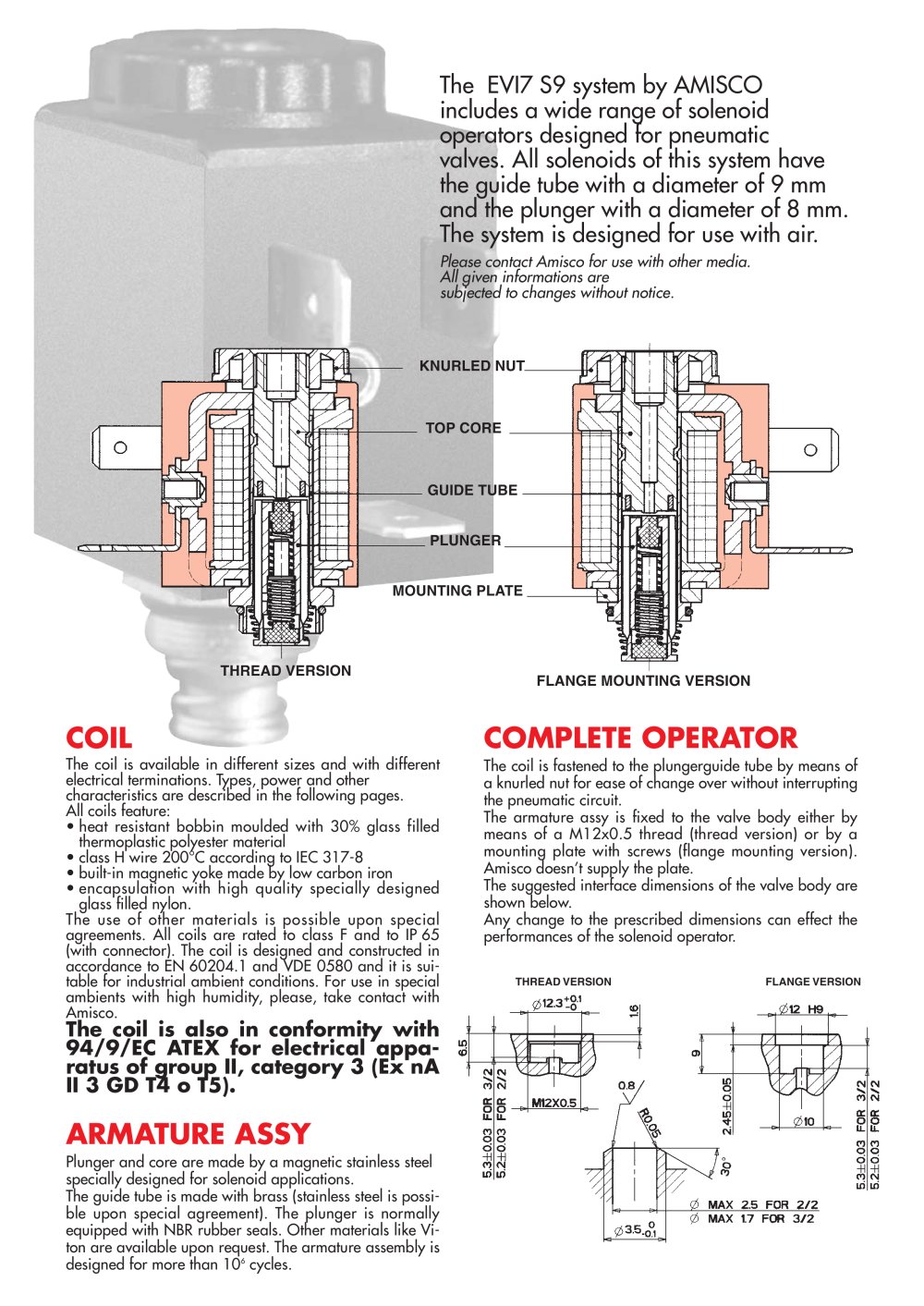

Please contact Amisco for use with other media. All given informations are subjected to changes without notice. > KNURLED NUTTOP COREGUIDE TUBEPLUNGERMOUNTING PLATETHREAD VERSIONFLANGE MOUNTING VERSION The coil is available in different sizes and with different electrical terminations. Types, power and other characteristics are described in the following pages. All coils feature: heat resistant bobbin moulded with 30% glass filledthermoplastic polyester materialՕclass H wire 200C according to IEC 317-8 Еbuilt-in magnetic yoke made by low carbon iron encapsulation with high quality specially designedglass filled nylon.The use of other materials is possible upon special agreements. All coils are rated to class F and to IP65 (with connector). The coil is designed and constructed in accordance to EN60204.1 and VDE 0580 and it is sui- table for industrial ambient conditions. For use in special ambients with high humidity, please, take contact with Amisco. The coil is fastened to the plungerguide tube by means of a knurled nut for ease of change over without interrupting the pneumatic circuit. The armature assy is fixed to the valve body either by means of a M12x0.5 thread (thread version) or by a mounting plate with screws (flange mounting version). Amisco doesnՒt supply the plate. The suggested interface dimensions of the valve body are shown below. Any change to the prescribed dimensions can effect the performances of the solenoid operator. > THREAD VERSIONFLANGE VERSION Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications. The guide tube is made with brass (stainless steel is possi- ble upon special agreement). The plunger is normally equipped with NBR rubber seals. Other materials like Vi- ton are available upon request. The armature assembly is designed for more than 10 > 6 cycles. >

TYPE 07 = EVI730 = EVI30 COIL BORING 09 = 9 mm ELECTRICAL CONNECTION S= AMP6,3x0,8 D= DIN43650 A or DIN43650B R= DIN43650 A with ground on top C= Flying leads SUPPLY CURRENT A= Alternating current (A.C.) D= Direct current (D.C.) R= Rectified alternating current NOMINAL VOLTAGE Example:024 = 24V220 = 220V WINDING CODE To be communicated by AMISCO SPECIAL FEATURES Z= StandardM= Different moulding material C= Different colour MARKING N= Standard T= Customer specifications B= No Marking Alternative possibilities > for CUSTOMER LOGO size="-1">

TYPE 09L= Flange 09F= Thread DRAWING NUMBER 06080 = SP 608/0 03641 = SP364/1 SUPPLYCURRENT A= Alternating current D= Direct current FUNCTION 2 = 2/2 way 3 = 3/2 way FUNCTION C= Normally closed O= Normally open SEALS B= Low temperature NBRE= EPDM - V= Viton N= NBR - C= Neoprene FASTENING SYSTEM N= Without fastening system. Fastening nuts to be ordered separately as below: (Note: tightening torque max 0.6 Nm) > Plastic knurled nutCod. 540238Plastic knurled nut for protected exhaustCod.540270Aluminium knurled nutCod.540201Weavy washer 8DIN 137 type ACod.535019 size="-1">

The product is developed to be used in ambients withtemperature range from 15ְC to +50C, and it has a power consumption of 3.8W for type T4 and 3W for type T5. The coil fits all Amisco standard operators 3/2 or 2/2 wayNC or NO, threaded or flange types. The > coil is supplied with 1,2mcable connession, other lenghts (from 1.5m to 10m) are available on request. All main voltages are available. The coil is certified by CESI in thermal class T4 (with coilsurface temperature max 135аC) or T5 (with coil surface temperature max 100C). For other technical specifications see below and backwards....

CodeCharacteristicsDCACAC50Hz60Hz 3009MW.Rated power DCW3Inrush power ACVA4.84 Rated power ACVA3.22.7 Coil temperature riseŰC351510 Copper temperature riseC4030253009M...W.Rated power DCW3.8Inrush power ACVA Rated power ACVA Coil temperature riseаC50 Copper temperature riseC5509Inlet orifice Иmm1.31.51.51.5Exhaust orifice mm1.41.41.41.43/2way NCWorking pressure bar0-100-100-100-10 09Inlet orifice ؘmm1.31.51.51.5 2/2way NCWorking pressurebar0-100-100-100-10 09Inlet orifice mm1.41.41.41.4 3/2way NOWorking pressurebar0-70-100-100-10 > Notes: Temperature range:ؖ15C з+50C Duty cycle:100% Voltage...
