EVI7 S10
6Pages

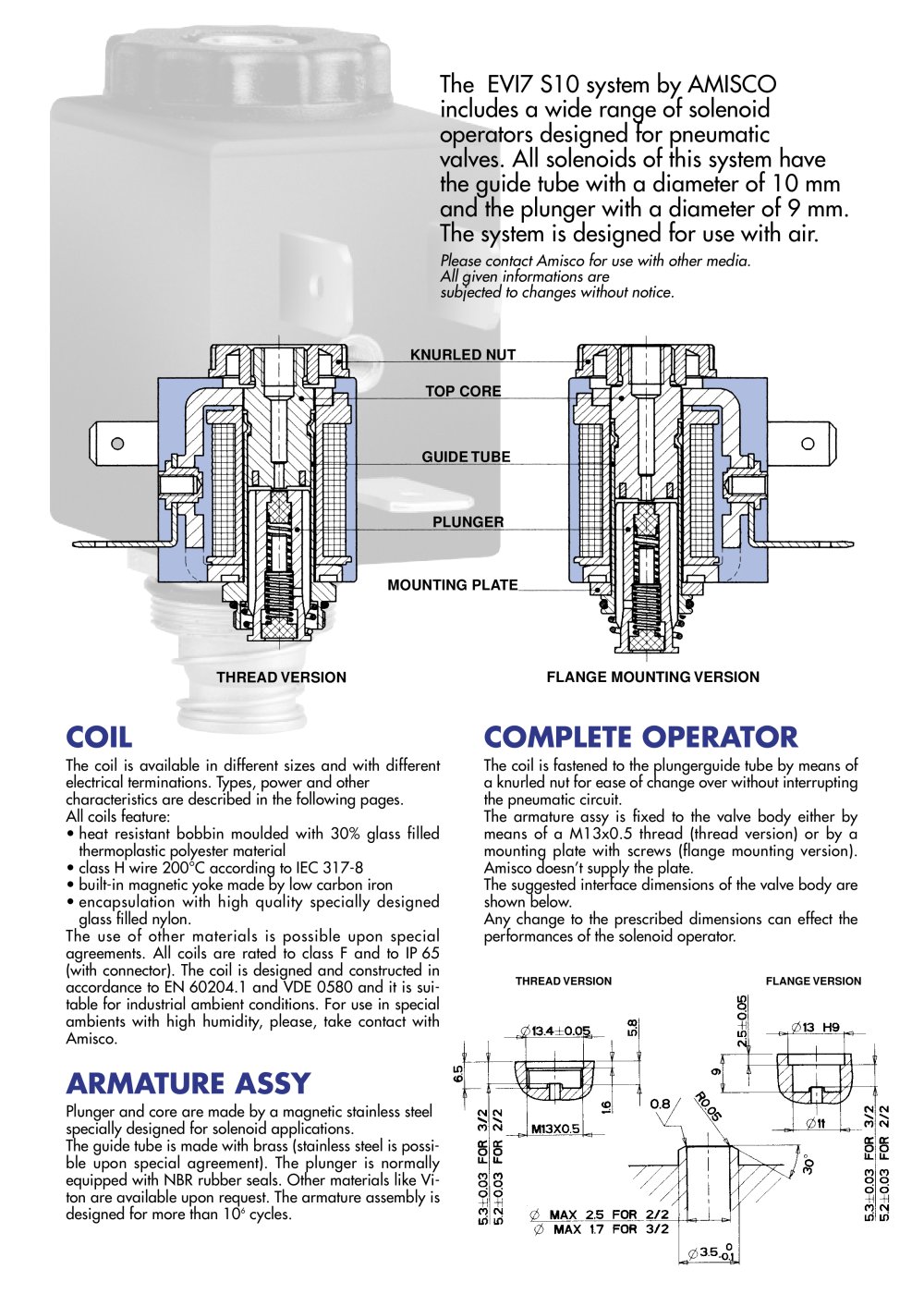

Please contact Amisco for use with other media. All given informations are subjected to changes without notice. > KNURLED NUTTOP COREGUIDE TUBEPLUNGERMOUNTING PLATEFLANGE MOUNTING VERSIONTHREAD VERSION The coil is available in different sizes and with differentelectrical terminations. Types, power and other characteristics are described in the following pages. All coils feature: heat resistant bobbin moulded with 30% glass filledthermoplastic polyester materialՕclass H wire 200C according to IEC 317-8 Еbuilt-in magnetic yoke made by low carbon iron encapsulation with high quality specially designedglass filled nylon.The use of other materials is possible upon special agreements. All coils are rated to class F and to IP65 (with connector). The coil is designed and constructed in accordance to EN60204.1 and VDE 0580 and it is sui- table for industrial ambient conditions. For use in special ambients with high humidity, please, take contact with Amisco. The coil is fastened to the plungerguide tube by means of a knurled nut for ease of change over without interrupting the pneumatic circuit. The armature assy is fixed to the valve body either by means of a M13x0.5 thread (thread version) or by a mounting plate with screws (flange mounting version). Amisco doesnՒt supply the plate. The suggested interface dimensions of the valve body are shown below. Any change to the prescribed dimensions can effect the performances of the solenoid operator. > THREAD VERSIONFLANGE VERSION Plunger and core are made by a magnetic stainless steel specially designed for solenoid applications. The guide tube is made with brass (stainless steel is possi- ble upon special agreement). The plunger is normally equipped with NBR rubber seals. Other materials like Vi- ton are available upon request. The armature assembly is designed for more than 10 > 6 cycles. >

TYPE 07 = EVI730 = EVI30 COIL BORING 10 = 10 mm Alternative possibilities ELECTRICAL CONNECTION S= AMP6,3x0,8D= DIN43650 A or DIN43650B C= Flying leads SUPPLY CURRENT A= Alternating current (A.C.) D= Direct current (D.C.) R= Rectified alternating current (R.A.C.) NOMINAL VOLTAGE Example:024 = 24V220 = 220V WINDING CODE To be communicated by AMISCO SPECIAL FEATURES Z= StandardM= Different moulding material C= Different colour MARKING N= StandardT= Customer specifications B= No Marking > for CUSTOMER LOGO size="-1">

TYPE 10L= Flange 10F= Thread DRAWING NUMBER 08311 = SP 831/1 08381 = SP838/1 > SUPPLYCURRENT A= Alternating current D= Direct current FUNCTION 2 = 2/2 way 3 = 3/2 way FUNCTION C= Normally closed O= Normally open SEALS B= Low temperature NBR E= EPDM - V= Viton N= NBR - C= Neoprene FASTENING SYSTEM N= Without fastening system. Fastening nuts to be ordered separately as below: (Note: tightening torque max 0.6 Nm) > Plastic knurled nutCod. 540238Plastic knurled nut for protected exhaustCod.540270Aluminium knurled nutCod.540201Weavy washer 8DIN 137 type ACod.535019 size="-1">
