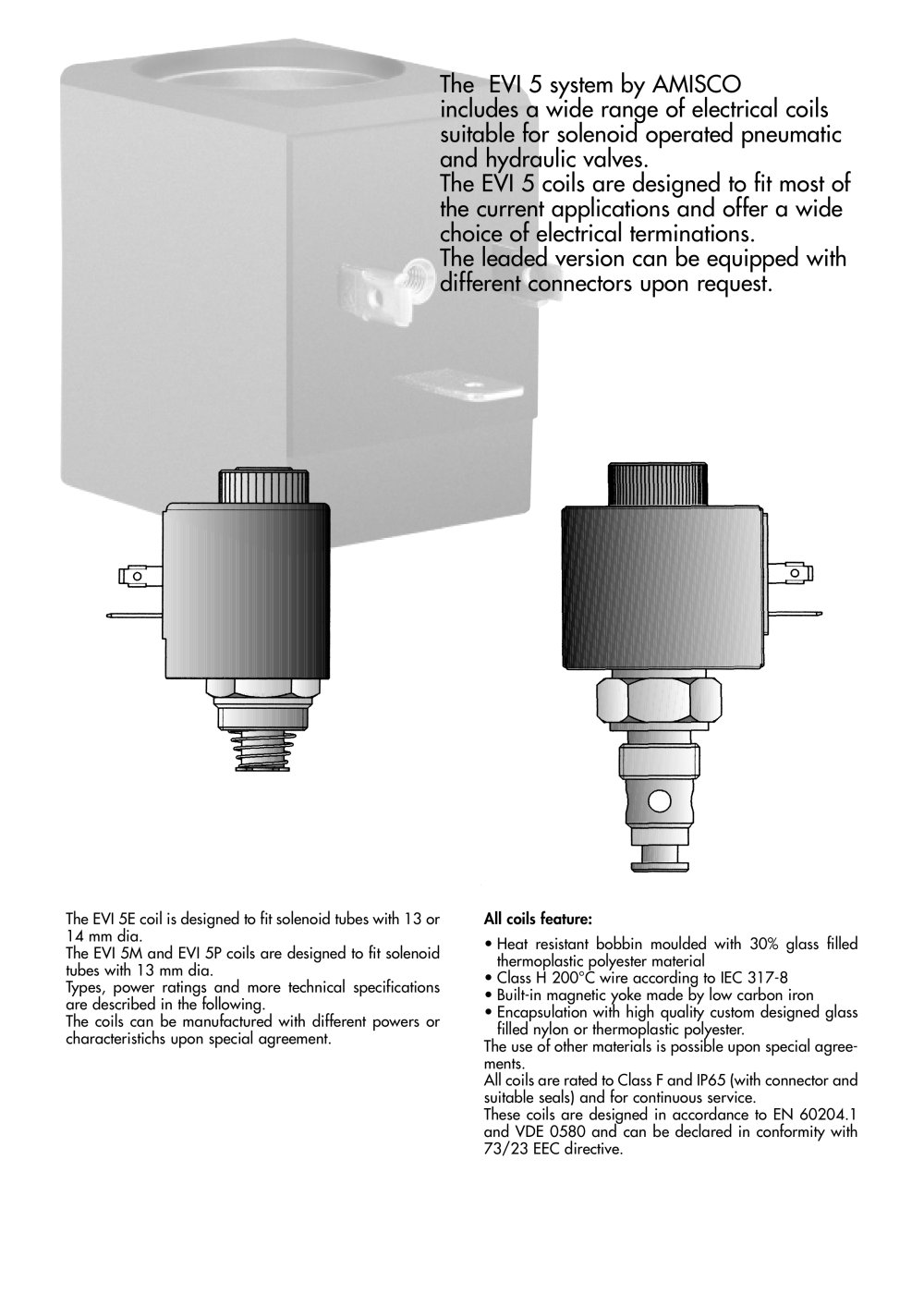

All coils feature: Heat resistant bobbin moulded with 30% glass filledthermoplastic polyester materialՕClass H 200C wire according to IEC 317-8 ЕBuilt-in magnetic yoke made by low carbon iron Encapsulation with high quality custom designed glassfilled nylon or thermoplastic polyester.The use of other materials is possible upon special agree- ments. All coils are rated to Class F and IP65 (with connector and suitable seals) and for continuous service. These coils are designed in accordance to EN 60204.1 and VDE 0580 and can be declared in conformity with 73/23 EEC directive. The EVI 5E coil is designed to fit solenoid tubes with 13 or14 mm dia. The EVI 5M and EVI 5P coils are designed to fit solenoid tubes with 13 mm dia. Types, power ratings and more technical specifications are described in the following. The coils can be manufactured with different powers or characteristichs upon special agreement. >

TYPE 5M= EVI5M 5E= EVI 5E 5P = EVI5P COIL BORING 13 = 13 mm 14 = 14 mm ELECTRICAL CONNECTION D= DIN 43650 AC= Flying leads A= AMP JUNIOR K= KOSTALM27x1 SUPPLY CURRENT A= Alternating current (A.C.) D= Direct current (D.C.) R= Rectified alternating current (R.A.C.) NOMINAL VOLTAGE Example:024 = 24V220 = 220V WINDING CODE To be communicated by AMISCO SPECIAL FEATURES Z= StandardM= Different moulding material C= Different colour MARKING N= StandardT= Customer specifications B= No Marking Alternative possibilities > for CUSTOMER LOGO size="-1">

Above-mentioned AC consumption have to be intended only as indicative.They may change according to the tube design solutions. Le specifiche ed i disegni tecnici qui contenuti sono reputati corretti e vengono forniti in buona fede, tuttavia non viene assunta alcuna responsabilit in merito agli stessi.Il Produttore si riserva il diritto di modificare senza preavviso tale specifiche e disegni per ragioni di natura tenica o commerciale. The specifications and drawings contained herein are believed to be correct and are given in good faith, however no liability is accepted therefore.Manufacturer reserves...

Above-mentioned AC consumption have to be intended only as indicative.They may change according to the tube design solutions. Le specifiche ed i disegni tecnici qui contenuti sono reputati corretti e vengono forniti in buona fede, tuttavia non viene assunta alcuna responsabilit in merito agli stessi.Il Produttore si riserva il diritto di modificare senza preavviso tale specifiche e disegni per ragioni di natura tenica o commerciale. The specifications and drawings contained herein are believed to be correct and are given in good faith, however no liability is accepted therefore.Manufacturer reserves...

Coil type EVI 5 E14 is suitable for pneumatics andhydraulics.TECHNICAL DATAPOWER: 10 Watt (standard)FORCE: see graph DUTY CYCLE: 100% ED (continuous) at power andtemperatures indicatedSTANDARD OPERATING VOLTAGES:DC 12-24 V AC 24-110-220 V Other voltages on requestOPERATINGVOLTAGE RANGE:max: 10% over the nominal voltage min: according to the specific applicationOPERATING TEMPERATURE RANGE:-20C з+50CDEGREEOFPROTECTION:IP 65 (EN 60529) with connector and suitable seals.COIL INSULATION: class F GENERAL CONSTRUCTION: According to EN 60204.1 and VDE 0580COIL MATERIALS: copper wire: class H 200аC encapsulant:...

Power Consumption CoilDCACType50/60 HzRated power DCW1317EVIInrush power ACVA 32/2737/31 5P/13Rated power ACVA 19/1622/18 Coil temperature riseC5570 45/3655/45 Copper temperature riseаC85105 86/72 100/85 > Above-mentioned AC consumption have to be intended only as indicative.They may change according to the tube design solutions. Le specifiche ed i disegni tecnici qui contenuti sono reputati corretti e vengono forniti in buona fede, tuttavia non viene assunta alcuna responsabilit in merito agli stessi.Il Produttore si riserva il diritto di modificare senza preavviso tale specifiche e disegni...
