EVI5 S13

Product catalog summary

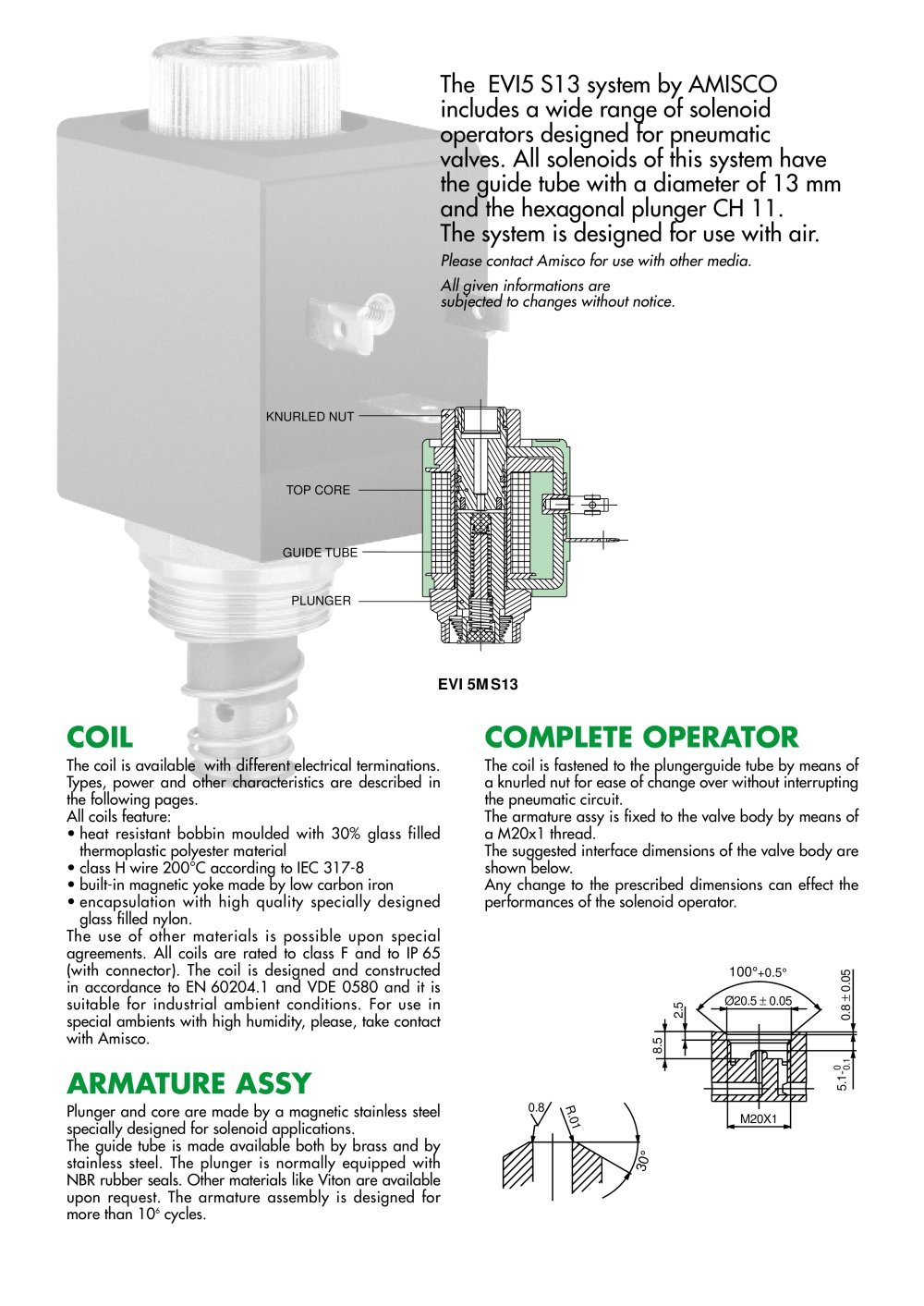

Overview: The EVI5 S13 system by AMISCO is a series of solenoid operators designed for pneumatic valves, featuring a 13 mm guide tube and a hexagonal plunger CH 11. It is primarily intended for use with air, with other media requiring consultation with AMISCO.

Coil Specifications: The coil is available with various electrical terminations and is constructed with heat-resistant materials, including a 30% glass-filled thermoplastic polyester bobbin and class H wire rated at 200°C. It includes a magnetic yoke made of low carbon iron and is encapsulated in glass-filled nylon. Coils are rated to class F and IP 65 with a connector, adhering to EN 60204.1 and VDE 0580 standards.

Armature Assembly: The plunger and core are made from magnetic stainless steel, with guide tubes available in brass or stainless steel. Standard seals are NBR rubber, with Viton available upon request. The assembly is designed for over 1 million cycles.

Complete Operator: The coil is attached to the plunger guide tube with a knurled nut, allowing easy changes without disrupting the pneumatic circuit. The armature assembly is secured to the valve body with an M20x1 thread. Interface dimensions are critical for performance.

Solenoid Systems: Suitable for 3/2 and 2/2 way normally closed and open valves, with specific electrical termination codes and power ratings. The system supports a working pressure of 0-10 bar and various voltage options, with a duty cycle of 100%.

Operator Coding Specifications: Includes details on fastening nuts, seals, function types, and supply current options. Fastening nuts are ordered separately, and the system supports both AC and DC currents.

Coil Coding Specification: Details on coil boring, electrical connection types, nominal voltage, and special features. Options for customer-specific markings and alternative materials or colors are available.

Catalog excerpts

KNURLED NUTTOP COREGUIDE TUBEPLUNGER >

Open the catalog to page 1

TYPE 13F = Thread DRAWING NUMBER Example: 05072 = SP 577/2 06871 = SP687/1 SUPPLYCURRENT A= Alternating current D= Direct current FUNCTION 2 = 2/2 way 3 = 3/2 way FUNCTION C= Normally closed O= Normally open SEALS B= Low temperature NBR E= EPDM - V= Viton N= NBR - C= Neoprene FASTENING SYSTEM N= Without fastening system. Fastening nuts to be ordered separately as below: (Note: tightening torque max 0.6 Nm) > Aluminium knurled nutCod.540224 size="-1">

Open the catalog to page 4

Note: the plunger sliding-tube is available both in brass and in stainless steel > Note: the plunger sliding-tube is available both in brass and in stainless steel >

Open the catalog to page 5

TYPE 5M = EVI5M COIL BORING 13 = 13 mm Alternative possibilities ELECTRICAL CONNECTION D= DIN43650 AC= Flying leads SUPPLY CURRENT A= Alternating current (A.C.) D= Direct current (D.C.) R= Rectified alternating current (R.A.C.) NOMINAL VOLTAGE Example:024 = 24V220 = 220V WINDING CODE To be communicated by AMISCO SPECIAL FEATURES Z= StandardM= Different moulding material C= Different colour MARKING N= StandardT= Customer specifications B= No Marking > for CUSTOMER LOGO size="-1">

Open the catalog to page 6
