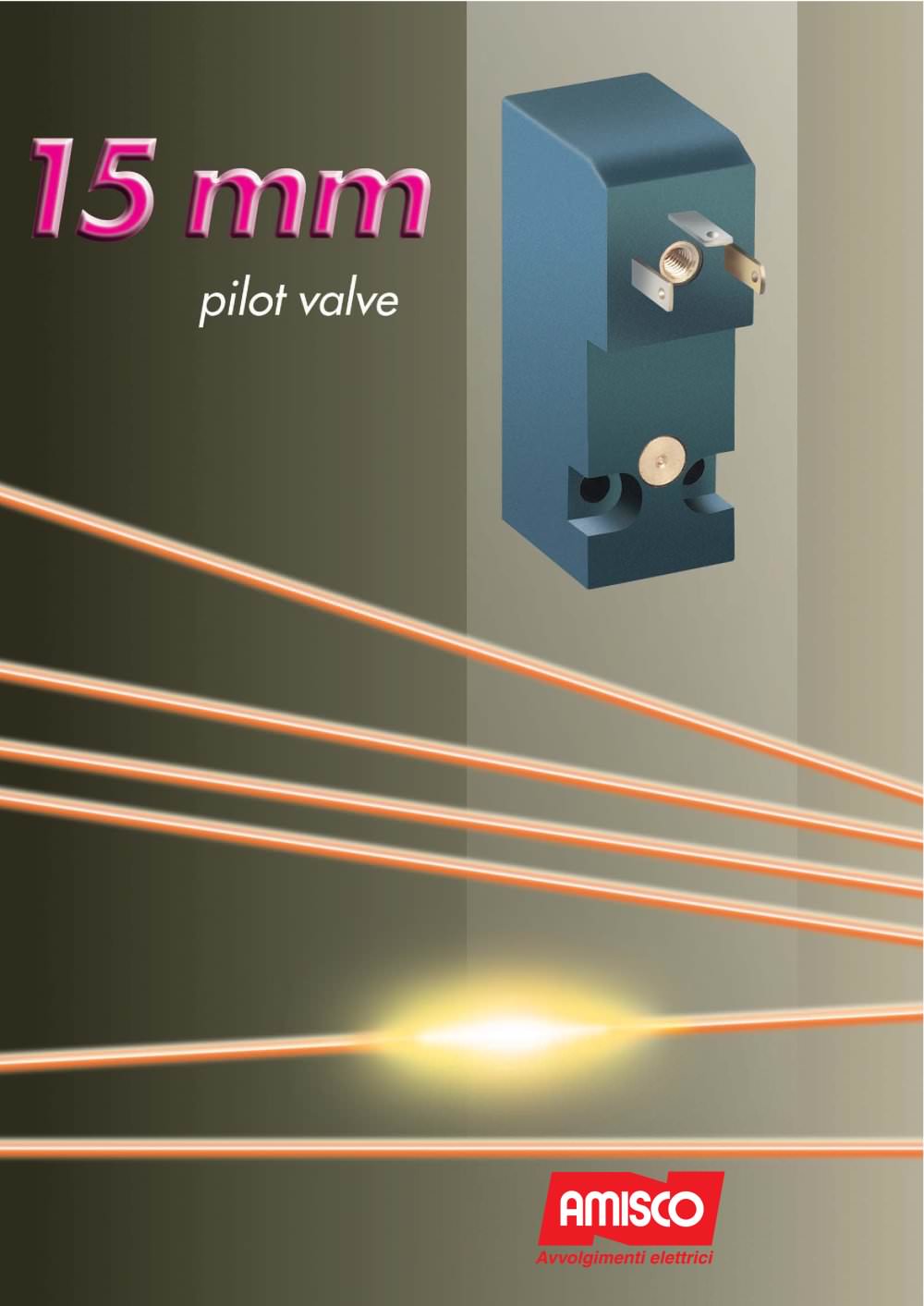

15 mm pilite valve

Product catalog summary

Overview: The document provides technical specifications and details for a 15mm pilot valve designed by Amisco. It is suitable for industrial environments and complies with various international standards, including EN 60204.1, VDE 0480, and ATEX 94/9/EC for electrical apparatus.

Specifications: The valve is designed for use with air, either dried or lubricated, and offers multiple valve functions: 3/2 NC, 3/2 NO, 2/2 NC, and 2/2 NO. It operates within a pressure range of 0 to 10 bar and has an orifice size ranging from 0.8 to 1.5 mm. The response time is between 5 to 15 ms, with a cycling time of 2000 cycles per minute and a life expectancy of 50 to 100 million cycles.

Materials and Construction: The coil is made from glass-reinforced Polyamide 6.6, with copper wire class H 200°C according to IEC 317-8. The valve body is constructed from PPS, and the seals are available in NBR, Viton, or EPDM. The core and springs are made from stainless steel.

Electrical and Mechanical Features: The valve supports various electrical connections, including Amp 2.8 x 0.5, DIN 43650 C, flying leads, and M12. It operates on voltages of 12-24V DC and 24-115-230V AC, with a power consumption of 1 to 2.5 W (DC) and 3 VA (AC). The insulation class is F, and it offers degrees of protection IP 65 and IP 67.

Customization and Options: The valve can be customized with different seal materials, manual override options, and winding configurations. It can be assembled with pneumatic and electrical ports on either the same or opposite sides. Additional specifications and customer-specific logos are available upon request.

Compliance and Standards: The product is UL-listed and conforms to international standards for safety and performance, ensuring reliability in high cycling rate applications.

Catalog excerpts

Different electrical connections are available.The configuration of the valve unit can be with the pneumatic ports on the same side of the electrical connections or on the opposite side.All the pneumatic connections are located in thevalve body and the Amisco 15mm pilot valve is suitable for the use of subbases or the assem- bling in batteries, for common pressure and exhaust location.More technical specifications are reported in thefollowing pages. All the 15mm pilot valves feature:heat resistant bobbin moulded with 30% glassfilled polyester (PBT)Օclass H200C copper wire according to IEC317-8Еencapsulation...

Open the catalog to page 2

Valve function: 3/2 NC - 3/2 NO - 2/2 NC - 2/2 NO Media: air, dried or lubricated Orifice size: 0,8 to 1,5 mm Pressure: 0 to 10 bar Response time: 515 ms Cycling time: 2000 cpm Life time expectancy: 50100 milion cycles Duty cycle: ED 100% Temperature: ambient-10緰C to + 50Cfluid-10аC to + 30C Power: 1 to 2,5 W (DC)3 VA (AC) Voltages: 12-24V DC 24-115-230V AC (other voltages on request) Voltage variation:б 10% Insulation class: F Degrees of protection: IP 65 (according to EN 60529) with connector assembled with suitable sealIP 67 flying leads and M12 version Electrical connection: Amp 2,8 x 0,5...

Open the catalog to page 3

15 = 15mm pilot valve sealcod. 534044 (NBR) cod. 534075 (FKM V80B755)aluminium plate + sealcod. 534047 (aluminium plate + NBR seal) cod. 534076 (aluminium plate + FKMV80B755 seal)Screw M3x18TC(2 pcs for each pilot) cod. 540177 > S1= Industrial 9,4mm 3 pins (*) D1= DIN43650 C 8,0mm 3 pins (*) C1= Std Flying leads (105C) C2= HT Flying leads (140аC)M1= M12 (*) also available without ground terminal for voltage <48V:S2 - D2 > A= 2,5W B= 1,0W C= 3VA Other winding configurations available on demande > 1= pneumatic and electrical ports on the opposite side2= pneumatic and electrical ports on the same...

Open the catalog to page 7

15 mm pilite valve

15 mm pilite valve
