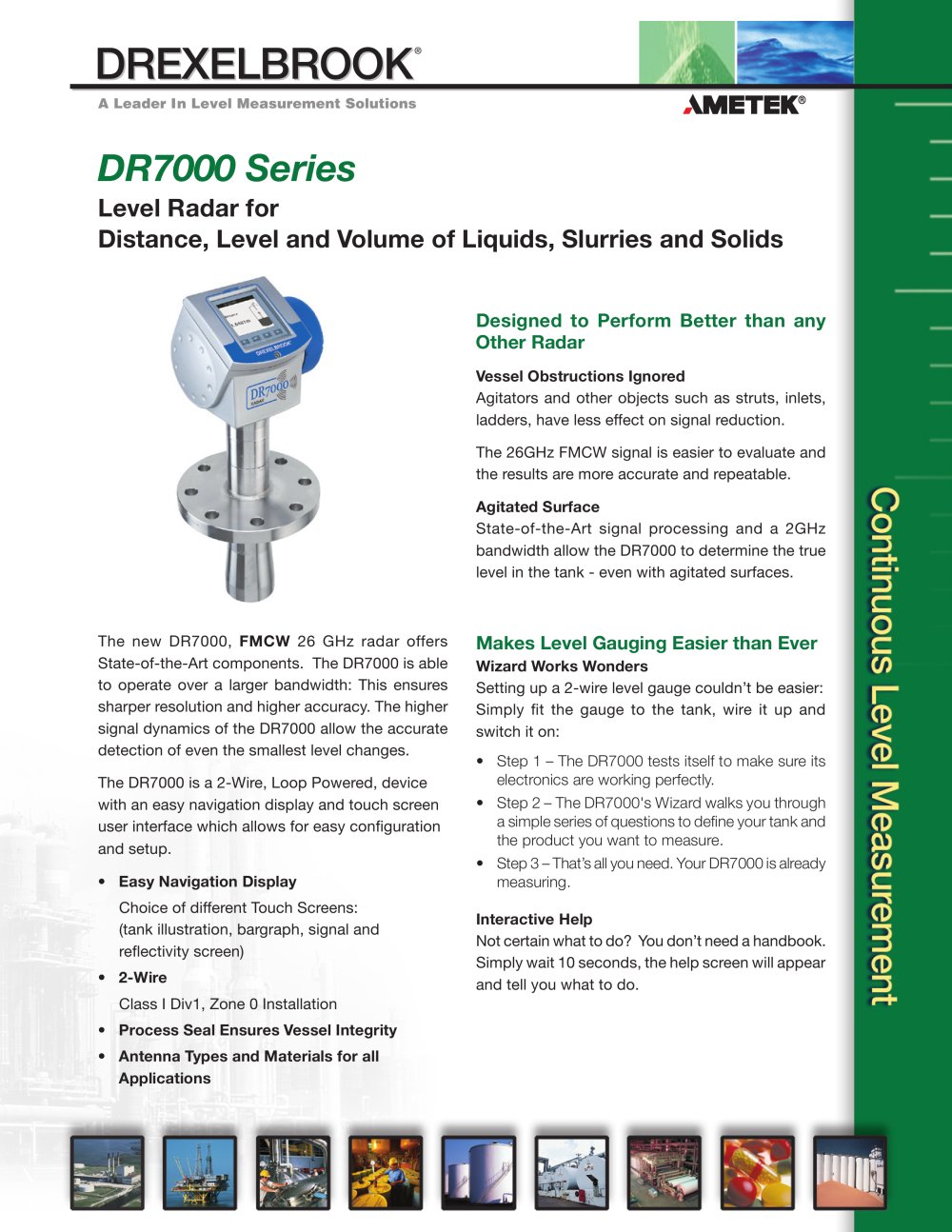

A Leader In Level Measurement Solutions Vessel Obstructions Ignored Agitators and other objects such as struts, inlets, ladders, have less effect on signal reduction. The 26GHz FMCW signal is easier to evaluate and the results are more accurate and repeatable. Agitated Surface State-of-the-Art signal processing and a 2GHz bandwidth allow the DR7000 to determine the true level in the tank - even with agitated surfaces. The new DR7000, FMCW 26 GHz radar offers State-of-the-Art components. The DR7000 is able to operate over a larger bandwidth: This ensures sharper resolution and higher accuracy. The higher signal dynamics of the DR7000 allow the accurate detection of even the smallest level changes.The DR7000 is a 2-Wire, Loop Powered, device with an easy navigation display and touch screen user interface which allows for easy configuration and setup. > Ε Easy Navigation Display Wizard Works Wonders Setting up a 2-wire level gauge couldnt be easier: Simply fit the gauge to the tank, wire it up and switch it on: Choice of different Touch Screens: (tank illustration, bargraph, signal and reflectivity screen) ҕ Step 1 The DR7000 tests itself to make sure its electronics are working perfectly.֕ Step 2 The DR7000's Wizard walks you through a simple series of questions to define your tank andthe product you want to measure.֕ Step 3 That֒s all you need. Your DR7000 is already measuring. 2-Wire Class I Div1, Zone 0 Installation Օ Process Seal Ensures Vessel Integrity Antenna Types and Materials for all Applications Interactive Help Not certain what to do? You donՒt need a handbook. Simply wait 10 seconds, the help screen will appear and tell you what to do. >

Open the catalog to page 1

Approvals Process Connection Electrical Connection - Human machine interface CE-Mark Conforms to applicable EU directives. ATEX Ex ia ATEX II 1 G D or II 1/2 G D or II 2 G D; KEMA 04ATEXxxxxX EEx ia IIC T6T3 T65ŰC T90ŰC IP 6X Exd ATEX II 1/2 G D or II 2 G D; EEx d [ia] IIC T6...T3 T65C Ѕ T90C IP 6X FM Ex ia Intrinsically Safe (IS) CSA IS CL I, DIV 1, GR A,B,C,D DIP CL II, III, DIV 1, GR E,F,G NI ANI CL I, DIV 2, GR A,B,C,D (FM Only) DIP CL II, III, DIV 1 GR E,F,G Sensor Probe suitable for use in DIV 1 or ZONE 0 DIV 1 or ZONE 0 CL I, Zone 0, AEx ia IIC CL I, Zone 2, GR IIC T6, Ta = 60а C Ex...

Open the catalog to page 2

Process ConnectionDN 40 Std.DN 40 LongDN 50 Std.DN 50 LongDN 80 Std.DN 80 Long 1 1/2" NPT Threaded 1 1/2" G Threaded ANSI FlangeEN FlangeJIS Flange1 1/2" DN 4040A 2"DN 4050A 3"DN 8080A > 3"DN > 80>80A Prefered Possible, Consult Factory >
