Overview: The Drexelbrook 2867102-DRX is a wireless I/O interface DIN rail transmitter/receiver set designed for level measurement solutions. It eliminates the need for cables and conduits by using wireless technology to transmit data.

Features:

1 watt transmit power.
Wireless conduit for one 4-20 mA and two digital signals.
Interference-free operation using Frequency Hopping Spread Spectrum technology.
Operates in the license-free 902-928 MHz ISM band.
Easy installation with no setup or programming required.
Range of 600-1000 feet in-plant without line-of-sight.
Approved for hazardous area installation (UL, CUL, and CSA approved).

Applications: Suitable for SCADA systems, PLC/RTU extensions, pump control, water/wastewater management, oil and gas, petrochemical, tank level monitoring, mills, quarries, factories, sensor monitoring, utilities, and irrigation systems.

Benefits: Reduces labor and installation costs, eliminates the need for conduit and wiring, and ensures reliable and dependable operation.

Technical Specifications:

Transmit Power: 1 watt.
Range: 600-1000 feet in-plant, 4-5 miles line-of-sight with raised antennas, 20+ miles with professional propagation study and directional antennas.
Frequency: 902-928 MHz.
Power Source: 12 V to 30 VDC (regulated).
Power Consumption: 8.4 watt peak, 1.8 watt average.
Inputs: 1 x 4-20 mA analog, 2 x 5 to 30 VAC/DC digital.
Outputs: 1 x 4-20 mA analog, 3 x 120 VAC 0.5 digital (dry contact).
Max. Loop Impedance: 150 to 1350 ohms for power supply voltages of 12-30 VDC.
Repeatability: 0.02%.
Accuracy: 0.2% of full scale.

General Specifications:

Temperature Rating: -40° to +70°C (-40° to +158°F).
Dimensions: 102 x 114 x 17.5 mm (4 x 4.5 x 0.7 inch).
Approvals: UL Listed (Class 1, Division 2 Groups A, B, C, and D).

Catalog excerpts

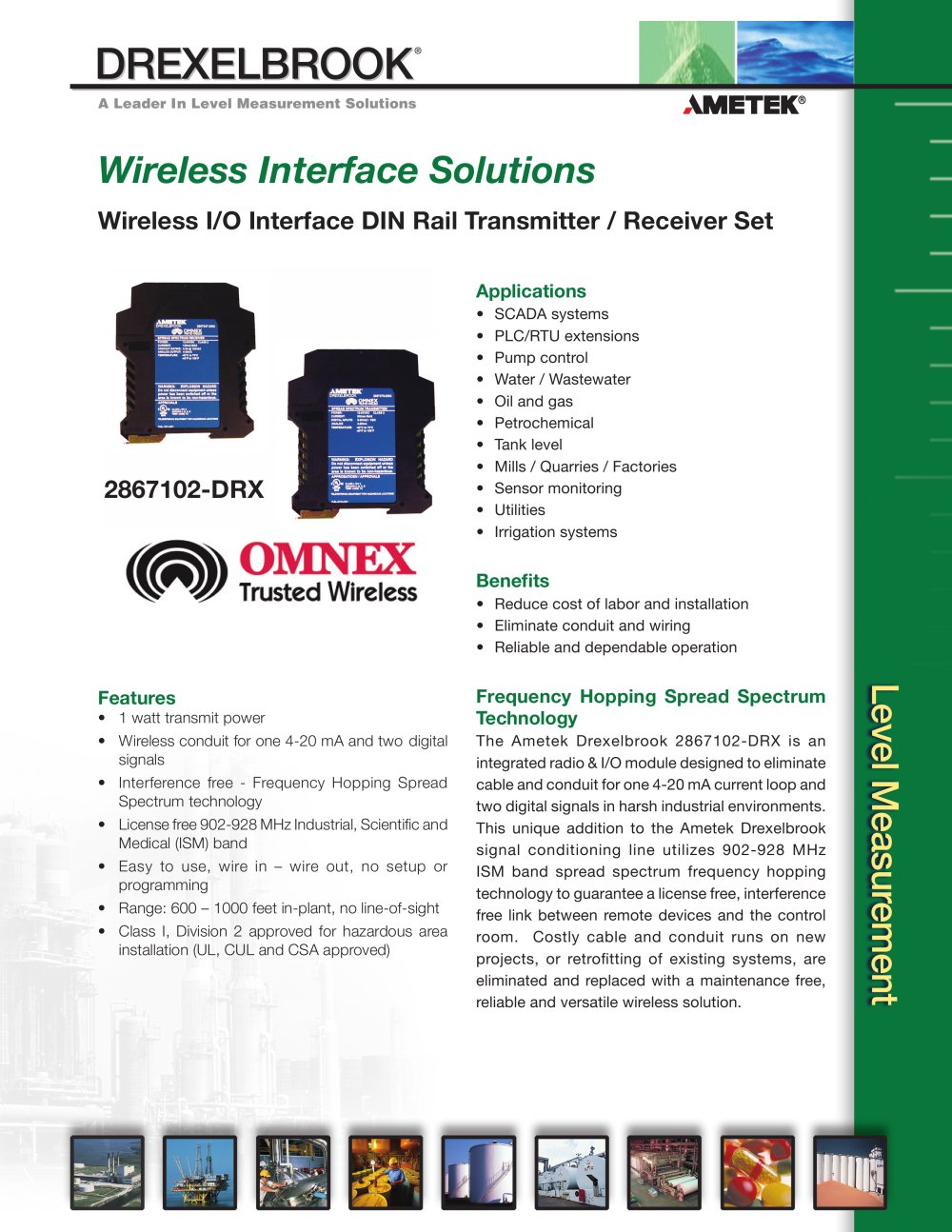

A Leader In Level Measurement Solutions Applications > Ε SCADA systems PLC/RTU extensions Օ Pump control Water / Wastewater Օ Oil and gas Petrochemical Օ Tank level Mills / Quarries / Factories Օ Sensor monitoring Utilities Օ Irrigation systems Benefits > Reduce cost of labor and installation Օ Eliminate conduit and wiring Reliable and dependable operation Features Frequency Hopping Spread Spectrum Technology > Օ 1 watt transmit power Wireless conduit for one 4-20 mA and two digital signalsՕ Interference free - Frequency Hopping Spread Spectrum technology License free 902-928 MHz Industrial, Scientific and Medical (ISM) bandՕ Easy to use, wire in wire out, no setup or programming֕ Range: 600 1000 feet in-plant, no line-of-sight ֕ Class I, Division 2 approved for hazardous area installation (UL, CUL and CSA approved) The Ametek Drexelbrook 2867102-DRX is an integrated radio & I/O module designed to eliminate cable and conduit for one 4-20 mA current loop and two digital signals in harsh industrial environments. This unique addition to the Ametek Drexelbrook signal conditioning line utilizes 902-928 MHz ISM band spread spectrum frequency hopping technology to guarantee a license free, interference free link between remote devices and the control room. Costly cable and conduit runs on new projects, or retrofitting of existing systems, are eliminated and replaced with a maintenance free, reliable and versatile wireless solution. size="-1">

Open the catalog to page 1

Transmit Power: 1 watt Range: Frequency: 600-1000 feet, in-plant, no line-of-sight 4-5 miles, line-of-sight, flat terrain, raised antennas 20+ miles, line-of-sight, flat terrain, professional propagation study, installation and directional antennas 902-928 MHz Power Source: 12 V to 30 VDC (regulated) Power Consumption: 8.4 watt peak, 1.8 watt average (350 mA @ 24 Vdc peak, 75 mA @ 24 Vdc average) Inputs: 1 x 4-20 mA analog (250 W input impedance) 2 x 5 to 30 VAC / DC digital (for 120 VAC discrete inputs use relays to convert to specified voltage levels) Outputs: 1 x 4-20 mA analog (12-bit resolution)...
