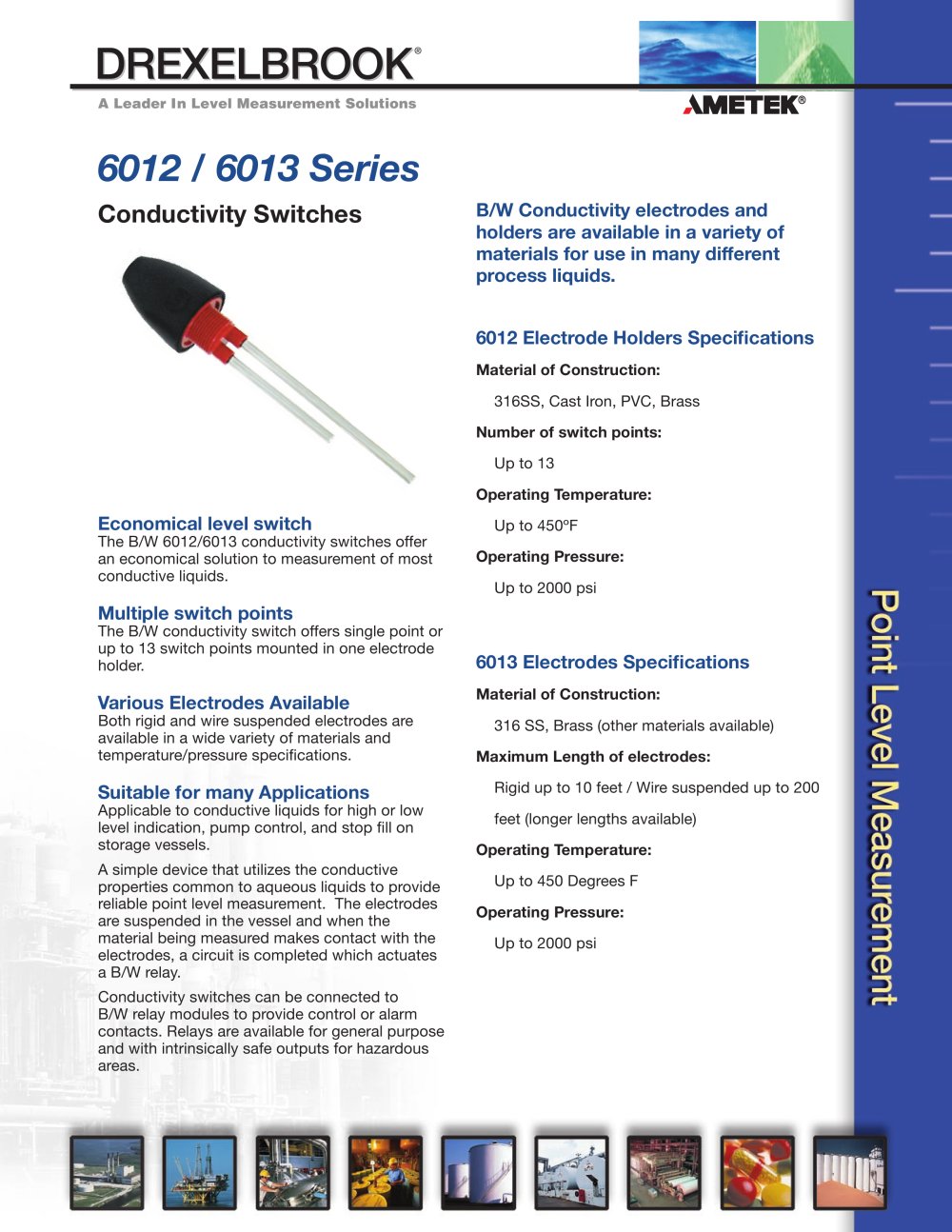

Conductivity Switches Data Sheet

Conductivity Switches Data Sheet

Product catalog summary

Overview: The B/W 6012/6013 conductivity switches provide an economical solution for measuring conductive liquids. They are suitable for applications such as high or low-level indication, pump control, and stop fill on storage vessels.

Key Features:

Multiple Switch Points: Offers single point or up to 13 switch points in one electrode holder.
Electrode Options: Available in rigid and wire suspended forms, with various materials and specifications.
Applications: Suitable for conductive liquids, providing reliable point level measurement through the completion of a circuit when the liquid contacts the electrodes.

Specifications:

6012 Electrode Holders: Made from materials like 316SS, Cast Iron, PVC, and Brass. They support up to 13 switch points, with operating temperatures up to 450ºF and pressures up to 2000 psi.
6013 Electrodes: Constructed from 316 SS and Brass, with rigid electrodes up to 10 feet and wire suspended up to 200 feet. They also operate up to 450ºF and 2000 psi.

Model Numbering and Options:

Electrode holders and plugs are available in various configurations, suitable for different pressure and temperature conditions.
Electrode types include solid rods and wire suspension, with specific models for different applications and environments.

Installation and Use:

Conductivity switches can be connected to B/W relay modules for control or alarm contacts, with options for general purpose and intrinsically safe outputs for hazardous areas.
Electrodes and holders must be ordered separately, with specific configurations available for different applications.

Contact Information: For further details, contact AMETEK Nihon Drexelbrook, AMETEK Singapore Pte. Ltd., or AMETEK Precision Instruments Europe, with contact details provided for each location.
