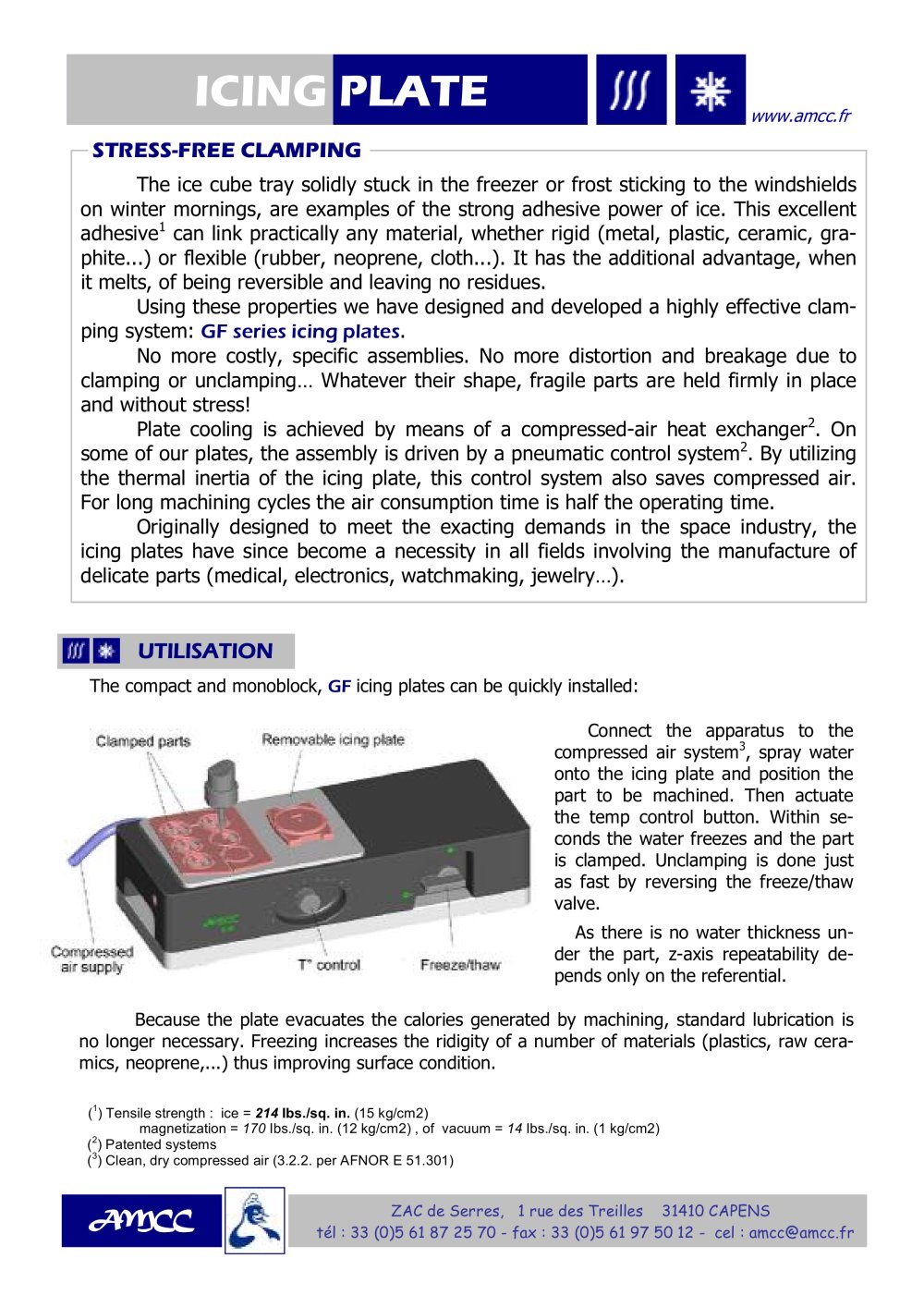

tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:8.00pt "Arial", sans-serif; } .font1 { font:9.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Arial", sans-serif; } .font3 { font:12.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:27.00pt "Arial", sans-serif; } .font6 { font:38.00pt "Arial", sans-serif; } .font7 { font:10.00pt "Tahoma", sans-serif; } .font8 { font:12.00pt "Tahoma", sans-serif; } /// * www.amcc.fr PLATE STRESS-FREE CLAMPING The ice cube tray solidly stuck in the freezer or frost sticking to the windshields on winter mornings, are examples of the strong adhesive power of ice. This excellent adhesive1 can link practically any material, whether rigid (metal, plastic, ceramic, graphite...) or flexible (rubber, neoprene, cloth...). It has the additional advantage, when it melts, of being reversible and leaving no residues. Using these properties we have designed and developed a highly effective clam- ping system: GF series icing plates. No more costly, specific assemblies. No more distortion and breakage due to clamping or unclamping... Whatever their shape, fragile parts are held firmly in place and without stress! Plate cooling is achieved by means of a compressed-air heat exchanger2.On some of our plates, the assembly is driven by a pneumatic control system2. By utilizing the thermal inertia of the icing plate, this control system also saves compressed air. For long machining cycles the air consumption time is half the operating time. Originally designed to meet the exacting demands in the space industry, the icing plates have since become a necessity in all fields involving the manufacture of delicate parts (medical, electronics, watchmaking, jewelry...). UTILISATION The compact and monoblock, GF icing plates can be quickly installed: Connect the apparatus to the compressed air system3,spray water onto the icing plate and position the part to be machined. Then actuate the temp control button. Within seͭconds the water freezes and the part is clamped. Unclamping is done just as fast by reversing the freeze/thaw valve. As there is no water thickness un-der the part, z-axis repeatability depends only on the referential. Because the plate evacuates the calories generated by machining, standard lubrication is no longer necessary. Freezing increases the ridigity of a number of materials (plastics, raw cera-mics, neoprene,... ) thus improving surface condition. (1) Tensile strength : ice = 214 Ibs./sq. in. (15 kg/cm2) magnetization = 170 Ibs./sq. in. (12 kg/cm2) , of vacuum = 14 Ibs./sq. in. (1 kg/cm2) (2) Patented systems (3) Clean, dry compressed air (3.2.2. per AFNOR E 51.301 ) ZAC de Serres, 1 rue des Treilles 31410 CAPENS tel : 33 (0)5 61 87 25 70 - fax : 33 (0)5 61 97 50 12 - cel : amcc@amcc.fr

rfrence clamping surface overall dimensions instant consumption GFR-55 Diam.: 2.16 inch 8.2 x 2.36 x 1.14 inch > 3.78 CFM (6.4 m (diam. 55 mm) (208 x 60 x 29 mm) 3 /h)
