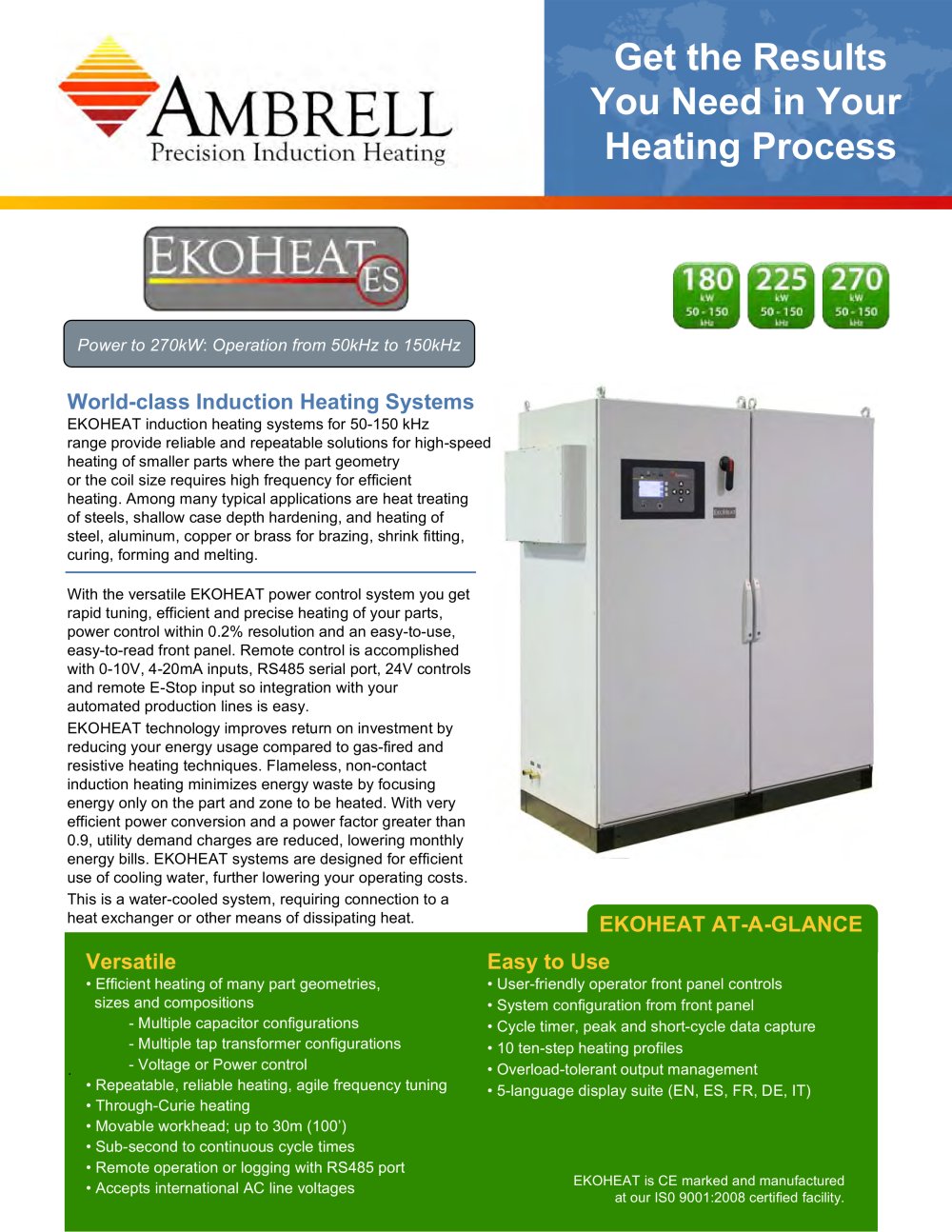

EKOHEAT power to 270kW, operation from 50kHz to 150kHz

Product catalog summary

Overview: The EKOHEAT induction heating systems are designed for efficient and precise heating of various part geometries, sizes, and compositions. They operate within a frequency range of 50-150 kHz, making them suitable for high-speed heating applications such as heat treating, brazing, and forming.

Key Features:

Versatile configurations with multiple capacitor and transformer options.
Agile frequency tuning and repeatable heating processes.
Remote operation capabilities via RS485 port.
International AC line voltage compatibility.
Movable workhead with up to 30m reach.
Energy-efficient with a power factor greater than 0.9.

Specifications:

RF Terminal Power: 180-270 kW.
AC Line Power: 209-316 kVA.
Output Frequency: 50-150 kHz.
AC Line Voltage: 360-520 Vac, 3Ø.
Ingress Protection: IP54, NEMA 12.
Dimensions: 1718 x 806 x 1906 mm.
Weight: 391-470 kg.

Water Cooling Requirements:

Flow: 38-57 l/m.
Pressure Differential: 2.8-5.6 Bar.
Max Water Temp: 35°C.

Options and Accessories:

Start-up assistance and heat exchanger options.
Auto-tap selection and redundant safety relays.
Multi-workhead controller and eVIEW serial data reporting.
Extended work head cable lengths and optical pyrometer.

Additional Information: EKOHEAT systems are CE marked and manufactured in an ISO 9001:2008 certified facility. They offer a user-friendly interface with a programmable controller for monitoring and diagnostics. The systems are supported by a global network of experts, ensuring high-efficiency solutions for various heating processes.
