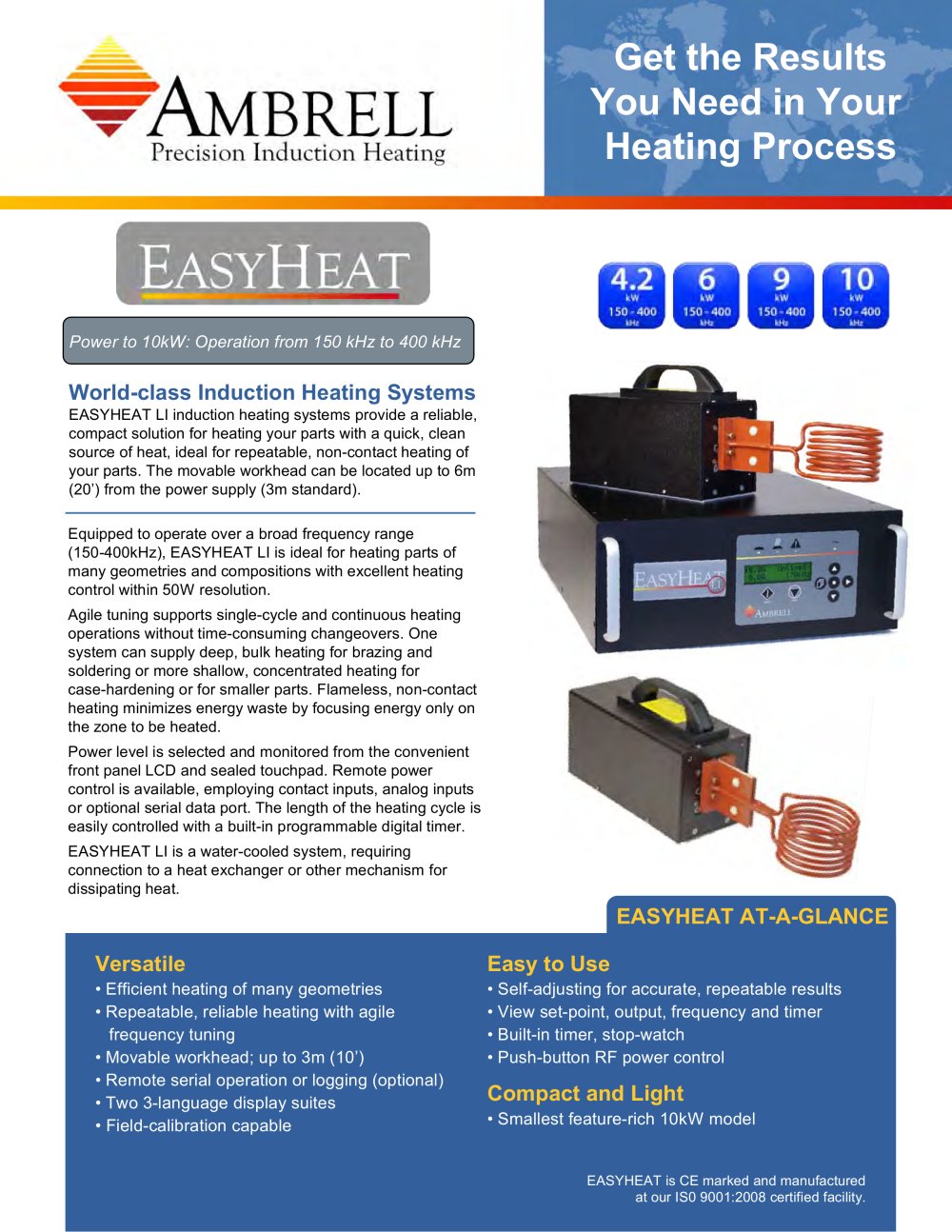

Overview: The EASYHEAT LI induction heating systems by Ambrell offer a compact and reliable solution for heating parts using a non-contact, flameless method. These systems are ideal for various heating applications due to their broad frequency range and precise control capabilities.

Specifications: The systems operate within a frequency range of 150-400 kHz and provide RF terminal power options from 4.2 kW to 10 kW. They require an AC line voltage of 187-230 or 230-264 Vac, with a maximum ambient temperature of 45°C (115°F). The systems are water-cooled and require a heat exchanger or similar mechanism for heat dissipation.

Features: EASYHEAT systems are equipped with agile frequency tuning, allowing for both single-cycle and continuous heating operations. They feature a movable workhead, remote power control options, and a programmable digital timer for precise heating cycle management. The systems are CE marked and manufactured in an ISO 9001:2008 certified facility.

Usability: The systems are designed for ease of use with a front panel LCD and touchpad for power selection and monitoring. They support remote serial operation and logging, and offer field-calibration capabilities. The systems are compact and lightweight, making them suitable for various industrial applications.

Options and Accessories: Available options include a heat exchanger or chiller, optical pyrometer for closed-loop temperature control, external controller (PLC), extended workhead cable lengths, footswitch, serial data interface, and pendant station.

Applications: EASYHEAT systems are suitable for a wide range of applications, including brazing, soldering, case-hardening, and heating of parts with various geometries and compositions.

Contact Information: Ambrell provides global support with offices in the US, Netherlands, UK, and France. Contact details for each location are provided for sales and technical assistance.
