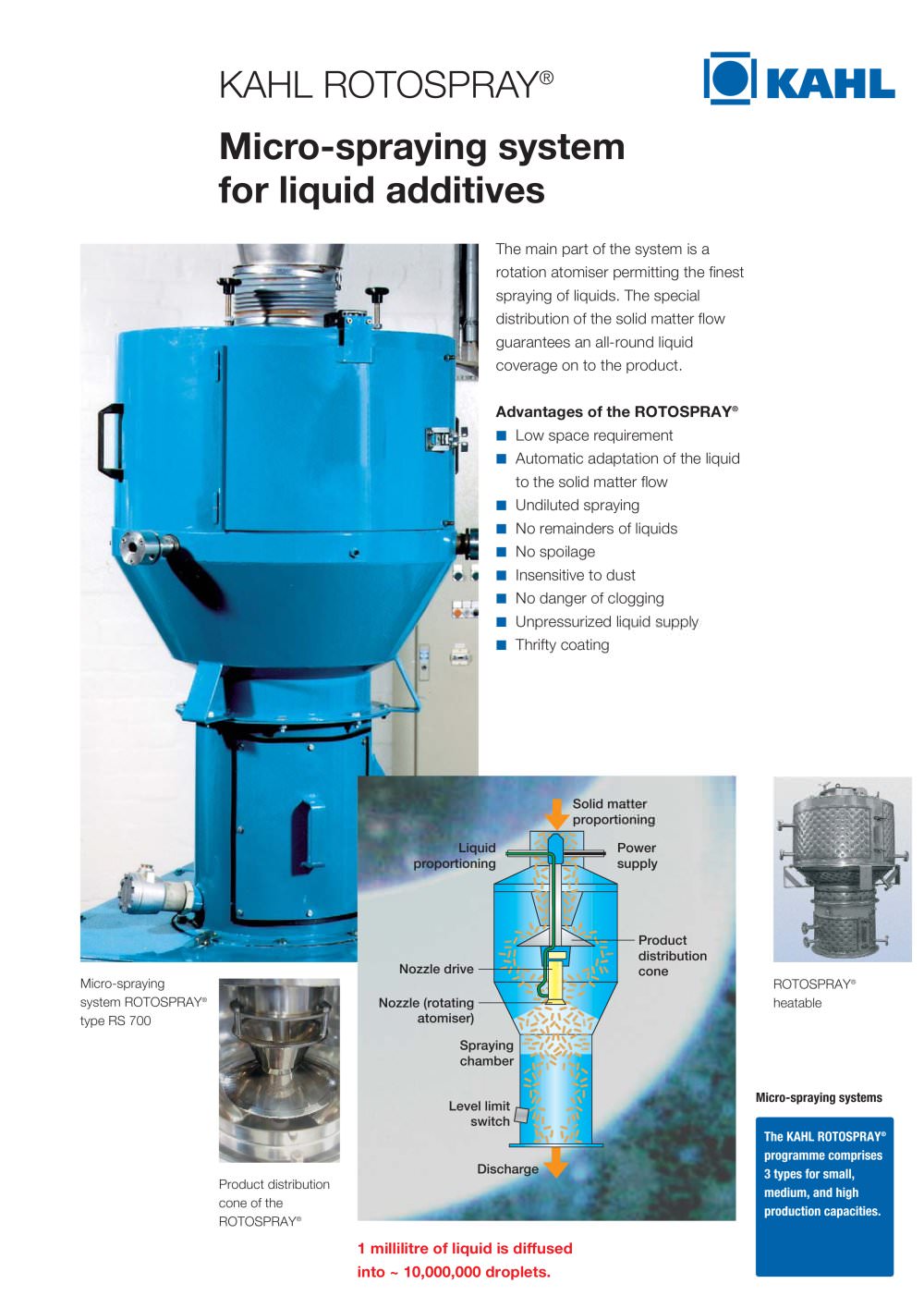

Micro-spraying system for liquid additives KAHL ROTOSPRAY® The main part of the system is a rotation atomiser permitting the finest spraying of liquids. The special distribution of the solid matter flow guarantees an all-round liquid coverage on to the product. Advantages of the ROTOSPRAY® ¡ Low space requirement ¡ Automatic adaptation of the liquid to the solid matter flow ¡ Undiluted spraying ¡ No remainders of liquids ¡ No spoilage ¡ Insensitive to dust ¡ No danger of clogging ¡ Unpressurized liquid supply ¡ Thrifty coating Micro-spraying system ROTOSPRAY® type RS 700 1 millilitre of liquid is diffused into ~ 10,000,000 droplets. Product distribution cone of the ROTOSPRAY® Solid matter proportioning Power supply Liquid proportioning Product distribution Nozzle drive cone Spraying chamber Level limit switch Nozzle (rotating atomiser) Discharge The KAHL ROTOSPRAY® programme comprises 3 types for small, medium, and high production capacities. Micro-spraying systems ROTOSPRAY® heatable

Digi-AK-01-E 04/05 AMANDUS KAHL GmbH & Co. KG Dieselstrasse 5-9 D-21465 Reinbek Phone: +49 (0)40 7 27 71 - 0 Fax: +49 (0)40 7 27 71 - 100 [email protected] www.akahl.de 4 5 2 1 3 5 6 2 1 4 3 KAHL ROTOSPRAY® 1 millilitre of liquid is diffused into ~ 10,000,000 droplets The system is appropriate for the following liquids: ¡ Enzymes, particularly phytase ¡ Disinfectants ¡ Vitamins ¡ Aromatic substances ¡ Flavourings ¡ Vegetable oils ¡ Organic acids ¡ Dust binders Appropriate product shapes: ¡ Mealy products ¡ Crumbles ¡ Expanded, extruded products ¡ Pellets with any diameter Installation...
