Introduction

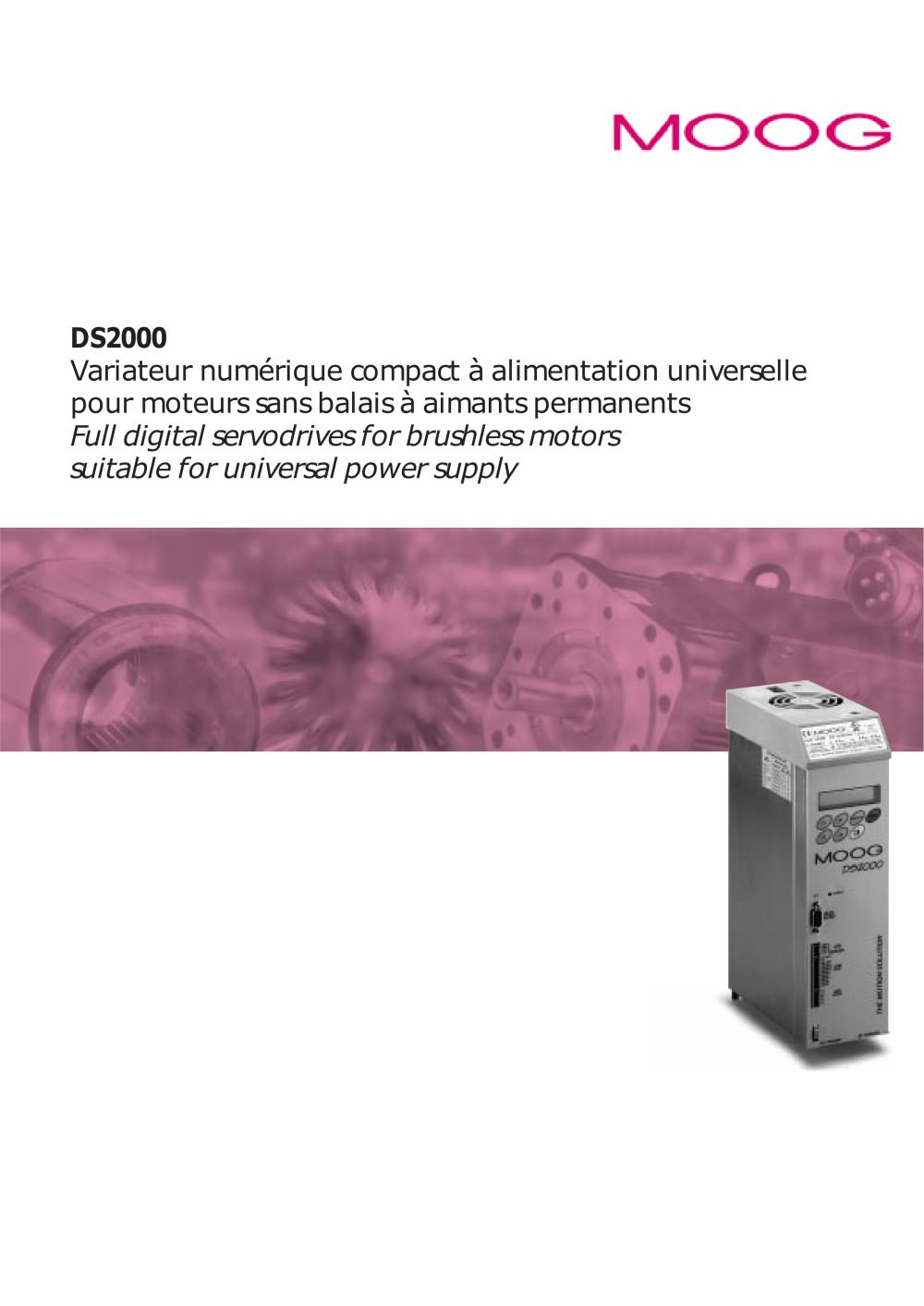

The DS2000 is a digital brushless servodrive introduced in 1999, designed for brushless motors and universal power supply. It offers enhanced control, reliability, and flexibility, making it ideal for OEMs needing precision and cost-effectiveness.

Specifications
The DS2000 features high signal sampling rates for precise control, a digital front card with a keypad, and user-friendly parameter names. It uses advanced SMD components and automated assembly to enhance reliability.

Power Supply
It integrates power rectification, soft start circuitry, and a high-frequency switch mode power supply, supporting a wide voltage range (65 to 506VAC, three-phase) with automatic protection threshold adjustments.

Motor Control
The drive standardizes a PWM output stage at 10KHz using IGBT technology, supports resolver and encoder feedback, and offers configurable current loops and digital filters for speed control.

Advanced Features
Includes Indirect Field Oriented Control (IFOC) for induction motors, programming via an onboard keypad or DS2000 Loader software, and comprehensive parameter management.

Additional Specifications
Features downloading/uploading capabilities for drive parameters, real-time oscilloscope function, virtual front panel, and continuous serial communication status monitoring.

Flash Memory
Equipped with onboard flash memory for easy downloading of applications and control programs via the communication port.

Analog Configurable Output
Provides a configurable analog output for monitoring key characteristics like speed error and current reference.

CAN Open Interface (Optional)
Optional CANbus interface for speed or current commands, supporting parameter setting for multiple drives with a maximum speed of 1 Mbit/sec.

Electrical Characteristics
Supports three-phase input voltage from 65VAC to 506VAC, 50/60 Hz, and single-phase supply from 103VAC to 243VAC, with a standard 24VAC auxiliary power supply.

Thermal Data
Operates within 0 to +40°C, with storage and transportation ranges of -25 to +55°C and -25 to +70°C, respectively, and includes thermal protection at +71°C on the heatsink.

Protections
Includes protections against overtemperature, out-of-tolerance power supply, missing encoder or resolver signals, output short circuits, and missing ballast resistors.

EMC Compliance
Complies with EMC product standard EN 61800-3 for industrial environments, subject to filter installation and recommended procedures.

Options
External options include an RS232/422/485 converter with DS2000 Loader software. Internal options include a CANbus interface and sinusoidal encoder interface.

Interfaces
Features analog and digital interfaces, including RS485 or optional CANbus, encoder inputs and outputs, and various control signals.

Diagnostics
Integrated display provides data on drive status and potential faults.

Models
Various models with specifications for nominal, maximum, and peak output currents, along with sizes and weights.

Procedures
Guidance on configuration and setup, emphasizing matching motor data for accurate drive coding.

Standards and Recommendations
Standard drive version identified by software language, electrical options, and resolver/encoder/software options. Moog Italiana S.r.l. reserves the right to alter dimensions or data without notice.

Dimensions
Detailed dimensions for different sizes (A, B, C, D) of the drive system, with measurements in millimeters.

Model Code
Details on model code, including current ratings and special versions, with standard software and resolver/encoder options.

Motor Data
Essential for proper drive coding, with configurations for motors with resolvers or encoders.

Contact Information
Contact details for Moog Italiana S.r.l. and their agent and distributor in France, ALXION, for further inquiries.
