Pharmaceutical products labellers ALpharma

Product catalog summary

Overview: The document describes the ALpharma line of self-labelling systems developed by ALTECH specifically for pharmaceutical packaging. These systems are designed to meet the stringent requirements of the pharmaceutical industry, incorporating advanced features and adhering to Good Engineering Practices (GEP).

Key Specifications:

Easy Cleaning: Machines feature smooth surfaces, minimal interstices, and elevated or protected electrical parts to prevent liquid spills.
Ergonomics: Mechanical parts are designed for easy format changes and repeatable settings.
Materials: Use of noble materials, primarily stainless steel (AISI 304 or 316).
Label Printing Integration: Systems include devices for printing essential data (batches, sell-by dates) using hot foil or thermal transfer methods.
Control Systems: Integrated sensors ensure correct application, overprinting, and labelling, managed by a Siemens S7-300 PLC with a touch screen interface.
Certification: Machines can be certified according to GAMP 4 validation processes, with necessary documentation and testing (FAT, SAT).

ALpharma Models:

ALpharma A: Designed for labelling vials and small bottles, operating from tray to tray with a star-wheel mechanism, handling up to 150 products per minute.
ALpharma B: Suitable for labelling shaped cases with barcode labels and tamper-evident labels, handling up to 200 products per minute.
ALpharma C: For in-line wrap-around labelling of cylindrical bottles, handling up to 250 products per minute.

Available Options:

Hot or thermal transfer overprinting.
Devices for checking near end of reel and rewinder full.
Barcode checking devices.
Devices for checking performed and correct overprinting using mark readers or video cameras.
Devices for checking performed labelling using luminescence sensors or video cameras.
Ejection systems for non-compliant products with checks for performed ejection and full reject boxes.
Management of formats and logs for alarms and rejects.

Catalog excerpts

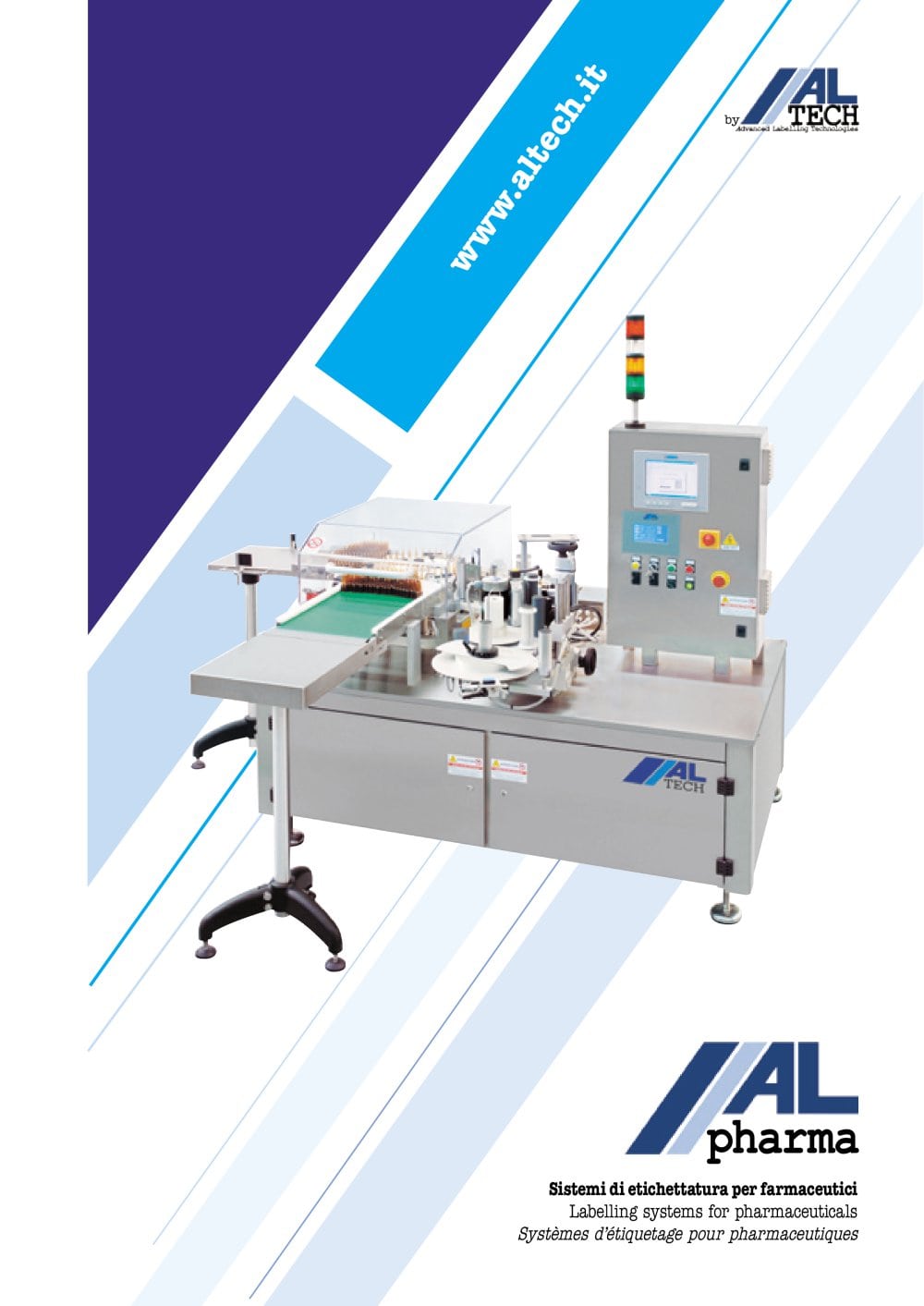

Pharmaceutical products labellers ALpharma-1

Sistemi di etichettatura per farmaceutici Labelling systems for pharmaceuticals Systèmes d’étiquetage pour pharmaceutique

Open the catalog to page 1

Pharmaceutical products labellers ALpharma-2

interfaccia Touch per la gestione tutte le funzioi macchina e de ta di certil macchina processo v GAMP 4 (1 con la forr 4. tiva e l’espletan dei collaudi (FAT, secondo tali procedure. autoadesivo della linea ALpharma sono espressamente svi-luppati da ALTECH per applicazioni su confezioni di prodotti farmaceutici. Partendo dalla collaudata esperien-za nella progettazione di sistemi di etichettatura innovativi, che largo successo hanno riscontrato in tutti i settori di mercato, ALTECH ha messo a punto la linea ALpharma, partico-larmente avanzata nelle sue caratte-ristiche, per adattarsi agli stringenti vincoli...

Open the catalog to page 2

Pharmaceutical products labellers ALpharma-3

• Noble materials, especially stainless steel (AISI 304 or 316). • The integration of label printing devices with essential, sensible data (batches, sell-by dates), by means of hot foil or thermal transfer printing units. • The integration of sensors for correct application, overprinting performed and labelling performed checking. • The integration of an in-built control system equipped with a Siemens S7-300 PLC and a touch screen interface which manages all functions of the machine and its checking devices. • The possibility of certifying the machine as per GAMP 4 (IQ/OQ/ PQ) validation process,...

Open the catalog to page 3

Pharmaceutical products labellers ALpharma-4

Sistemi di etichettatura e di identificazione ALTECH. Srl Viale De Gasperi, 72 - 20010 BAREGGIO (MI) E-mail: [email protected] - www.altech.it Tel. +39.02.90.363.464 - Fax +39.02.90.363.481

Open the catalog to page 4
