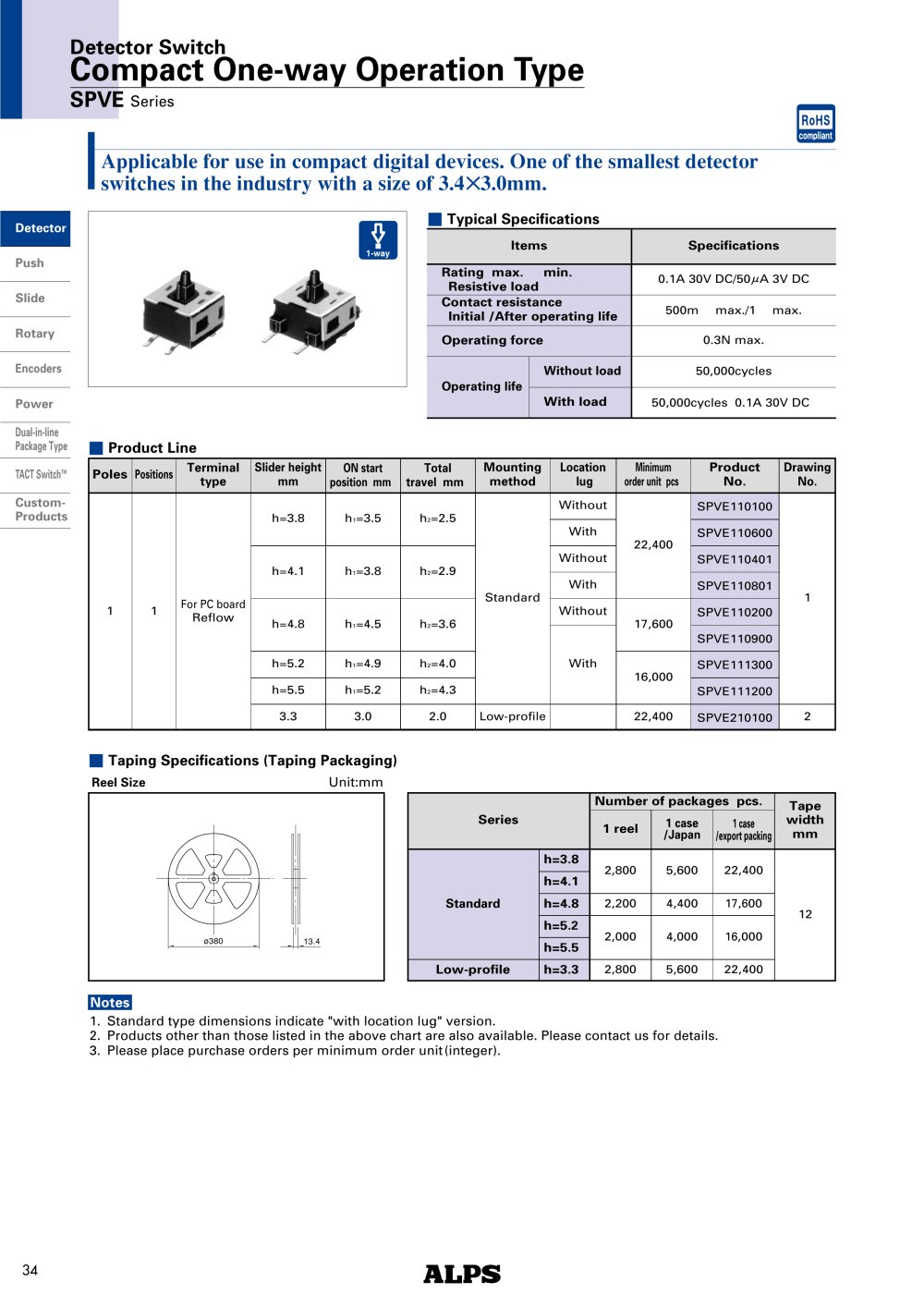

Overview: The document provides technical specifications and guidelines for the SPVE Series, a compact one-way operation type detector switch. It is designed for use in compact digital devices and is noted for being one of the smallest in the industry.
Specifications: The SPVE Series features a variety of slider heights ranging from 3.0mm to 5.5mm, with corresponding ON start positions and total travel distances. The switches are available in standard and low-profile types, with specific mounting methods and terminal types. The operating life is rated at 50,000 cycles under specified electrical loads.
Electrical Performance: The switches have a maximum rating of 0.1A at 30V DC and a minimum rating of 50BA at 3V DC. Initial contact resistance is specified at 500mΩ max, with insulation resistance at 100MΩ min at 100V DC. Voltage proof is rated at 100V AC for 1 minute.
Mechanical Performance: The operating force varies between 0.3N to 0.5N max, depending on the model. Terminal and actuator strengths are specified, with durability tests confirming performance over 50,000 cycles.
Environmental Performance: The switches are tested for cold, dry heat, and damp heat conditions, with operating temperature ranges from -40°C to +85°C.
Soldering Conditions: The document outlines reflow soldering conditions, emphasizing the importance of temperature control and prior verification of soldering conditions due to variations in PC board materials and sizes.
Additional Notes: The document includes a list of available product numbers and emphasizes the need to place purchase orders per minimum order unit. It also provides a circuit diagram and terminal layout for reference.
See more
Catalog excerpts
A Total travel position > 0.7 C0.2 Location lug ON, OFF starting position >
Open the catalog to page 2
Slide Rotary Encoders > Temperature (˚C ) Power Dual-in-linePackage Type TACT Switch > TM Custom- Products Series ʢ Reflow type ʣ A ʢȊ 3s max. B Êʣ C ʢ s ʣ D ʢȊ E Êʣ F ʢ s ʣ SPPB > 230 40 250 SPPW8 > 200 20 SPVE SPVG S PVL S PVM > 180 150 120 SPVN > 260 40 230 S PVP S PVR S PVS S SCM S PPY5 > 240 20 150 Roomtemperature 180
