Piezoresistive Type MEMS Pressure Sensor
Product catalog summary

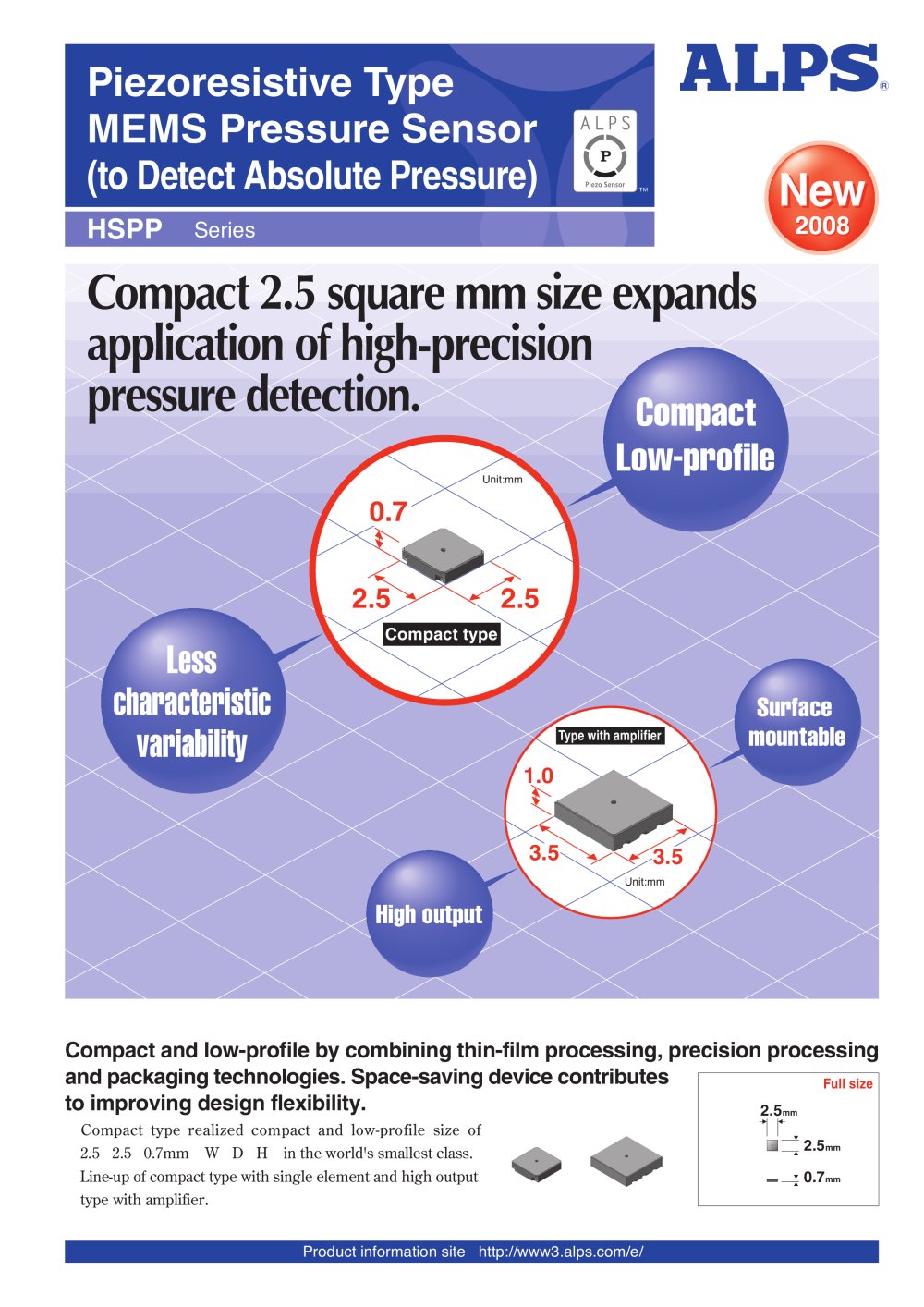

Overview: The document provides technical specifications and information about the HSPP□ Series of Piezoresistive Type MEMS Pressure Sensors designed for detecting absolute pressure. These sensors are compact, low-profile, and surface mountable, making them suitable for various mobile devices.
Specifications:
- Compact Type: Dimensions are 2.5×2.5×0.7mm (W×D×H). It operates with a constant current drive of 0.55mA, with an output voltage of 44mV at 110kPa and 79mV at 101.3kPa. The bridge resistance is between 5 to 7kΩ.
- Type with Amplifier: Dimensions are 3.5×3.5×1.0mm (W×D×H). It operates with a constant voltage drive of 2.5±0.125V, with an output voltage of 870mV at 110kPa and 1600mV at 101.3kPa. The bridge resistance is between 7 to 13kΩ.
- Measurable Pressure Range: 50 to 110kPa.
- Operating Temperature Range: -20 to +85°C.
Applications: These sensors are ideal for high-precision pressure detection in mobile phones, portable navigation systems, pedometers, and other mobile devices.
Design and Technology: The sensors are compact and low-profile due to the combination of thin-film processing, precision processing, and packaging technologies. This design contributes to space-saving and improved design flexibility.
Usage Considerations:
- The specifications provided are an overview, and official specifications should be obtained before use.
- Products are designed for ordinary electronic equipment and may require additional safety measures for sensitive applications like medical or aerospace.
- Product properties are subject to change without notice, and the catalog is valid until the end of December 2008.
Contact Information: For inquiries, contact the Products Information Center at +81 (3) 5499-8154 or visit the product information site at http://www3.alps.com/e/.
