Compact Thermal Printer
Product catalog summary
Product Overview:

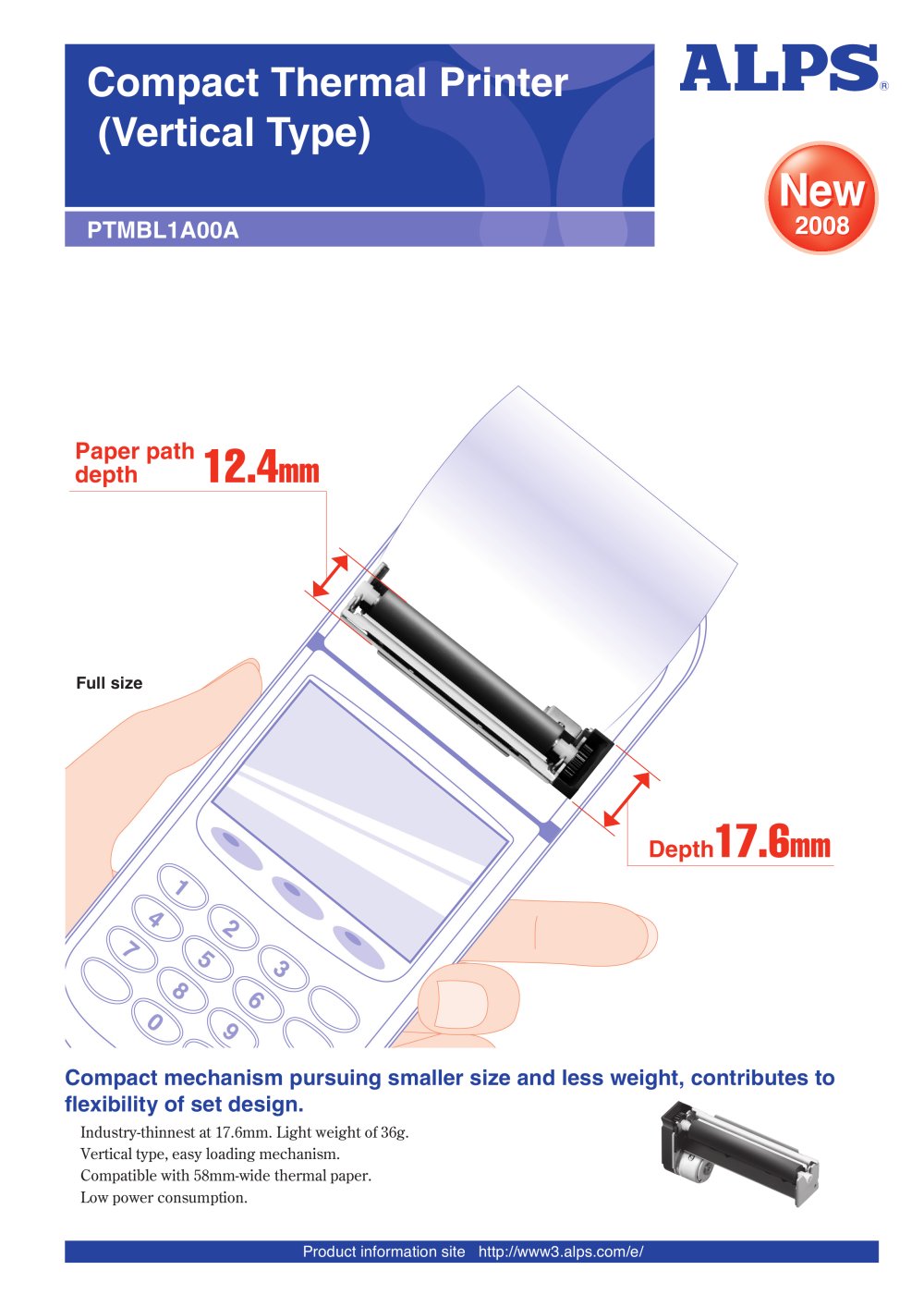

The document describes the Compact Thermal Printer (Vertical Type) model PTMBL1A00A, highlighting its industry-thinnest design at 17.6mm and lightweight of 36g. It features a vertical type easy loading mechanism and is compatible with 58mm-wide thermal paper. The printer is designed for low power consumption, contributing to flexible set design for mobile POS terminals and other handheld devices.
The document describes the Compact Thermal Printer (Vertical Type) model PTMBL1A00A, highlighting its industry-thinnest design at 17.6mm and lightweight of 36g. It features a vertical type easy loading mechanism and is compatible with 58mm-wide thermal paper. The printer is designed for low power consumption, contributing to flexible set design for mobile POS terminals and other handheld devices.
Specifications:
- Dimensions: 67.6×17.6×35.3mm
- Weight: Approx. 36g
- Operating Power: 4.2V to 8.5V for head and motor, 2.7V to 5.5V for controller
- Operating Temperature Range: -5℃ to +50℃
- Abrasion Resistance: 50km
- Pulse Activation: 100 million pulses
- Printing Method: Line thermal
- Number of Dots per Line: 384 dots
- Density of Dots: 8 dots/mm
- Printing Speed: Up to 75mm/s
- Paper Width: 58mm (+0, -1)
- Printing Width: 48mm
Applications:
The printer is suitable for various handheld terminals, including mobile POS terminals, mobile information terminals, and cash registers.
The printer is suitable for various handheld terminals, including mobile POS terminals, mobile information terminals, and cash registers.
Cautions for Use:
- The specifications provided are an overview; official specifications should be obtained before use.
- Products are designed for ordinary electronic equipment and may require additional safety measures for sensitive applications like medical or aerospace.
- Product properties are subject to change without notice, and the product may be discontinued without prior notice.
- This catalog is valid until the end of December 2008.
Contact Information:
For inquiries, contact the Products Information Center at ＋81 (3) 5499-8154 or visit the product information site at http://www3.alps.com/e/.
For inquiries, contact the Products Information Center at ＋81 (3) 5499-8154 or visit the product information site at http://www3.alps.com/e/.
