H2S-BH Hydrogen Sulfide Sensors

Product catalog summary

Performance Specifications:

Sensitivity: 1,400 to 2,000 nA/ppm in 20ppm H₂S.
Response Time: t90 < 30 seconds from zero to 20ppm H₂S.
Zero Current: ± 0.1 ppm equivalent in zero air.
Resolution: RMS noise < 0.02 ppm equivalent.
Range: Performance warranty limit at 50 ppm H₂S.
Linearity: Error < ± 0.3 ppm at full scale, linear at zero and 20ppm H₂S.
Overgas Range: Maximum 200 ppm for stable response to gas pulse.

Lifetime Specifications:

Zero Drift: < 0.02 ppm equivalent change/year in lab air.
Sensitivity Drift: < 2% change/year in lab air, tested monthly.
Operating Life: > 24 months until 80% of original signal (24-month warranty).

Environmental Specifications:

Sensitivity at -20°C: 81% to 96% of output at 20°C.
Sensitivity at 50°C: 102% to 110% of output at 20°C.
Zero at -20°C: ± 0.1 ppm equivalent change from 20°C.
Zero at 50°C: ± 0.15 ppm equivalent change from 20°C.

Cross Sensitivity:

SO₂ Sensitivity: < 10% at 20ppm SO₂.
NO Sensitivity: < 3% at 50ppm NO.
NO₂ Sensitivity: < -30% at 10ppm NO₂.
Cl₂ Sensitivity: < -25% at 10ppm Cl₂.
H₂ Sensitivity: < 0.25% at 400ppm H₂.
C₂H₄ Sensitivity: < 0.1% at 400ppm C₂H₄.
CO Sensitivity: < 1% at 400ppm CO.
NH₃ Sensitivity: < 0.1% at 20ppm NH₃.

Key Specifications:

Temperature Range: -30°C to 50°C.
Pressure Range: 80 to 120 kPa.
Humidity Range: 15% to 90% RH continuous.
Storage Period: 6 months at 3 to 20°C (stored in sealed pot).
Weight: < 13g.

Additional Notes:

All sensors are tested under ambient environmental conditions with a 10-ohm load resistor unless otherwise stated. Customers should test under their own conditions to ensure suitability for their requirements. Alphasense Ltd provides this information without legal responsibility.

Figures:

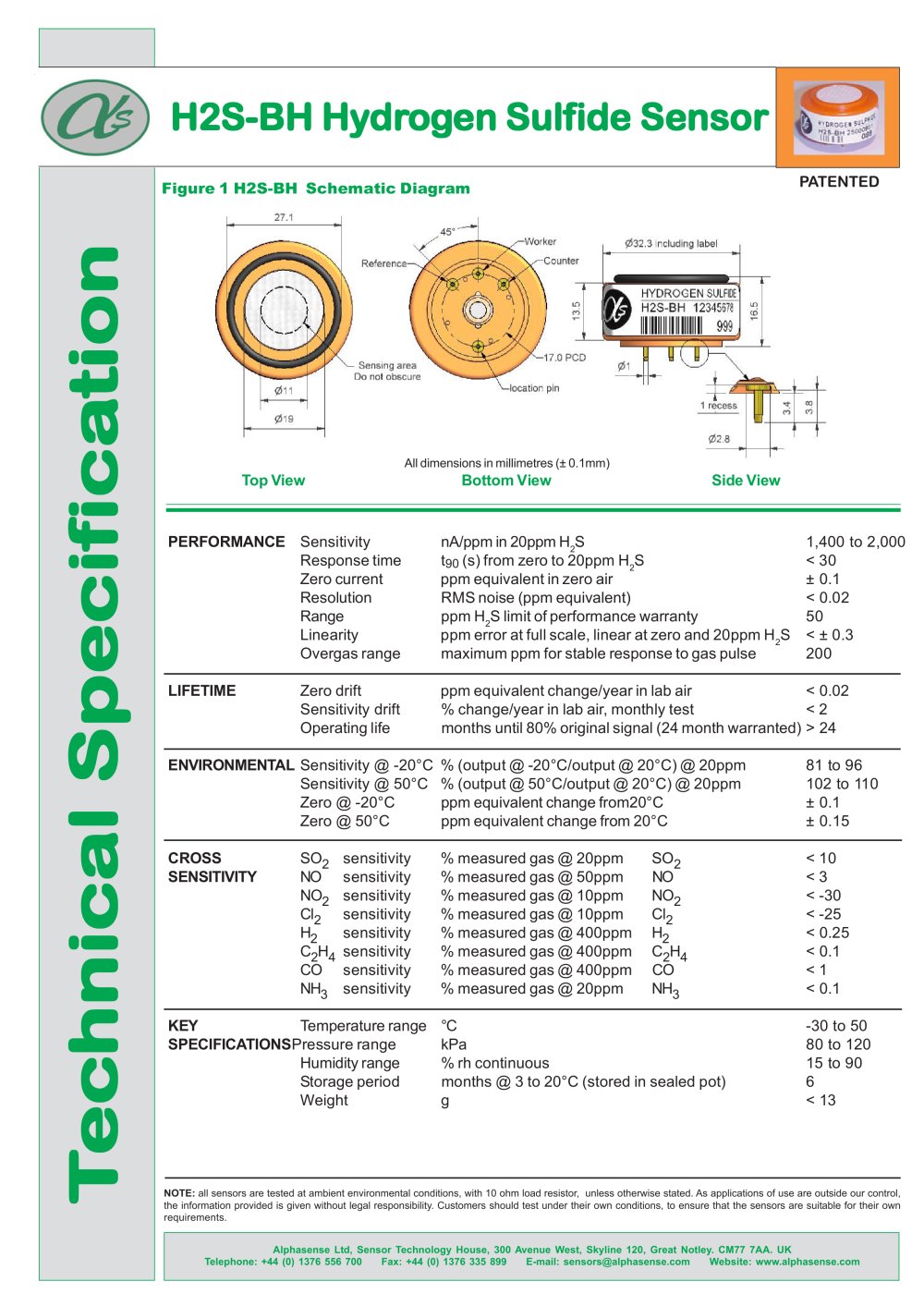

Figure 1: H2S-BH Schematic Diagram.
Figure 2: Sensitivity Temperature Dependence.
Figure 3: Zero Temperature Dependence.
Figure 4: Zero Long Term Stability over 2 years.
