H2S-AH Hydrogen Sulfide Sensors

Product catalog summary

Performance Specifications

Sensitivity: 950 to 1400 nA/ppm in 20ppm H₂S.
Response Time: t90 < 25 seconds from zero to 20ppm H₂S.
Zero Current: < ± 0.15 ppm equivalent in zero air.
Resolution: RMS noise < 0.05 ppm equivalent.
Range: Performance warranty limit at 50 ppm H₂S.
Linearity: 0 to -2.5 ppm error at full scale, linear at zero and 20ppm H₂S.
Overgas Range: Maximum 250 ppm for stable response to gas pulse.

Lifetime

Zero Drift: < 0.1 ppm equivalent change/year in lab air.
Sensitivity Drift: < 4% change/year in lab air, monthly test.
Operating Life: > 24 months until 80% original signal (24-month warranty).

Environmental Conditions

Sensitivity at -20°C: 80 to 90% (output @ -20°C/output @ 20°C) @ 20ppm.
Sensitivity at 50°C: 100 to 111% (output @ 50°C/output @ 20°C) @ 20ppm.
Zero at -20°C: < ± 0.3 ppm equivalent change from 20°C.
Zero at 50°C: < ± 0.15 ppm equivalent change from 20°C.

Cross Sensitivity

SO₂ Sensitivity: < 10% measured gas @ 20ppm SO₂.
NO Sensitivity: < 2% measured gas @ 50ppm NO.
NO₂ Sensitivity: < -30% measured gas @ 10ppm NO₂.
Cl₂ Sensitivity: < -25% measured gas @ 10ppm Cl₂.
H₂ Sensitivity: < 0.15% measured gas @ 400ppm H₂.
C₂H₄ Sensitivity: < 0.15% measured gas @ 400ppm C₂H₄.
CO Sensitivity: < 1.5% measured gas @ 400ppm CO.
NH₃ Sensitivity: < 0.1% measured gas @ 20ppm NH₃.

Key Specifications

Temperature Range: -30 to 50°C.
Pressure Range: 80 to 120 kPa.
Humidity Range: 15 to 90% rh continuous.
Storage Period: 6 months @ 3 to 20°C (stored in sealed pot).
Weight: < 6 g.

Figures and Diagrams

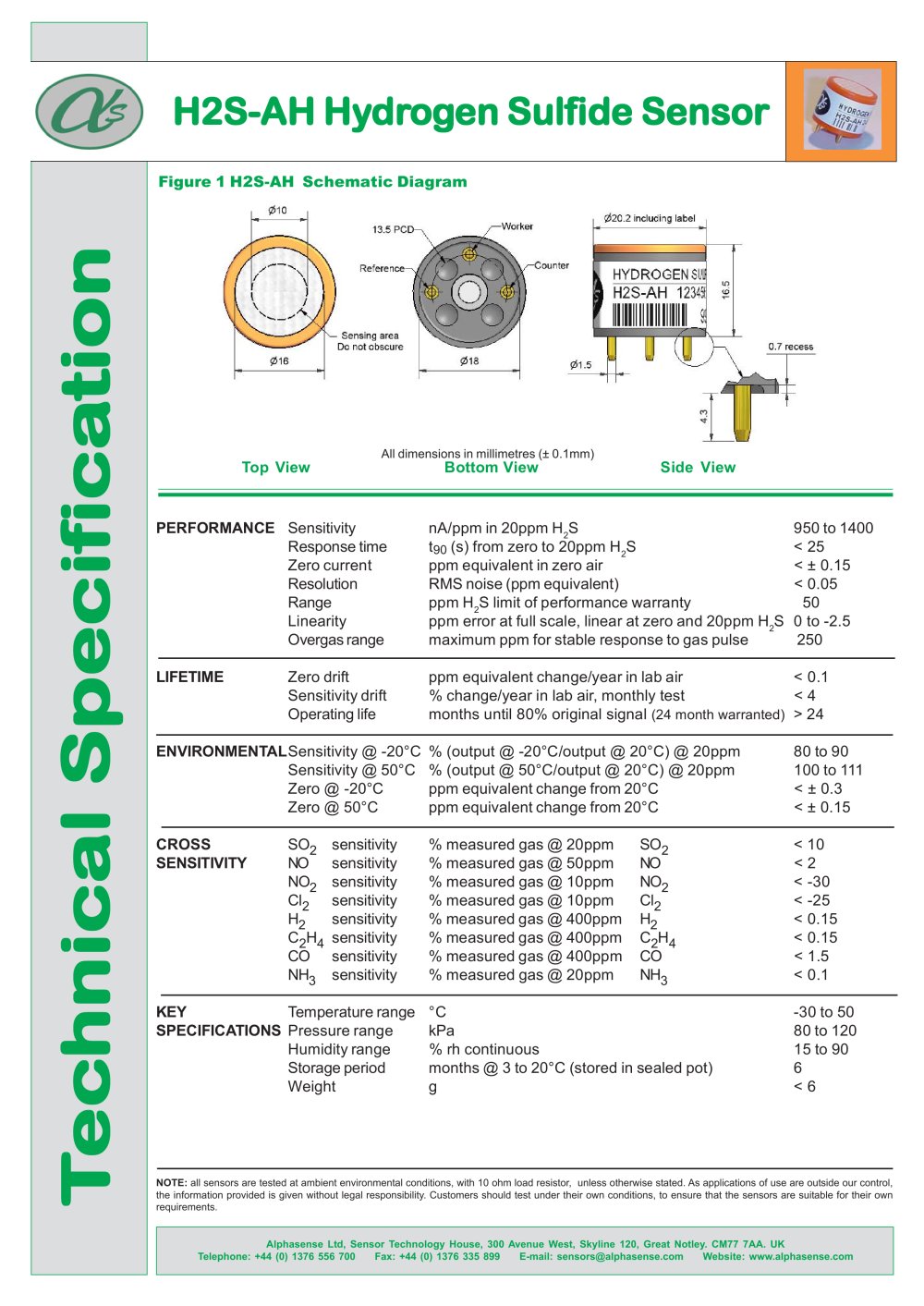

Figure 1: H2S-AH Schematic Diagram showing top, bottom, and side views with dimensions in millimeters.
Figure 2: Sensitivity Temperature Dependence showing variation in sensitivity due to temperature changes.
Figure 3: Zero Temperature Dependence showing variation in zero output due to temperature changes, expressed as ppm gas equivalent.
Figure 4: Sensitivity Long Term Stability demonstrating excellent long-term stability due to patented design and superior electrochemistry.

Note: All sensors are tested at ambient environmental conditions with a 10-ohm load resistor unless otherwise stated. Customers should test under their own conditions to ensure suitability for their requirements. Alphasense Ltd reserves the right to change design features and specifications without prior notification.
