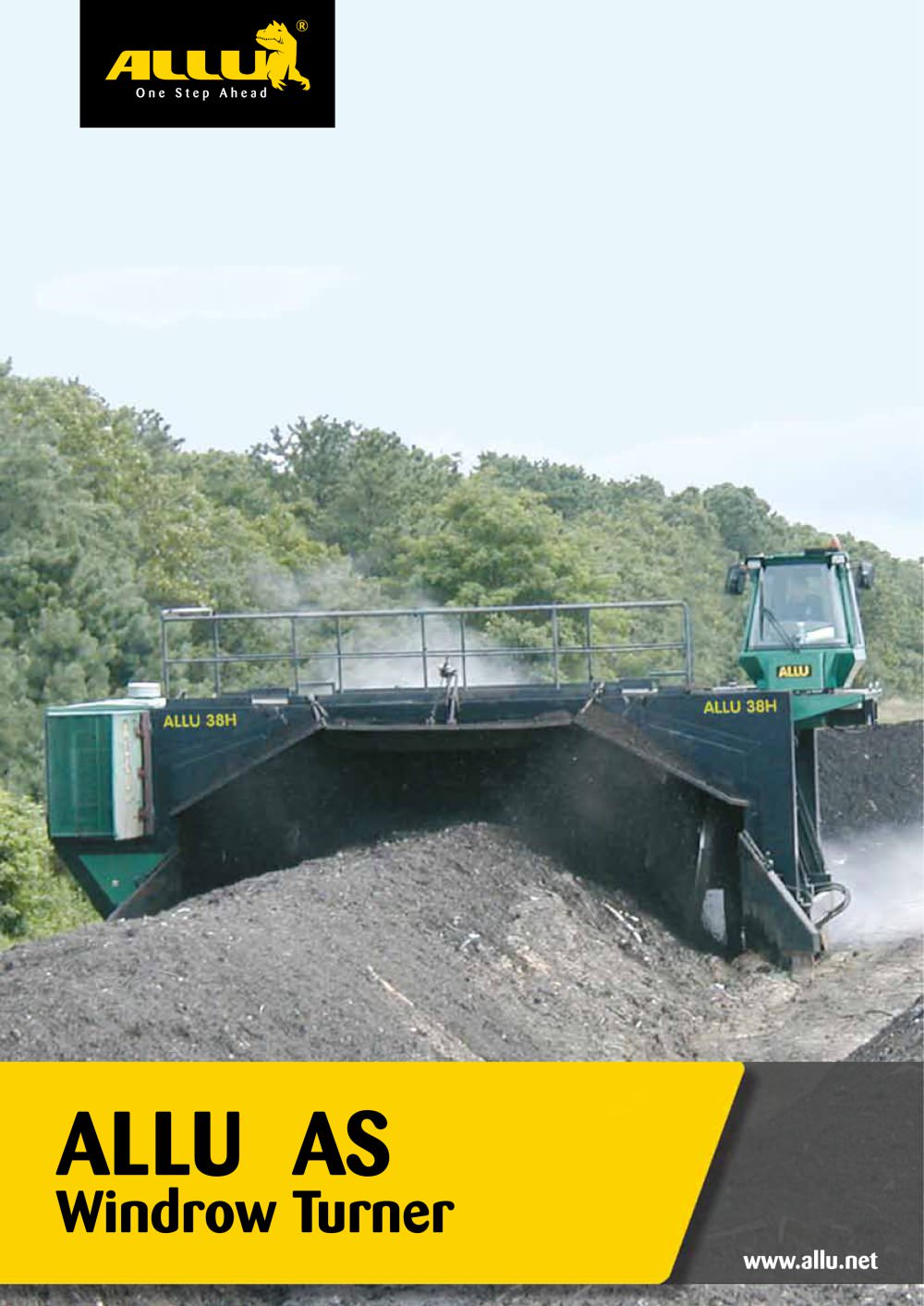

Windrow Turner

ALLU AS 38H designed for difficult materials and conditions ALLU AS 38H Windrow Turner is designed for the treatment of different materials, from compost to contaminated soil stabilization and mixing. The ALLU AS 38H can be operated in the most difficult conditions and is presently at work in a number of countries worldwide from the Artic Circle to the Arabian Desert. ALLU AS 38H, heavy duty design ALLU AS 38H is a track driven machine powered by a diesel engine. The AS 38H can also mix and aerate heavy density materials and soils. Patented mixing drum The efficiency of the windrow turners is...

For more information goto Auto power drive If the speed of the drum decreases under the adjusted limit, the driving speed is automatically reduced in order to prevent the overload. When the overload is eliminated, the driving speed returns automatically to the original power level, without readjusting with joysticks. Technical data • • • • • • • 330 kW / 450 hp Mercedes-Benz inter-cooled turbo diesel engine Length of mixing drum 20.8 ft (6,33 meters) Diameter of mixing drum 7.2 ft (2,25 meters) Auto power drive Fully equipped cabin Driving is controlled with two joysticks Turning capacity up...

ALLU Technical Details Engine The Power of the engine has been utilized effectively: Mechanical transmission of the power ensures the minimum loss of energy. Electrical System 24 VDC, 2 pcs 12 VDC heavy duty batteries ALLU AS 38H is easy to maintain and service thanks to easy access to all components and service points. The large radiator ensures the effective cooling even in warm and dusty conditions. Mixing Drum The safety pin in the power transmission protects the construction, if the drum hits the solid ground. Unique patented construction of the drum with replaceable cutting edge makes it...

For more information goto Safety Cabin The user operates the machine from a fully equipped safety cabin. The cabin can be lifted vertically about 5.6 ft (1,7 meters) allowing for a perfect view to the windrow material. The fully equipped safety cabine is designed and manufactured to meet the requirements of the demanding users. The cabine can be easily lowered down for transportation. • • • • • • • Heat isolation Air conditioning / heating Dust separation Front / back lights Complete operation control Windscreen wiper Adjustable seat Radio/cassette recorder Remote control for tracks for loading...

ALLU Windrow Turner Jobs Composting organic and green waste in USA There are numerous sites that use the ALLU AS 38H in handling compost from green and organic waste. The ALLU AS 38H can turn large windrows and is easily transportable from site to site, making high quality compost for cost-effective production. Handling contaminated soil in USA In this site the TNT contaminated soil is handled by the ALLU AS 38H. The contaminated soil is from an army training area. The ALLU AS 38H mixes the material with e.g. industrial organic waste and other organic material, to compost the soil. ALLU AS Windrow...

For more information goto Handling contaminated soil in UK In UK the contaminated sludge was dredged from the sea bottom. The target was to clean the sludge by processing it with the ALLU AS 38 and then build a blockhouse on the site. Handling contaminated soil in Finland Biomaa Oy is a Finnish company, specializing in cleaning of contaminated lands and composting. In the site in small Finnish town Hyvinkää, they compost waste water sludge from the close waste water purification station. The most commonly used mixing material is wood chips. The end product is used mainly in green construction....

ALLU products for soil improvement ALLU Screener Crusher Screening, crushing, mixing, aerating, and loading in one step operation ALLU Stabilisation System Mixing soil and binding agent in mass stabilisation ALLU Compacting Plate High power compacting plates for demanding job sites ALLU Windrow Turner Mixing and aerating different materials from compost to contaminated soil ALLU Finland Oy Jokimäentie 1, 16320 Pennala, FINLAND Tel: +358 3 882 140 Fax: +358 3 882 1440 Email: [email protected] ALLU Deutschland GmbH Klöcknerstraße 3, 32257 Bünde, GERMANY Tel: +49 5223 180 150 Fax: +49 5223 180...
