Multi-Service Wireless Switch
2Pages

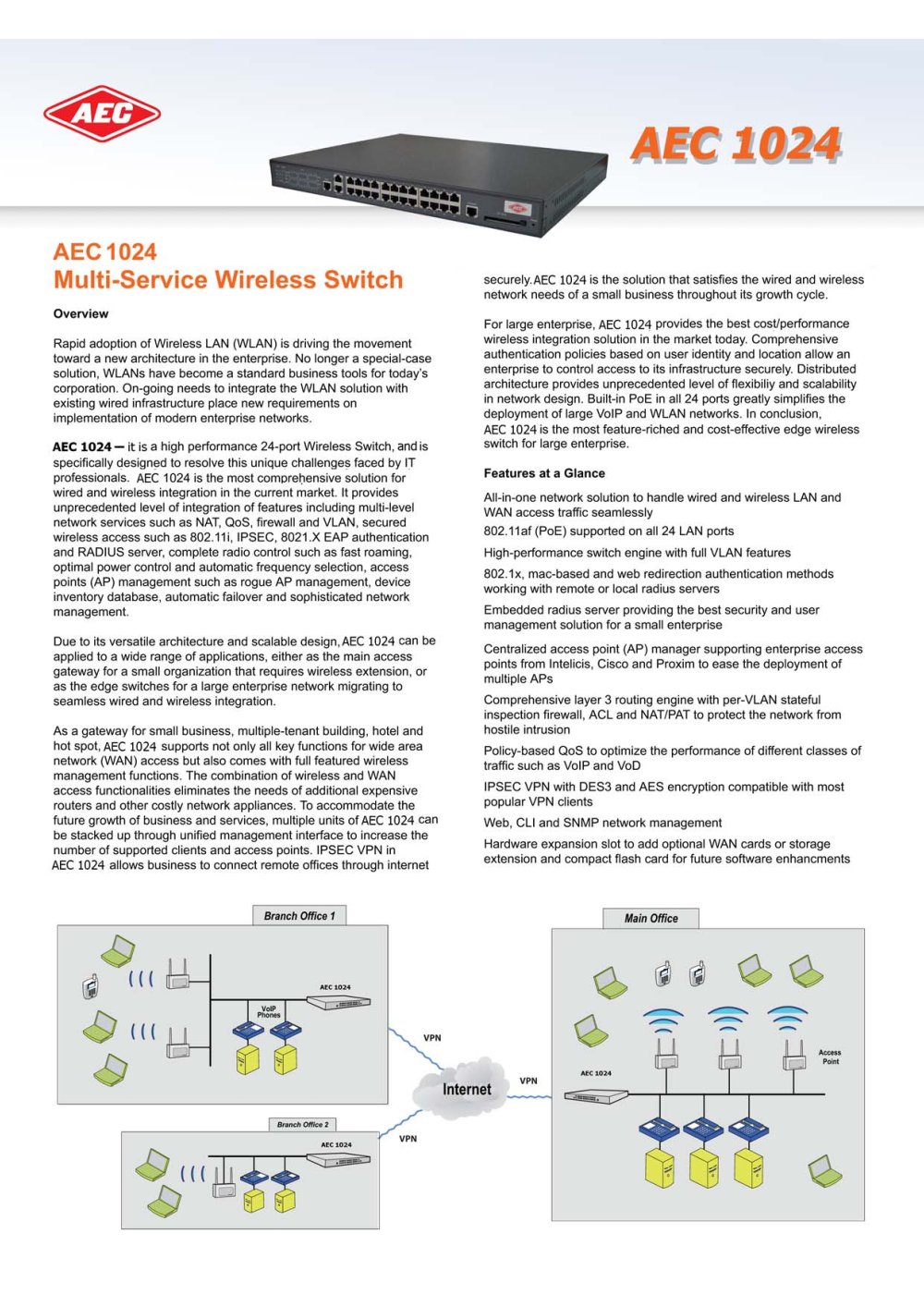

AEC1024_ P2_high revolution.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:7.00pt "Arial", sans-serif; } .font1 { font:13.00pt "Arial", sans-serif; } .font2 { font:10.00pt "Times New Roman", serif; } .font3 { font:14.00pt "Times New Roman", serif; } .font4 { font:20.00pt "Times New Roman", serif; } C1024 AEC1024 Multi-Service Wireless Switch Overview Rapid adoption of Wireless LAN (WLAN) is driving the movement toward a new architecture in the enterprise. No longer a special-case solution, WLANs have become a standard business tools for today's corporation. On-going needs to intgrale the WLAN solution with existing wired infrastructure place new requirements on implementation of modem enterprise networks. AEC 1024 it is a high performance 24-port Wireless Switch. and is specifically designed to r闩solve this unique challenges faced by IT professionals. AEC 1024 is the most comprehensive solution for wired and wireless intgration in the current market. It provides unprecedented level of intgration of features including multi-level network services such as NAT, QoS, firewall and VLAN, secured wireless access such as 802.11i, IPSEC, 8021.X EAP authentication and RADIUS server, compl驨te radio control such as fast roaming, optimal power control and automatic frequency slection, access points (AP) management such as rogue AP management, device inventory database, automatic failover and sophisticated network management. Due to its versatile architecture and scalable design, AEC 1024 can be applied to a wide range of applications, either as the main access gateway for a small organization that requires wireless extension, or as the edge switches for a large enterprise network migrating to seamless wired and wireless intgration. As a gateway for small business, multiple-tenant building, h驴tel and hot spot, AEC 1024 supports not only ail key functions for wide area network (WAN) access but also cornes with full featured wireless management functions. The combination of wireless and WAN access functionalities limintes the needs of additional expensive routers and other costly network appliances. To accommodate the future growth of business and services, multiple units of AEC 1024 can be stacked up through unified management interface to increase the number of supported clients and access points. IPSEC VPN in AEC 1024 allows business to connect remote offices through internet securely.AEC 1024 is the solution that satisfies the wired and wireless network needs of a small business throughout its growth cycle. For large enterprise, AEC 1024 provides the best cost/performance wireless int颩gration solution in the market today. Comprehensive authentication policies based on user identity and location allow an enterprise to control access to its infrastructure securely. Distributed architecture provides unprecedented level of flexibiliy and scalability in network design. Built-in PoE in ail 24 ports greatly simplifies the deployment of large VoIP and WLAN networks. In conclusion, AEC 1024 is the most feature-riched and cost-effective edge wireless switch for large enterprise. Features at a Glance All-in-one network solution to handle wired and wireless LAN and WAN access traffic seamlessly 802.11af (PoE) supported on ail 24 LAN ports High-performance switch engine with full VLAN features 802.1x, mac-based and web redirection authentication methods working with remote or local radius servers Embedded radius server providing the best security and user management solution for a small enterprise Centralized access point (AP) manager supporting enterprise access points from Intelicis, Cisco and Proxim to ease the deployment of multiple APs Comprehensive layer 3 routing engine with per-VLAN stateful inspection firewall, ACL and NAT/PAT to protect the network from hostile intrusion Policy-based QoS to optimize the performance of diffrent classes of traffic such as VoIP and VoD IPSEC VPN with DES3 and AES encryption compatible with most popular VPN clients Web, CLI and SNMP network management Hardware expansion slot to add optional WAN cards or storage extension and compact flash card for future software enhancments Branch Office 1 | AEC1024 1V^P1^^CS^3 1PhonesI Main Office AccessPoint Internet

AEC1024_ P2_high revolution.pdf table.main {} tr.row {} td.cell {} div.block {} div.paragraph {} .font0 { font:4.00pt "Arial", sans-serif; } .font1 { font:5.00pt "Arial", sans-serif; } .font2 { font:6.00pt "Arial", sans-serif; } .font3 { font:7.00pt "Arial", sans-serif; } .font4 { font:13.00pt "Arial", sans-serif; } .font5 { font:20.00pt "Times New Roman", serif; } Spcifications AEC1024 Network Interface LAN Ethernet Ports 24 IEEE 802.3 10/100BaseT Fast Ethernet ports (RJ-45) Auto negotiation for the rate, duplex and polarity Optional IEEE 802.3af Power over Ethernet Gigabit Ethernet Ports...
