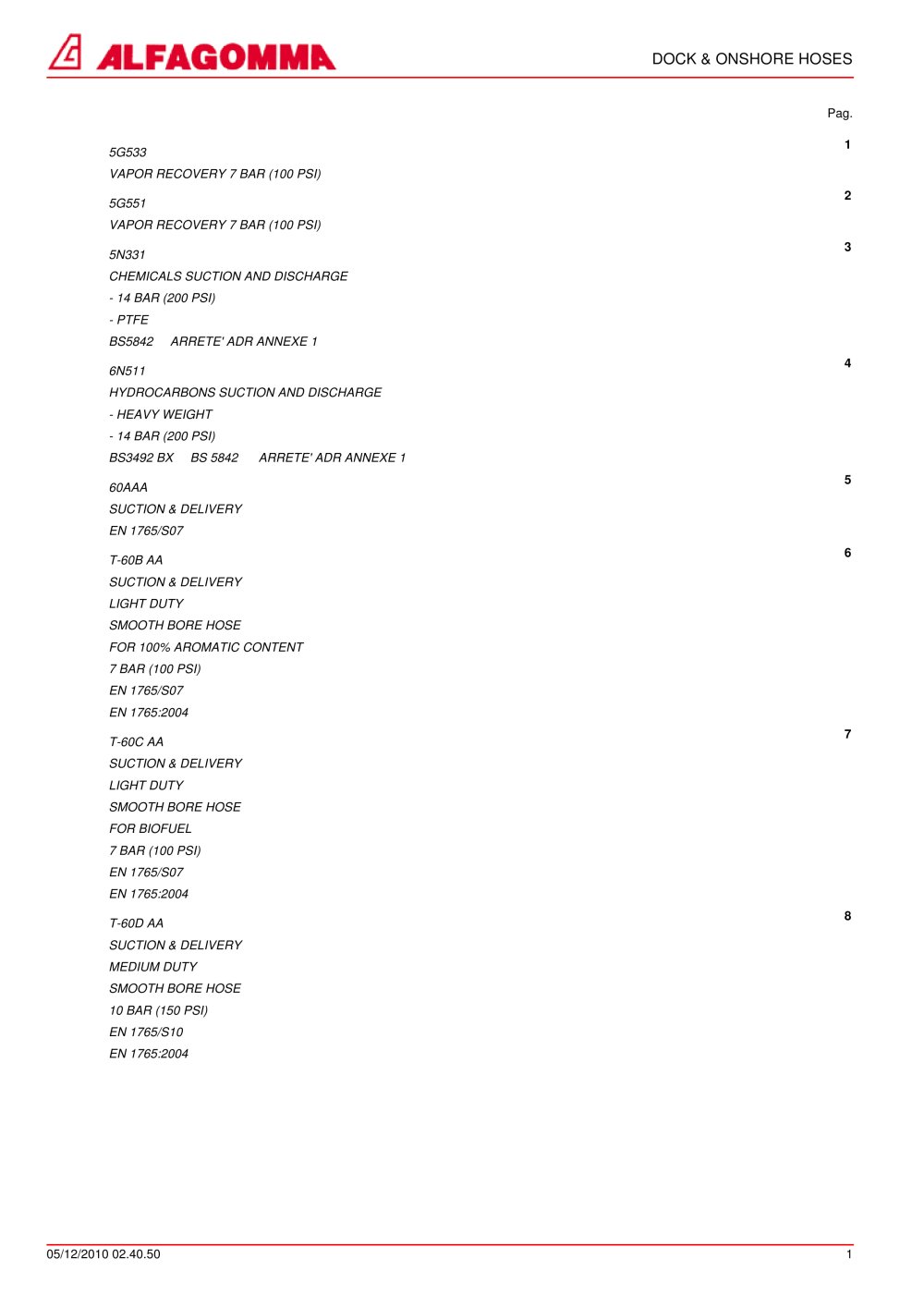

DOCK & ONSHORE HOSES Pag. 1 5G533 VAPOR RECOVERY 7 BAR (100 PSI) 2 5G551 VAPOR RECOVERY 7 BAR (100 PSI) 3 5N331 CHEMICALS SUCTION AND DISCHARGE - 14 BAR (200 PSI) - PTFE BS5842 ARRETE' ADR ANNEXE 1 4 6N511 HYDROCARBONS SUCTION AND DISCHARGE - HEAVY WEIGHT - 14 BAR (200 PSI) BS3492 BX BS 5842 ARRETE' ADR ANNEXE 1 60AAA 5 SUCTION & DELIVERY EN 1765/S07 T-60B AA 6 SUCTION & DELIVERY LIGHT DUTY SMOOTH BORE HOSE FOR 100% AROMATIC CONTENT 7 BAR (100 PSI) EN 1765/S07 EN 1765:2004 T-60C AA 7 SUCTION & DELIVERY LIGHT DUTY SMOOTH BORE HOSE FOR BIOFUEL 7 BAR (100 PSI) EN 1765/S07 EN 1765:2004 T-60D AA 8 SUCTION & DELIVERY MEDIUM DUTY SMOOTH BORE HOSE 10 BAR (150 PSI) EN 1765/S10 EN 1765:2004 05/12/2010 02.40.50 1

DOCK & ONSHORE HOSES Pag. T-60E AA 9 SUCTION & DELIVERY MEDIUM DUTY SMOOTH BORE HOSE FOR 100% AROMATIC CONTENT 10 BAR (150 PSI) EN 1765/S10 EN 1765:2004 T-60F AA 10 SUCTION & DELIVERY MEDIUM DUTY SMOOTH BORE HOSE FOR BIOFUEL 10 BAR (150 PSI) EN 1765/S10 EN 1765:2004 T-60G AA 11 SUCTION & DELIVERY HEAVY DUTY SMOOTH BORE HOSE 15 BAR (225 PSI) EN 1765/S15 EN 1765:2004 T-60H AA 12 SUCTION & DELIVERY HEAVY DUTY SMOOTH BORE HOSE FOR 100% AROMATIC CONTENT 15 BAR (225 PSI) EN 1765/S15 EN 1765:2004 T-60I AA 13 SUCTION & DELIVERY HEAVY DUTY SMOOTH BORE HOSE FOR BIOFUEL 15 BAR (225 PSI) EN 1765/S15 EN 1765:2004...

DOCK & ONSHORE HOSES Pag. T-60J AA 14 SUCTION & DELIVERY EXTRA HEAVY DUTY SMOOTH BORE HOSE 15 BAR (225 PSI) EXCEEDING EN 1765/S15 EN 1765:2004 60LAA 15 FUEL-OIL S&D 7 BAR (100 PSI) EN 1765/S7 T-60M AA 16 SUCTION & DELIVERY MEDIUM DUTY SMOOTH BORE HOSE 10 BAR (150 PSI) EN 1765/S07 EN 1765:2004 T-60N AA 17 SUCTION & DELIVERY HEAVY DUTY SMOOTH BORE HOSE 15 BAR (225 PSI) EN 1765/S15 EN 1765:2004 T-64A AA 18 DISCHARGE ONLY MEDIUM DUTY SMOOTH BORE HOSE 10 BAR (150 PSI) EN 1765/L10 EN 1765:2004 T-64B AA 19 DISCHARGE ONLY MEDIUM DUTY SMOOTH BORE HOSE FOR 100% AROMATIC CONTENT 10 BAR (150 PSI) EN 1765/L10...

DOCK & ONSHORE HOSES Pag. T-64C AA 20 DISCHARGE ONLY MEDIUM DUTY SMOOTH BORE HOSE FOR BIOFUEL 10 BAR (150 PSI) EN 1765/L10 EN 1765:2004 T-64D AA 21 DISCHARGE ONLY HEAVY DUTY SMOOTH BORE HOSE 15 BAR (225 PSI) EN 1765/L15 EN 1765:2004 T-64E AA 22 DISCHARGE ONLY HEAVY DUTY SMOOTH BORE HOSE FOR 100% AROMATIC CONTENT 15 BAR (225 PSI) EN 1765/L15 EN 1765:2004 T-64F AA 23 DISCHARGE ONLY HEAVY DUTY SMOOTH BORE HOSE FOR BIOFUEL 15 BAR (225 PSI) EN 1765/L15 EN 1765:2004 05/12/2010 02.40.58 4

DOCK & ONSHORE HOSES 5G533 VAPOR RECOVERY 7 BAR (100 PSI) INNER WIRE STAINLESS STEEL 316 TUBE POLYPROPYLENE FILM COVER GREEN PVC COATED FABRIC OUTER WIRE STAINLESS STEEL 316 APPLICATION CHEMICALS AND HYDROCARBON VAPOR RECOVERY SERVICE IN MARINE ENVIRONMENT SAFETY FACTOR 4:1 TEMPERATURE -30°C NOTE ELECTRICAL CONDUCTIVITY SECURED THROUGH THE CONTACT POINT BETWEEN HELIX WIRES AND FITTINGS ID ID +80°C Weight WP WP Vac. BR Available Length Stock Length mm inch g/m 100 4 3800 150 6 200 8 250 10 16000 bar psi mm m m 7 100 400 25 25 7000 7 100 550 20 20 12000 7 100 725 20 20 7 100 900 20 20 05/12/2010...

DOCK & ONSHORE HOSES 5G551 VAPOR RECOVERY 7 BAR (100 PSI) INNER WIRE PP COATED STEEL WIRE TUBE POLYPROPYLENE FILM COVER GREEN PVC COATED FABRIC OUTER WIRE GALVANISED STEEL WIRE APPLICATION CHEMICALS AND HYDROCARBON VAPOR RECOVERY SERVICE IN MARINE ENVIRONMENT SAFETY FACTOR 4:1 TEMPERATURE -30°C NOTE ELECTRICAL CONDUCTIVITY SECURED THROUGH THE CONTACT POINT BETWEEN HELIX WIRES AND FITTINGS ID ID +80°C Weight WP WP Vac. BR Available Length Stock Length mm inch g/m 100 4 3800 150 6 200 8 250 10 16000 bar psi mm m m 7 100 400 25 25 7000 7 100 550 20 20 12000 7 100 725 20 20 7 100 900 20 20 05/12/2010...

DOCK & ONSHORE HOSES 5N331 CHEMICALS SUCTION AND DISCHARGE - 14 BAR (200 PSI) - PTFE BS5842 ARRETE' ADR ANNEXE 1 INNER WIRE STAINLESS STEEL WIRE TUBE PTFE FILM COVER RED PVC COATED FABRIC OUTER WIRE GALVANISED STEEL WIRE APPLICATION ACIDS, CHEMICALS, FUEL AND SOLVENTS SUCTION AND DELIVERY. SPECIALLY DESIGNED FOR LONG LASTING SERVICE IN ROAD TANKER DISCHARGE AND BUNKERING APPLICATIONS WHERE RESISTANCE TO HIGH TEMPERATURE IS REQUIRED SAFETY FACTOR 4:1 TEMPERATURE -30°C NOTE ELECTRICAL CONDUCTIVITY SECURED THROUGH THE CONTACT POINT BETWEEN HELIX WIRES AND FITTINGS ID ID mm inch Weight WP g/m bar...

DOCK & ONSHORE HOSES 6N511 HYDROCARBONS SUCTION AND DISCHARGE - HEAVY WEIGHT - 14 BAR (200 PSI) BS3492 BX BS 5842 ARRETE' ADR ANNEXE 1 INNER WIRE GALVANISED STEEL WIRE TUBE POLYPROPYLENE FILM COVER BLUE PVC COATED FABRIC OUTER WIRE GALVANISED STEEL WIRE APPLICATION FUEL AND OIL SUCTION AND DELIVERY. SPECIALLY DESIGNED FOR LONG LASTING SERVICE IN BUNKERING APPLICATIONS SAFETY FACTOR 4:1 TEMPERATURE -30°C NOTE ELECTRICAL CONDUCTIVITY SECURED THROUGH THE CONTACT POINT BETWEEN HELIX WIRES AND FITTINGS ID ID Weight WP mm inch g/m bar 100 4 7400 150 6 200 8 250 10 ID 250mm 4.8:1 +80°C WP Vac. BR Available...

DOCK & ONSHORE HOSES 60AAA SUCTION & DELIVERY EN 1765/S07 TUBE BLACK NBR - FUEL AND OIL RESISTANT REINFORCEMENT HIGH TENSILE TEXTILE CORDS WITH EMBEDDED STEEL HELIX WIRE COVER BLACK CR - ABRASION, OZONE, SALT WATER AND HYDROCARBON RESISTANT APPLICATION FUEL AND OIL TRANSFER WITH UP TO 55% MAX AROMATIC CONTENT IN ONSHORE AND OFFSHORE APPLICATIONS TEMPERATURE -20°C +82°C (-4°F +180°F) SAFETY FACTOR 4:1 TEMPORAY <= 2.5% AT 7 BAR (100 PSI) ELONGATION AT FACTORY TEST PRESSURE PERMANENT <=0.5 AFTER HYDROSTATIC TEST ELONGATION BRAND TEXT ALFAGOMMA-ITALY-T60A 7 BAR (100 PSI) DOCK HOSE EN 1765/S07 - dia...

DOCK & ONSHORE HOSES T-60B AA SUCTION & DELIVERY LIGHT DUTY SMOOTH BORE HOSE FOR 100% AROMATIC CONTENT 7 BAR (100 PSI) EN 1765/S07 EN 1765:2004 TUBE SPECIALLY COMPOUNDED FLUOROELASTOMERIC RUBBER REINFORCEMENT HIGH TENSILE TEXTILE CORDS WITH EMBEDDED STEEL HELIX WIRE COVER BLACK CR - ABRASION, OZONE, SALT WATER AND HYDROCARBON RESISTANT APPLICATION FUEL AND OIL TRANSFER WITH UP TO 100% AROMATIC CONTENT IN ONSHORE AND OFFSHORE APPLICATIONS TEMPERATURE -20°C +82°C (-4°F +180°F) LENGTHS * ANY LENGTH UP TO 12.25m / 40 FEET END FITTINGS BUILT-IN FLANGED NIPPLES SCREWED ON CUSTOMER REQUIREMENT ELECTRICALLY...
