- TS20 - Plate heat exchanger
TS20 - Plate heat exchanger
1 /2Pages
TS20 - Plate heat exchanger
1 /2Pages
Catalog excerpts

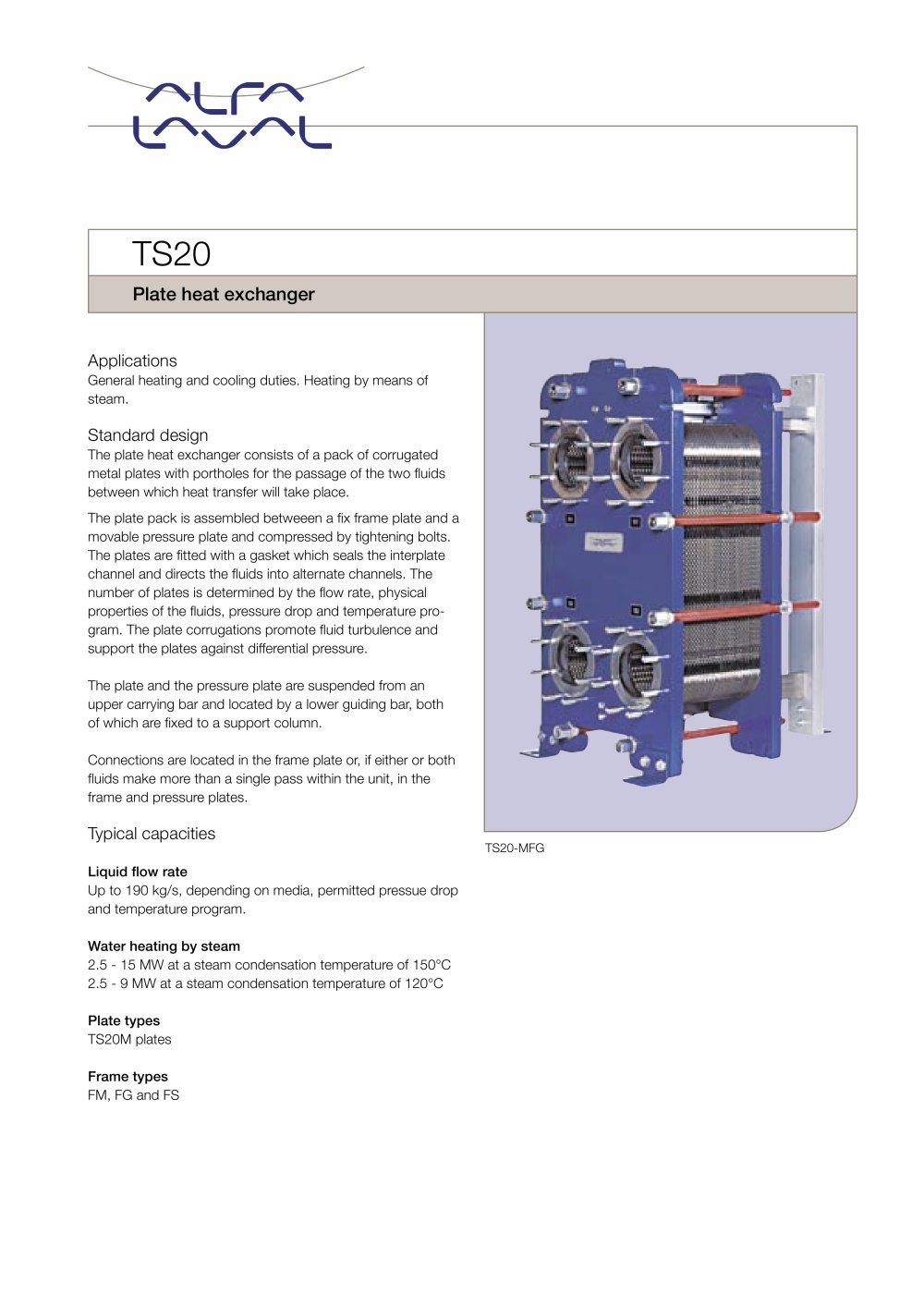

TS20 TS20-MFG Plate heat exchanger Applications General heating and cooling duties. Heating by means of steam. Standard design The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled betweeen a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the interplate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates. Typical capacities Liquid flow rate Up to 190 kg/s, depending on media, permitted pressue drop and temperature program. Water heating by steam 2.5 - 15 MW at a steam condensation temperature of 150°C 2.5 - 9 MW at a steam condensation temperature of 120°C Plate types TS20M plates Frame types FM, FG and FS
Open the catalog to page 1
880-2715 h698H363W EPM00001EN 0503 How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Working principle Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence,...
