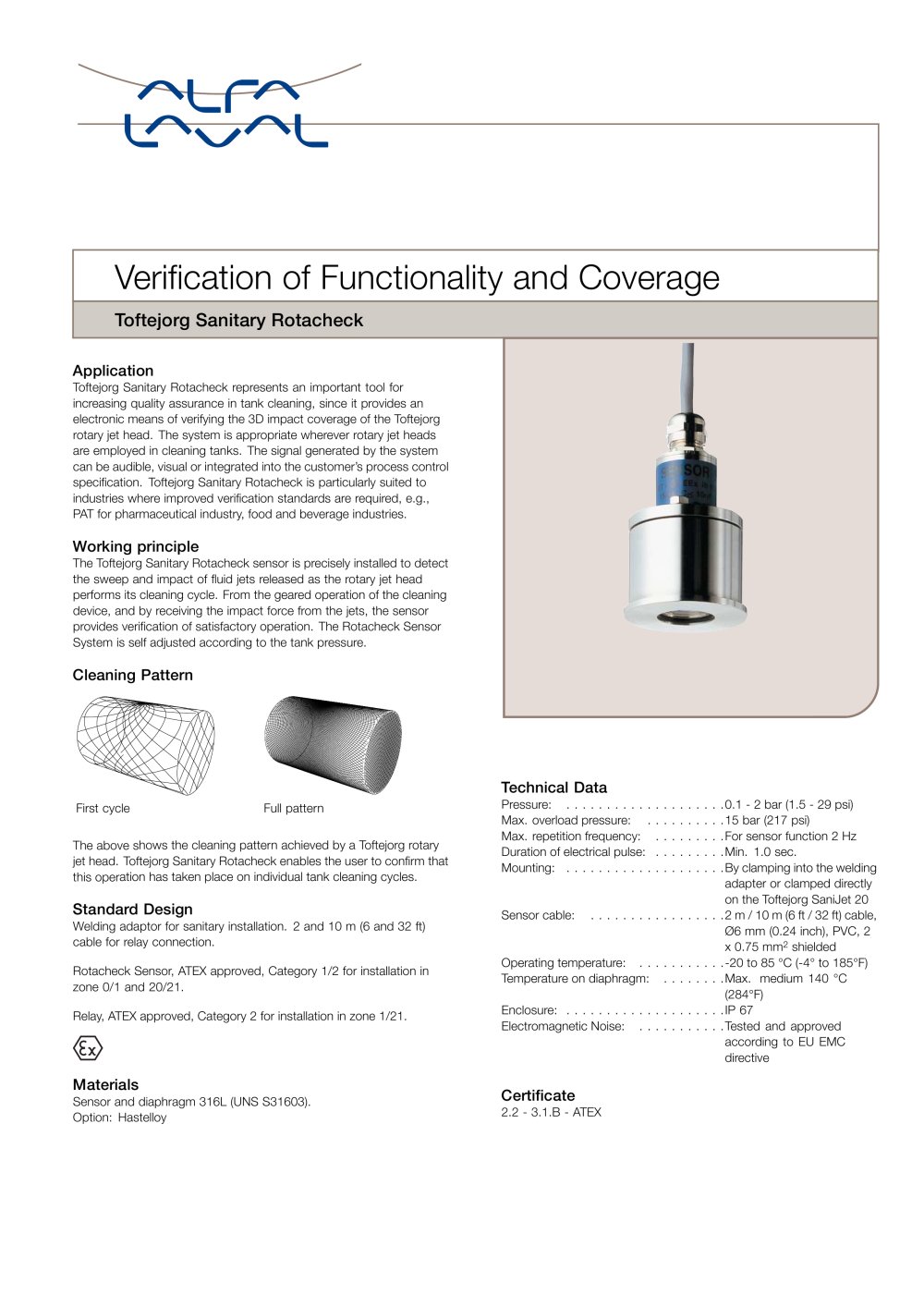

. kyVerification of Functionality and Coverage Toftejorg Sanitary Rotacheck . Application Toftejorg Sanitary Rotacheck represents an important tool for increasing quality assurance in tank cleaning, since it provides an electronic means of verifying the 3D impact coverage of the Toftejorg rotary jet head. The system is appropriate wherever rotary jet heads are employed in cleaning tanks. The signal generated by the system can be audible, visual or integrated into the customer’s process control specification. Toftejorg Sanitary Rotacheck is particularly suited to industries where improved verification standards are required, e.g., PAT for pharmaceutical industry, food and beverage industries. Working principle The Toftejorg Sanitary Rotacheck sensor is precisely installed to detect the sweep and impact of fluid jets released as the rotary jet head performs its cleaning cycle. From the geared operation of the cleaning device, and by receiving the impact force from the jets, the sensor provides verification of satisfactory operation. The Rotacheck Sensor System is self adjusted according to the tank pressure. Cleaning Pattern First cycle Full pattern The above shows the cleaning pattern achieved by a Toftejorg rotary jet head. Toftejorg Sanitary Rotacheck enables the user to confirm that this operation has taken place on individual tank cleaning cycles. Standard Design Welding adaptor for sanitary installation. 2 and 10 m (6 and 32 ft) cable for relay connection. Rotacheck Sensor, ATEX approved, Category 1/2 for installation in zone 0/1 and 20/21. Relay, ATEX approved, Category 2 for installation in zone 1/21. Materials Sensor and diaphragm 316L (UNS S31603). Option: Hastelloy Technical Data Pressure: . . . . . . . . . . . . . . . . . . . .0.1 - 2 bar (1.5 - 29 psi) Max. overload pressure: . . . . . . . . . .15 bar (217 psi) Max. repetition frequency: . . . . . . . . .For sensor function 2 Hz Duration of electrical pulse: . . . . . . . . .Min. 1.0 sec. Mounting: . . . . . . . . . . . . . . . . . . . .By clamping into thewelding adapter or clamped directly on the Toftejorg SaniJet 20 Sensor cable: . . . . . . . . . . . . . . . . .2m/ 10m(6 ft / 32 ft) cable, Ø6 mm (0.24 inch), PVC, 2 x 0.75 mm2 shielded Operating temperature: . . . . . . . . . . .-20 to 85 °C (-4° to 185°F) Temperature on diaphragm: . . . . . . . .Max. medium 140 °C (284°F) Enclosure: . . . . . . . . . . . . . . . . . . . .IP 67 Electromagnetic Noise: . . . . . . . . . . .Tested and approved according to EU EMC directive Certificate 2.2 - 3.1.B - ATEX

Open the catalog to page 1

Universal Relay Unit Technical data Supply Voltage: . . . . . . . . . . . . . . . .24 - 115 - 230 V AC * 50 - 60 Hz Power consumption: . . . . . . . . . . . . .Max. 4 VA Enclosure: . . . . . . . . . . . . . . . . . . . .IP 54 Weight: . . . . . . . . . . . . . . . . . . . . .550 g (1.21 lb) Mounting . . . . . . . . . . . . . . . . . . . .By clipping onto a 35 mm standard rail to DIN/EN 50022 or by screw fixing Operating temperature: . . . . . . . . . . .-20° to 85°C (-4° to 185°F) Max. external load, relay: . . . . . . . . . .250 V, 2A AC PLC output: . . . . . . . . . . . . . . . . . .24 V...

Open the catalog to page 2
