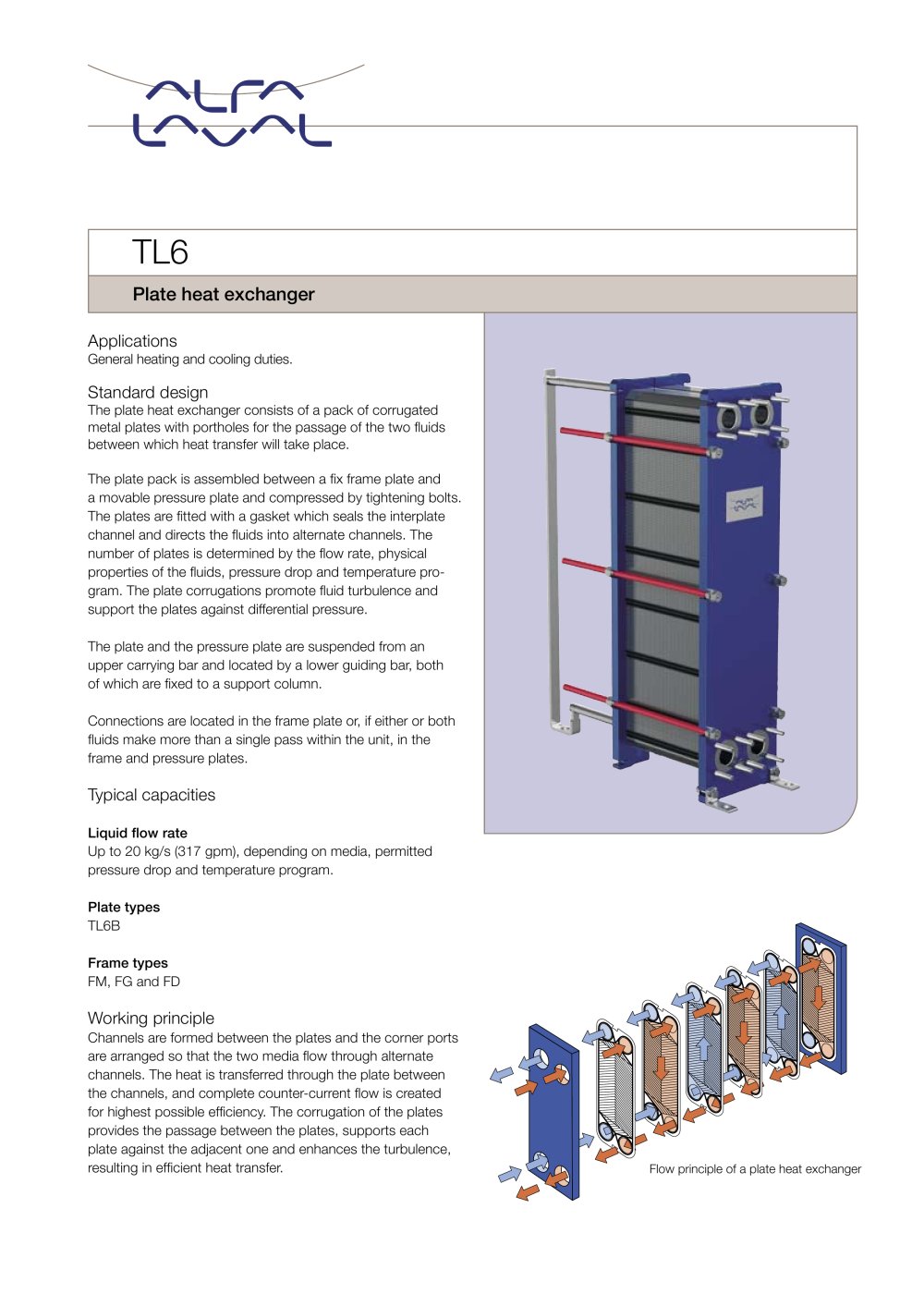

TL6 Flow principle of a plate heat exchanger Plate heat exchanger Applications General heating and cooling duties. Standard design The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the interplate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates. Typical capacities Liquid flow rate Up to 20 kg/s (317 gpm), depending on media, permitted pressure drop and temperature program. Plate types TL6B Frame types FM, FG and FD Working principle Channels are formed between the plates and the corner ports are arranged so that the two media flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer.
Open the catalog to page 1
140 (5,5") W S1 S3 S2 S4 h 1036 (40,8") H 625 - 1690 (24,6" - 66,5") PCT00102EN 0810 STANDARD MATERIALS Frame plate Mild steel, Epoxy painted Nozzles Carbon steel Metal lined: Stainless steel, Titanium Rubber lined: Nitrile, EPDM Pipe: Stainless steel Plates Stainless steel Alloy 316 / Alloy 304 Titanium, Alloy 254 SMO, Alloy C-276 Gaskets Nitrile, EPDM, HeatSeal™, HNBR, Viton®G TECHNICAL DATA Pressure vessel codes, PED, ASME, pvcALS™ Mechanical design pressure (g) / temperature FM pvcALS™ 1.0 MPa / 180ºC FM PED 1.0 MPa / 180ºC FG pvcALS™ 1.6 MPa / 180ºC FG PED 1.6 MPa / 180ºC FG ASME 150 psig...
