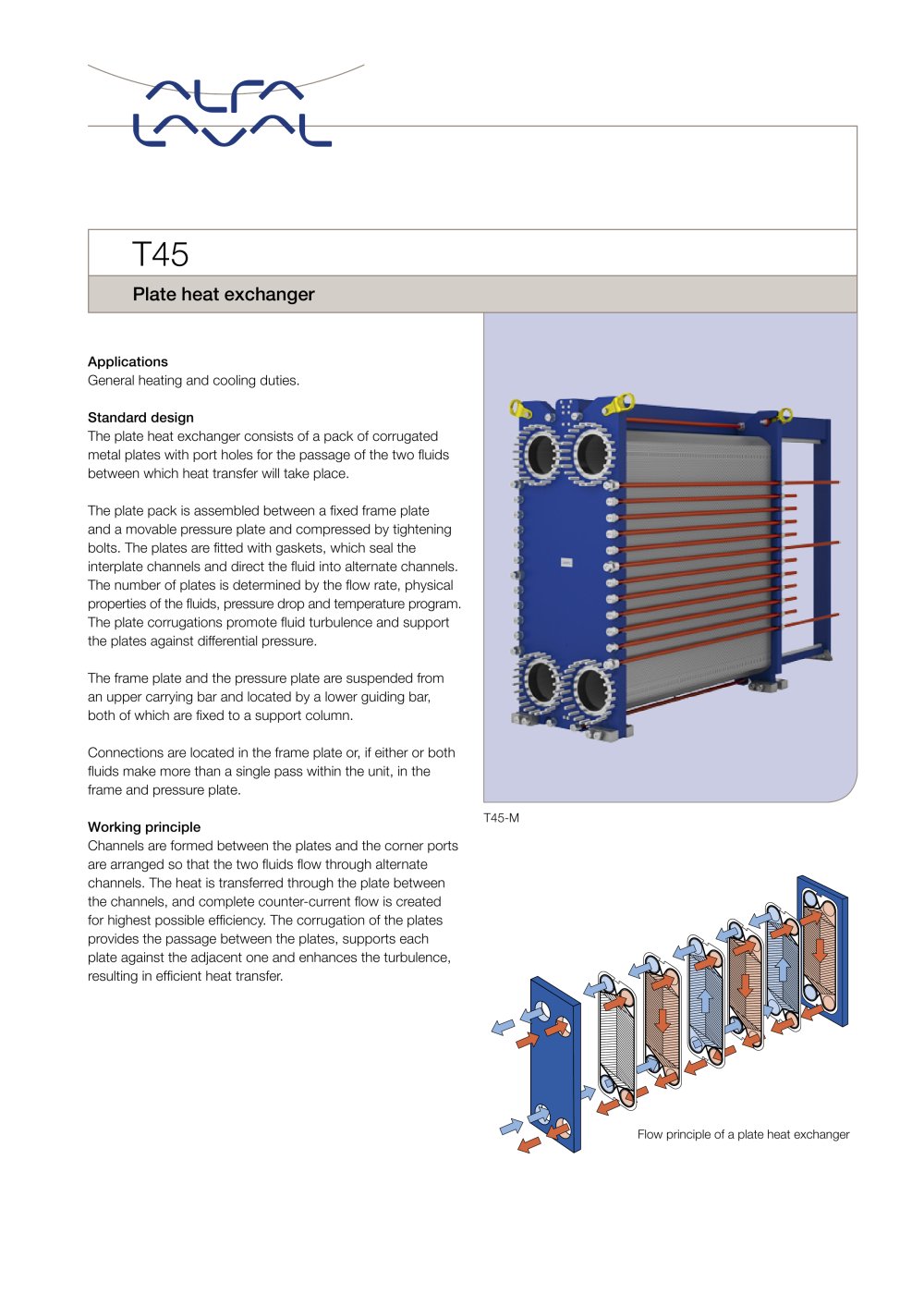

T45 T45-M Plate heat exchanger Applications General heating and cooling duties. Standard design The plate heat exchanger consists of a pack of corrugated metal plates with port holes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fixed frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with gaskets, which seal the interplate channels and direct the fluid into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plate. Working principle Channels are formed between the plates and the corner ports are arranged so that the two fluids flow through alternate channels. The heat is transferred through the plate between the channels, and complete counter-current flow is created for highest possible efficiency. The corrugation of the plates provides the passage between the plates, supports each plate against the adjacent one and enhances the turbulence, resulting in efficient heat transfer. Flow principle of a plate heat exchanger
Open the catalog to page 1
The number of tightening bolts may vary depending on pressure rating. PCT00127EN 1002 How to contact Alfa Laval Up-to-date Alfa Laval contact details for all countries are always available on our website at www.alfalaval.com Stan dard mate rials Frame/pressure plate Mild steel, coated with water-based epoxy paint Nozzles/Connections Carbon steel Metal lined: Stainless steel Alloy 316, Alloy 254, Titanium Plates Stainless steel Alloy 316, Alloy 254, Titanium Other materials may be available on request. Gaskets Nitrile, EPDM Other materials may be available on request. TECHNICAL DATA Design pressure...
